DS-2XC6245G0-L 4 MP Varifocal Underwater Camera

Item Number: 2310111188

Underwater Varifocal Camera

  • 316L Stainless Steel enclosure
  • 3- 9mm varifocal lens
  • H.265+/H.265/H.264+/H.264
  • DarkFighter technology
  • WDR technology
  • IP68
H.264

The DS-2XC6245G0-L 4 MP Varifocal Underwater Camera is equipped for use in areas where professional anti-corrosion protection is a must. The camera has a 316L stainless steel enclosure so it can be used in corrosive environments, providing reliability and longevity compared to standard cameras. It has a IP68 rating which means that the camera can be used underwater up to 50 meters in depth. It has a supplemental white light with a range of up to 10m.

DS-2XC6245G0-L 4 MP Varifocal Underwater Camera

It has a 1/1.8" Progressive Scan CMOS image sensor and a maximum resolution of 2688 x 1520. Additionally, it features a 3 to 9 mm vairfocal lens and supports up to 6 simultaneous live view channels. The network can support up to 32 users with 3 levels of administration (user, operator, and administrator).

Its supports H.265+/H.265/H.264+/H.264 encoding which is an efficient compression technology that saves storage space and reduces bandwidth requirements. It comes with DarkFighter technology that enables the capture of high quality color images in even the dimmest lighting environments. Additionally, the camera features True WDR technology with a WDR of 120 dB providing clear imaging even with strong back lighting.

Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light
Shutter Time 1/3 s to 1/100,000 s
Lens
Lens Type Varifocal lens, 3 to 9 mm
Focal Length & FOV 3 to 9 mm, horizontal FOV 87° to 45.8°, vertical FOV 46° to 25.6°, diagonal FOV 104° to 52.4°
Aperture F1.0
DORI
DORI Wide: D: 55.2 m, O: 21.9 m, R: 11.0 m, I: 5.5 m
Tele: D: 124.1 m, O: 49.3 m, R: 24.8 m, I: 12.4 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 10 m
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for each stream
Target Cropping Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI, ISUP 5.0
User/Host Up to 32 users
3 levels: Administrator, Operator, User
Network Storage NAS (NFS, SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, HLC, 3D DNR, defog
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection, unattended baggage detection, object removal detection
General
Power 36 VDC ± 20%, 0.6 A, max. 17 W, two-core terminal block
PoE (802.3.at, Class 3, 42.5 V to 57 V), 0.45 A to 0.3 A, 17 W
Material SUS 316L Metal
Dimensions 210 mm × 210 mm × 205 mm
Package Dimensions 700 mm × 530 mm × 365 mm
Weight Approx. 12 kg
With Package Weight Approx. 16 kg
Startup and Operating Conditions -30 °C to 60 °C. Humidity 100% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat, password protection, privacy mask, watermark, IP address filter, mirror
Cable Length 50 m (included)
Approval
EMC FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015
IC: IC-VoC (ICES-003 Issue 7:2020)
KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14(2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
Safety UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014
CB: IEC 62368-1:2014
BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015
LOA: SANS IEC60950-1
Protection IP68 (IEC 60529-2013)

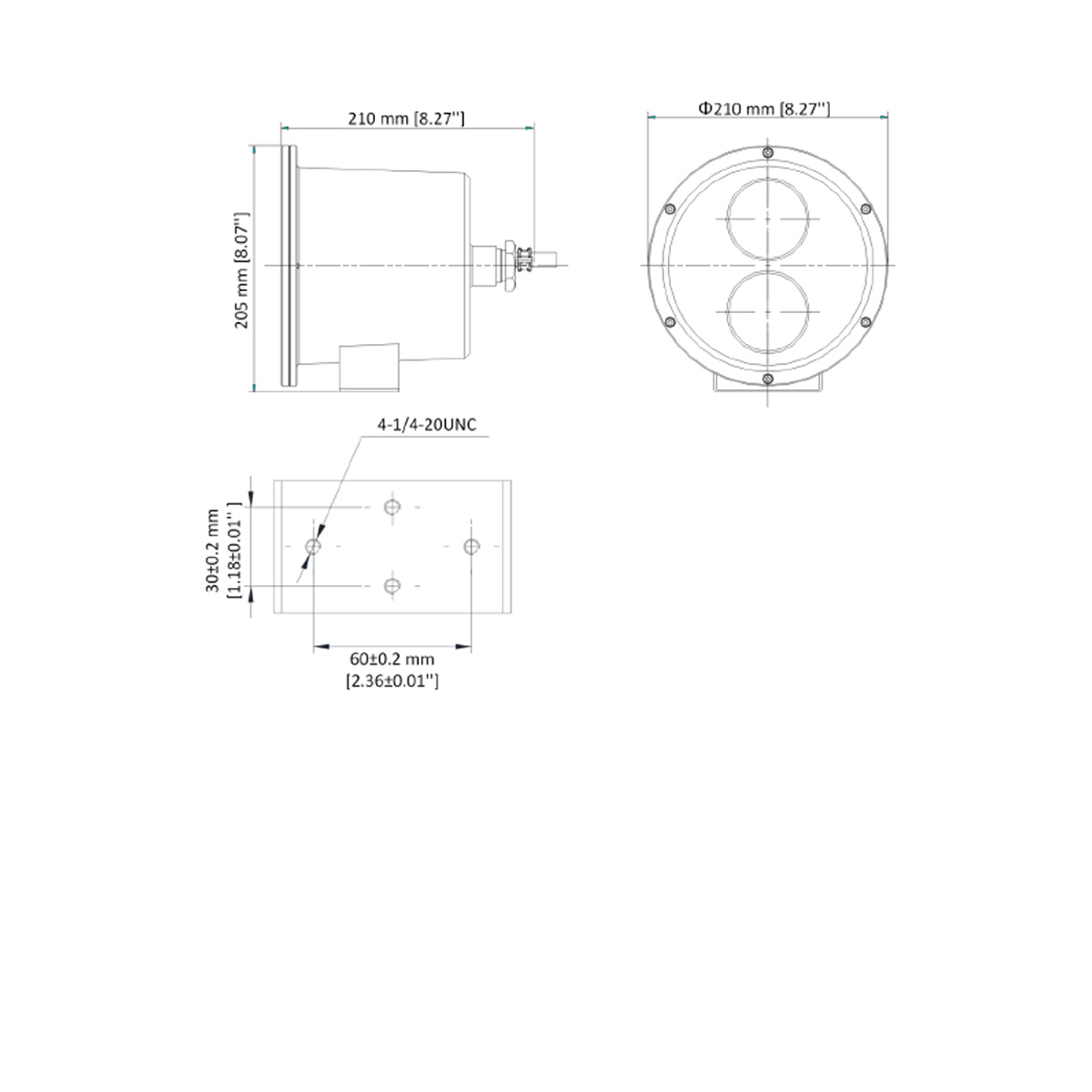

Dimensional Drawing DS-2XC6245GO-L 4 MP Underwater Varifocal Camera
