EMMAR-1H

Item Number: 1023533011

Handheld Microphone for Exigo ECPIR Indoor Access Panels

This product has been replaced by the PAM1H Handheld Microphone.

  • Handheld microphone for Exigo ECPIR access panels
  • Stainless steel bracket included
  • Push-To-Talk button
  • 3-meter curly cord
  • Equipped with locking DIN plug
  • High quality digital background noise reduction


The EMMAR-1H handheld microphone is designed for indoor use. The microphone is used on all Exigo ECPIR access panels and features a PTT button. When connected to an Exigo access panel, the microphone is fully monitored. Failure of the microphone element or an open/short circuit will be detected and reported by the system.

ITEM NUMBER DESCRIPTION
1023533011 EMMAR-1H Handheld Microphone w/PTT, Indoor
MECHANICAL

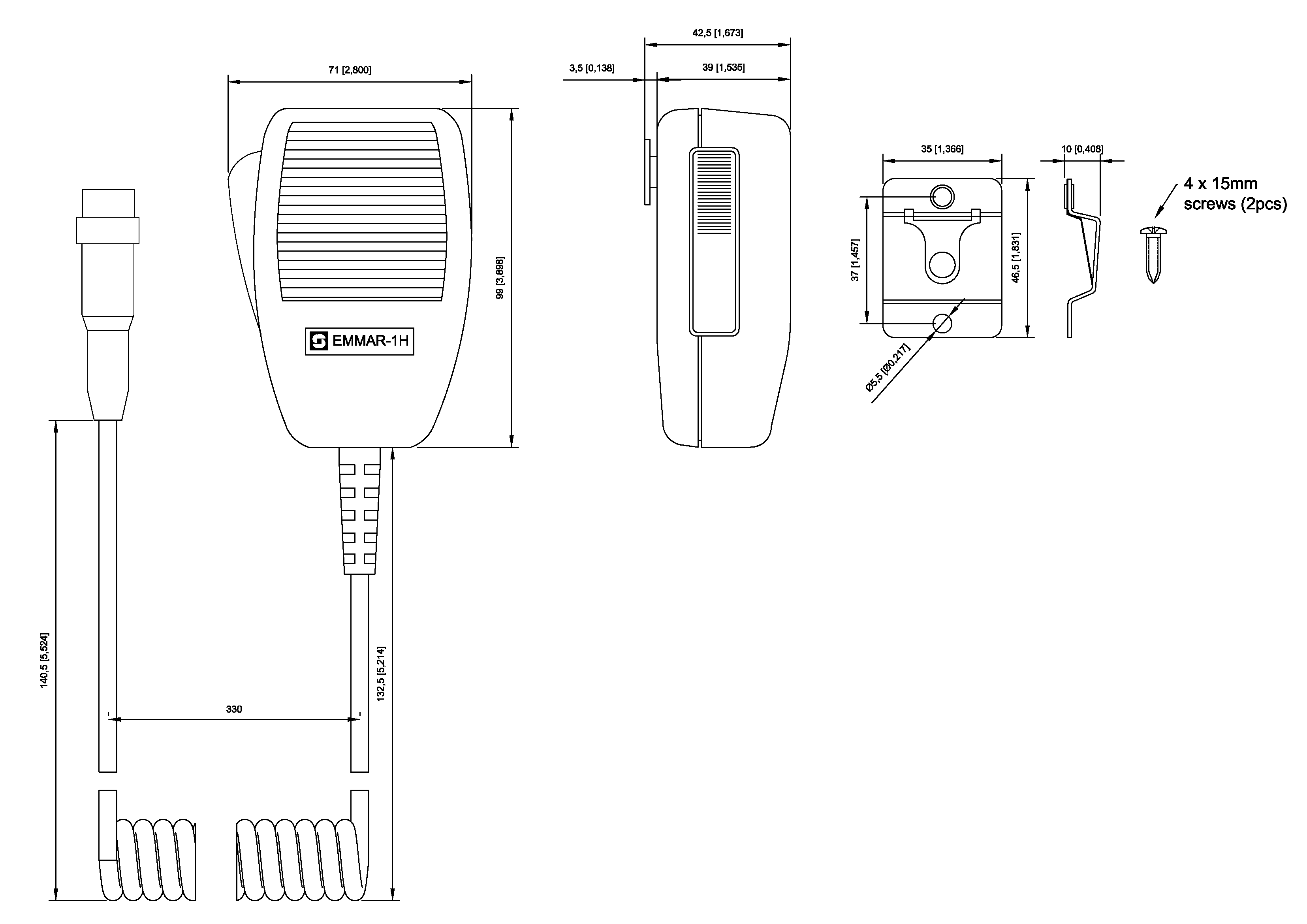

Dimensions (WxHxD) 71 x 99 x 39
Weight 0.3 kg
Cable length 3 meters
Material Black plastic housing
Bracket Included
ELECTRICAL
Microphone Electret and Noise Cancelling
Output Voltage (1 kHz, 25 °C) 40mV min. - 100mV max.
Resistance 50 ohm
ENVIRONMENTAL
Operating Temperature -30 °C to +60 °C
Storage Temperature -40 °C to +80 °C
Humidity 10% to 95% (non-condensing)
IP rating IP-32
COMPATIBLE EQUIPMENT
Exigo Indoor panels ECPIR access panels
