Factory Entertainment System - 3 channels

Item Number: 1021010030

FES-3

  • TURN KEY SOLUTION
  • FM Frequency Range 76-108 MHz (selectable per channel in front)
  • Transmitter output power: 0.1/0.5W
  • Safe signal range ≤ 1000m
  • PA override
  • PA failsafe operation
  • Easy installation – no programming
  • 3 selectable channels
  • Large AC power input range



The Factory Entertainment System, FES-3, is an FM-based wireless entertainment system designed for marine factories, including fish factory vessels. Operating on three selectable commercial FM channels, the system is also equipped with interfaces to an Intercom/PAGA system for PA messages and General Alarm override. Offering flexibility, it can connect to various entertainment sources like IPTV, DVD, MP3, or any user-preferred audio source. The FM transmitters, with limited power, cover expansive indoor areas without interfering with normal commercial broadcasting. Users benefit from the choice of frequencies, avoiding commercial broadcasting frequencies.

Recommended for use are Ear Protective Headphones with built-in FM receivers, serving dual purposes by safeguarding hearing from damaging noise and offering a selection of entertainment channels. The system's PA/Alarm override functionality ensures workers hear crucial alarms and emergency messages—a regulatory requirement on marine vessels.

Key features:

  • A free choice of entertainment sources (3 pcs) – project dependent
  • FM Radio transmitters/FM radio distribution (3 pcs)
  • Interface to Intercom/PA messages/Alarms (intrusion)
  • FM Radio Headsets/hearing protection (unlimited)
GENERAL
Stereo distribution
Power input: 110V-230VAC- 50-60Hz (12 VDC internally)
Power requirement – 50W (max)
Channels: 3 (Entertainment / FM)
Entertainment sources: Any / 0dBm
PA / Alarm override (0dBm + NC Closing contact
PA / Alarm failsafe operation
Compass Safe Distance: > 5m
FM TRANSMISSION
FM transmitter range 76-108 MHz (selectable per channel – access from front)
Frequency stability ≤ 10 PPM
Transmitter output power (per channel) 0.1 / 0.5W
Signal to Noise Ratio (SNR) ≤ 60dB
Frequency response 50 Hz - 15 kHz
Output impedance 50 Ω
Transmitter range ≈ 1000m (open air)
Recommended Coax cable (innstallation) RG 58 (50 Ω)
Coax connectors (installation) - Anenna side TNC style male (not included)
Coax Cunnector (Installation) - FES-3 side BNC style male (not included)
MECHANICAL
Dimensions (WxHxD) 483 x 89 x 440 mm
Mounting 19" - 2U (Rack)
Weight 3.5 kg

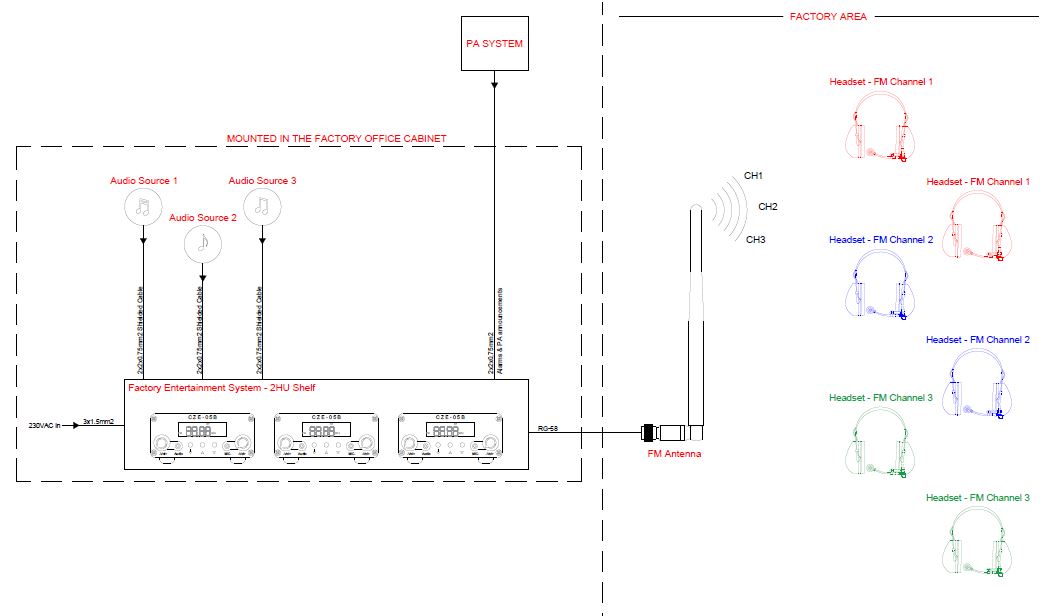

FES-3 Functional Diagram

FES-3 Dimensions
