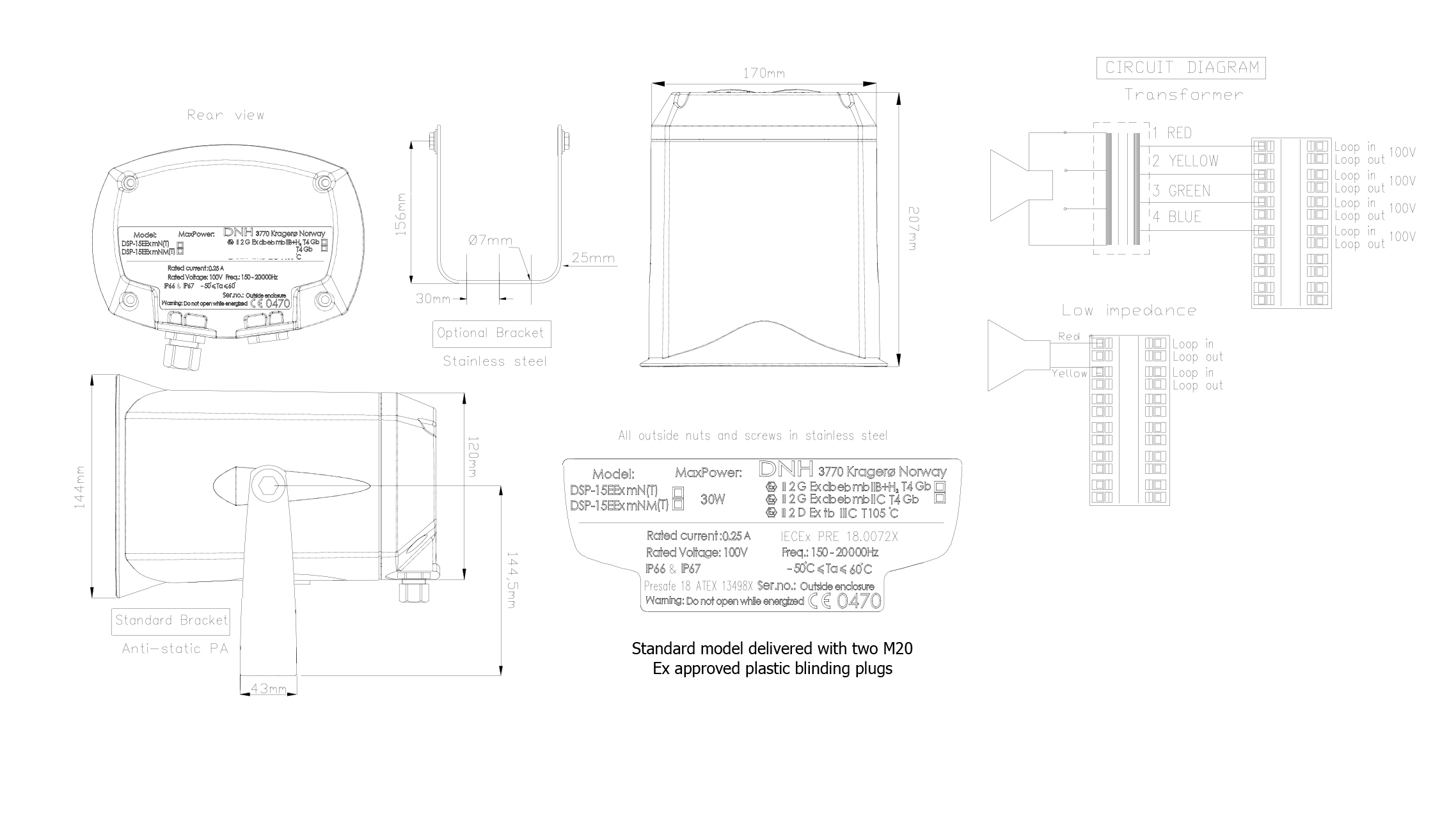

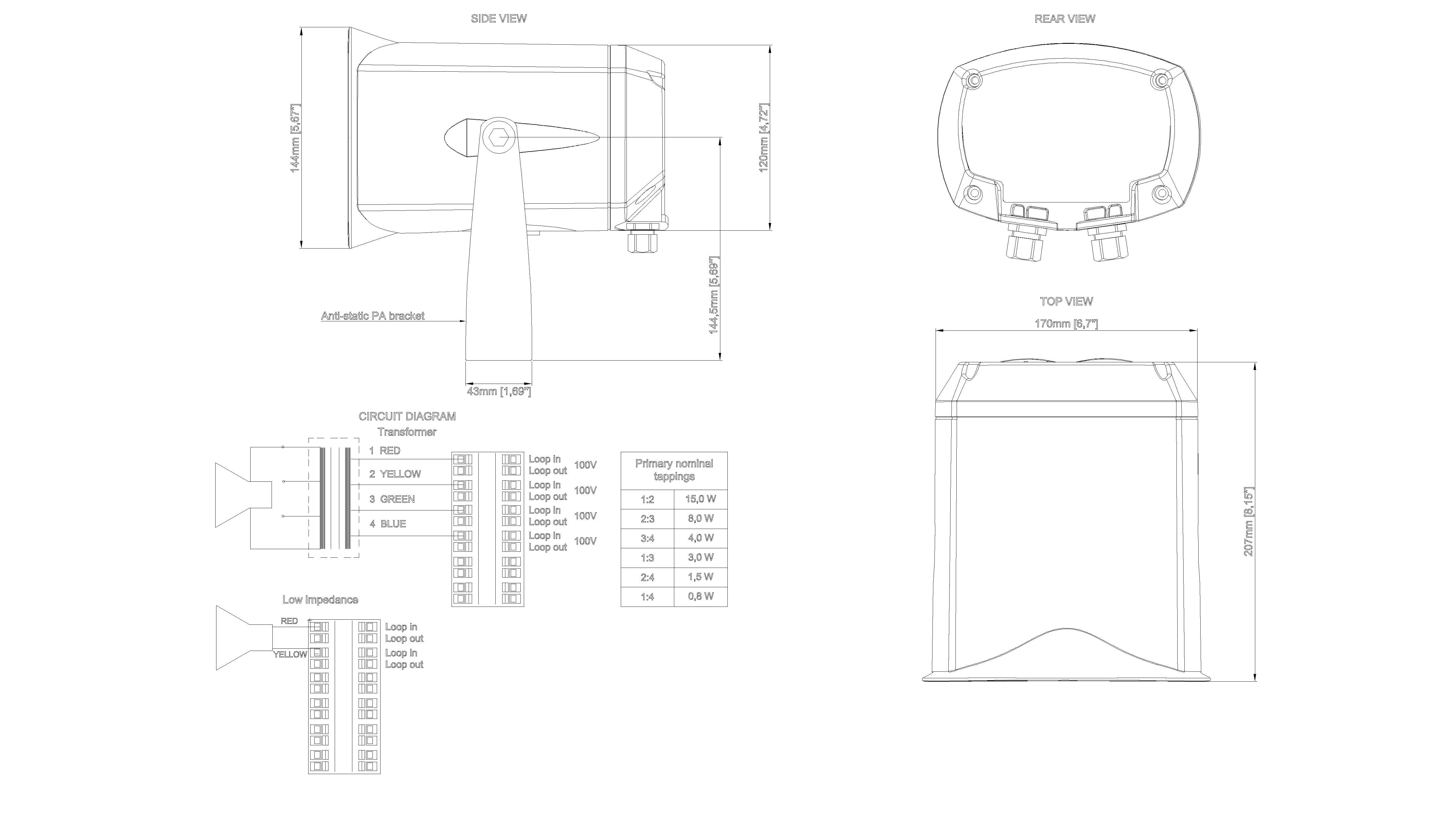

DSP-15EEXMN

Ex horn speaker, EEx dem IIB + H2 T4, 2x glands

Item Number: 2340020025

Ex horn speaker, EEx dem IIB + H2 T4, 2x glands

  • 15W
  • 2x plastic M20 cable glands (11-14mm)
  • Tappings: 0.8W - 1.5W - 3W - 4W - 8W - 15W
  • Ex db eb mb IIB+H2 T4 Gb
  • Ex tb IIIC T105°C Db
IP66 IP66
IP67 IP67
IEC Ex IEC Ex Intercom
Atex

Versatile explosion-proof horn speaker perfectly suited for industrial or maritime environments. Antistatic plastic housing ensures a rugged, yet light-weight construction.

  • With a 100V line transformer
  • Rated/max. power: 15W
  • Tappings: 0.8W - 1.5W - 3.0W - 4.0W - 8.0W - 15.0W
  • Material: Antistatic PA / Black
  • Bracket and all outside nuts and screws in stainless steel

When mounting the loudspeaker please ensure that it is re-assembled in the same manner in which it was received.

  •  Fasten bracket with 1-3 screws.
  •  To change the position of the loudspeaker, please adjust the standard U- bracket (by loosening/tightening the screws) as required.
  • For optimum performance, always use the correct voltage/power and operate within the frequency limits as stated.
  •  Use only certified/specified cable glands and blanking plugs.
  •  Do not open the loudspeaker when energized.
  • Fasten the lid with a torque of 2 - 3 Nm



General
Material / Color Anti-static PA / Black
Mounting Bracket
Termination e-chamber, push terminals
Weight w/ transformer 2,2 kg
IP-rating IP-66/67
Max / min amb temp. 50°C / -50°C
Rated / max. power 15 W / 30 W
SPL 1W/1m 105 dB
SPL rated power 116 dB
Effective freq range 380-7000 Hz
Dispersion (-6dB) 1kHz / 4kHz 200° / 50°
Directivity factor, Q (1kHz) 1,8
Fuse Thermal fuse- 84°C, 2x Short-circuit protection fuses
Environmental Condition Exposed
