B400-24O_Rotating_Beacon_24VDC_Orange

B400-24O - Rotating Beacon 24VDC, Orange

Item Number: 1016544

Rotary Light 24VDC

  • High-intensity 35W halogen rotary light delivering up to 1,204 cd for maximum visibility
  • UV-stable, fire-retardant polycarbonate housing
  • Anti-tamper locking screw & stainless steel fixings
  • IP65 rated protection
  • Flexible mounting options – surface mount, right-angle bracket or pole mount
  • Compatible with Zenitel TFIE and other industrial telephones/intercoms
  • Available in red, blue, green and clear coloured lenses - see specification TAB







The B400RTH Rotating Beacon is a high-performance visual signaling device designed to provide clear visual call indication in noisy or semi-outdoor environments, where audible alerts may not always be noticed. With a powerful 35W halogen light source delivering up to 1,204 candelas, the beacon incorporates a parabolic reflecting mirror that creates a focused beam of light, maximizing visibility and visual effectiveness.

This device is commonly used together with Zenitel TFIE industrial telephones, as well as other analog or IP telephones and intercom stations, to ensure that important incoming calls are clearly seen even when sound-based alerts may be missed. The rotating mechanism combined with the focused light beam makes it particularly effective for safety-critical communication and alerting.

The B400RTH features a robust, UV-stable and fire-retardant polycarbonate enclosure with IP65 ingress protection, making it suitable for harsh operating conditions. It is specifically designed for industrial and maritime applications.

Available in multiple voltage options and lens colours, with flexible mounting solutions, the B400RTH provides a reliable and durable visual alert solution for demanding environments.

General
Operating voltage 24 VDC
Light output 35 W halogen lamp G6.35/GY6.35
Current consumption 1.54 A
Peak Candela 1.204 cd
Rotation speed 180RPM (+/-30RPM)
Drive life >5.000 hrs
Duty cycle 100%
Entries 1 × 5-7mm push through grommet / 2 x M20 cable entry
Dimensions W x D x H 140 x 140 x 220 mm
Weight 578 g
IP Rating IP65
Operating temp -25 to +50°C [-13° to +122°F]
Relative humidity 90% at 20°C [68°F]
Order number Description
1016545 B400-24B - Rotating Beacon 24VDC, Blue
1016546 B400-24C - Rotating Beacon 24VDC, Clear
1016547 B400-24G - Rotating Beacon 24VDC, Green
1016548 B400-24R - Rotating Beacon 24VDC, Red

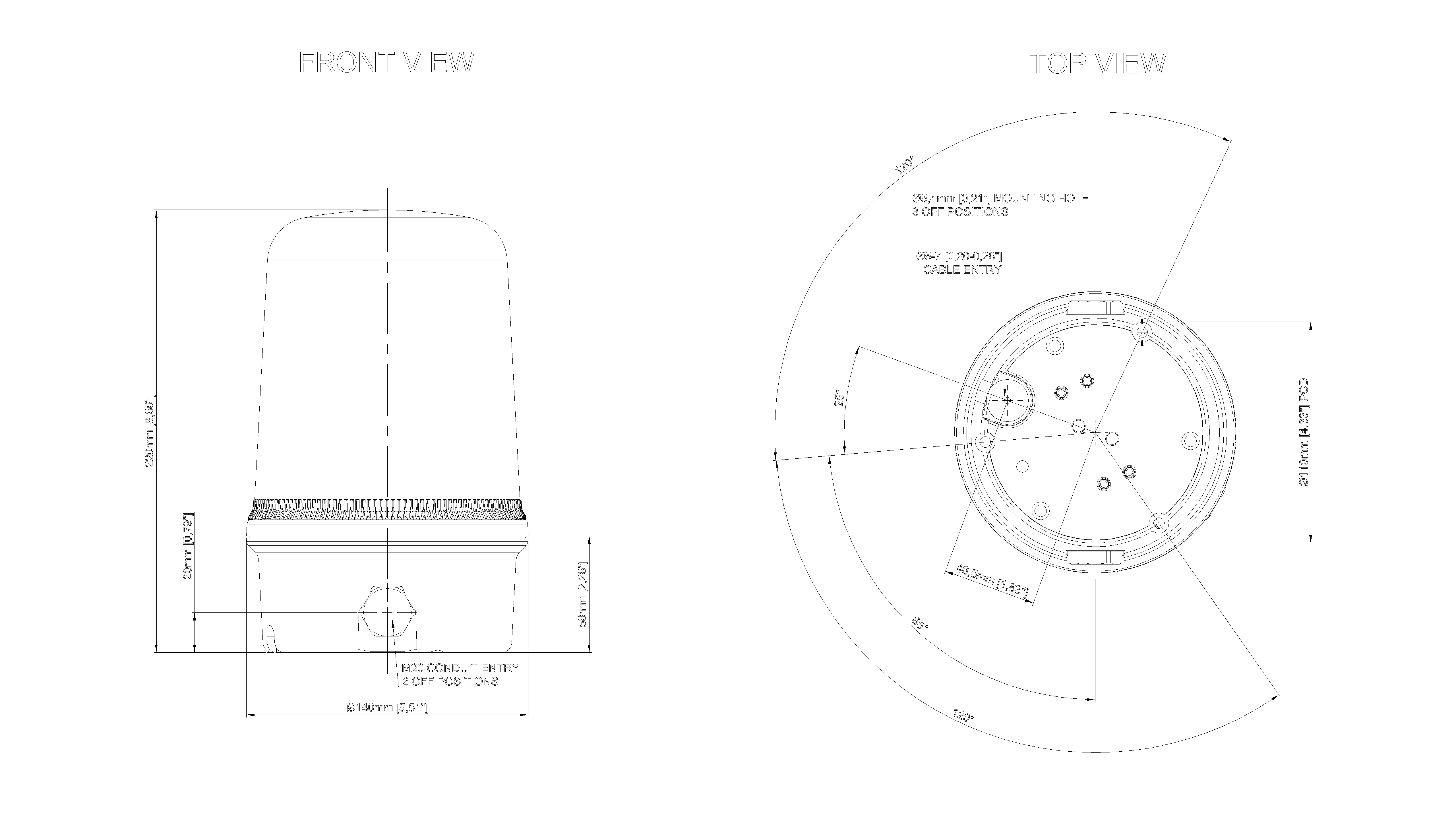

1016544_B400-24O_Rotating_Beacon_24VDC_Orange_Dimensional_Drawing



Date Name Category Size Document
B400RTH_datasheet Datasheet 182.68 KB Download
1016544_B400-24O_Rotating_Beacon_24VDC_Orange CAD 2D 607.71 KB Login to download
