BEX-230R

Item Number: 3006102086

Explosion Proof Xenon Beacon 5 Joule, 230V

IP66 IP66
IP67 IP67
Atex
  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Automatic synchronisation on multi-beacon system
  • Xenon tubes mechanically secured against shock & vibration
  • IP66/IP67 ingress protection
  • 120 candela effective light intensity
  • Lens colour: Red
  • Available lens colours: Amber, Blue, Clear, Green, Yellow and Red

The flameproof BEX-230 Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.

Available options: Voltage: 24V dc, 115V ac, 230V ac

General
Weight 2.75 kg
Energy 5 Joules (5Ws)
Flash rate 1 Hz (60 fpm)
Peak Candela 500,000 cd - calculated from energy (J)
Eff. Intensity cd 250 cd - calculated from energy (J)
Cable entries 2x M20 ISO (One cable gland and one blind plug incl.)
Temperature range -50° to +70°C
Relative humidity 90% at 20°C
Housing material Marine grade LM6 aluminium
Environmental Condition Exposed
Order number Description
3006102016 Beacon Ex BExBG05D 230V AC ATEX IP67 1x cable gland. Lens blue.
3006102015 Beacon Ex BExBG05D 230V AC ATEX IP67 1x cable gland. Lens orange.
3006090474 Beacon Ex BExBG05D 230V AC ATEX IP67 1x cable gland. Lens yellow.
3006102085 Beacon Ex BExBG05D 230V AC ATEX IP67 1x cable gland. Lens green.
3006102086 Beacon Ex BExBG05D 230V AC ATEX IP67 1x cable gland. Lens red.
2340210013 Beacon Ex BExBG05D 230V AC ATEX IP67 1x cable gland. Lens clear.

BEX-24O

Date Name Category Size Document

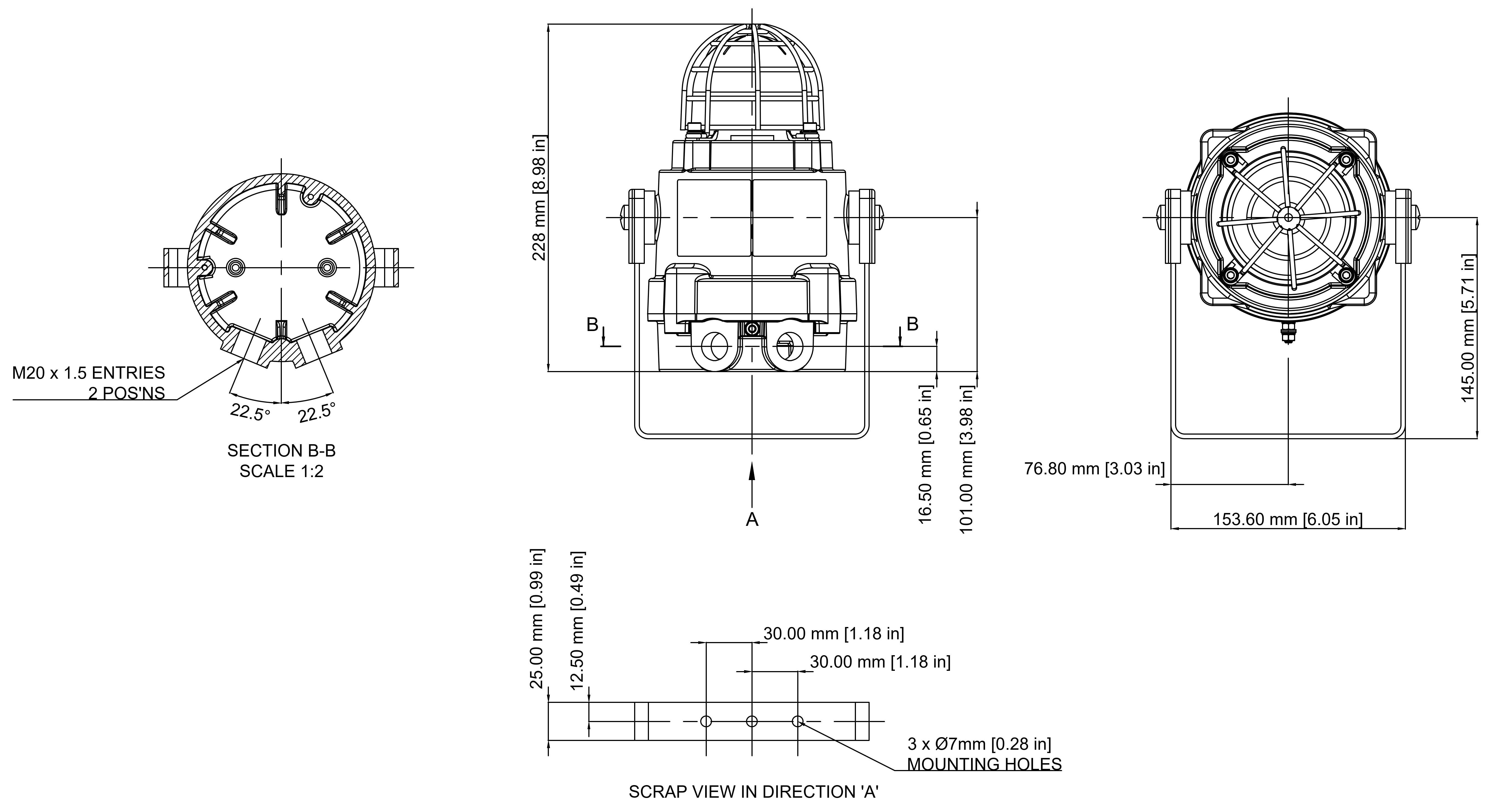

BEX-xxx - Dimensional Drawing CAD 2D 266.71 KB Login to download
MD-SDoC-3006102086-IHM-8003-63565-126664.xlsx Declaration 53.53 KB Login to download
MD-SDoC-3006102016-IHM-8003-63565-126657.xlsx Declaration 53.53 KB Login to download
MD-SDoC-3006102015-IHM-8003-63565-126656.xlsx Declaration 53.53 KB Login to download
MD-SDoC-3006102013-IHM-8003-63565-126654.xlsx Declaration 53.51 KB Login to download
MD-SDoC-3006090474-IHM-8003-63565-126652.xlsx Declaration 53.53 KB Login to download
MD-SDoC-2340210013-IHM-8003-63565-124069.xlsx Declaration 53.51 KB Login to download
