CL-200T-MED

Item Number: 2131000148

6'' Ceiling Speaker 100V, 6W, fire dome

  • MED approved
  • Steel back box to reduce fire risk and spread
  • Spring fasteners and screw holes for vibrating environments
  • Spring fasteners only for non-vibrating environments
  • Adjustable power tapping to accommodate separate room sizes
  • Back box glands increase stability of wire connectivity
  • Supports loop wiring with 2 x M20 back box glands
MED EU Certification icon MED Certification

Zenitel CL-200T-MED is a ceiling speaker designed for tough indoor environments making it great for use in marine settings or other challenging indoor spaces.

This speaker is built to last in harsh conditions. It has a zinc-treated steel grille with a with painted front and fully painted back box.

The CL-200T-MED is made entirely of materials that don't burn easily. The back box glands enhance the speaker and provide extra coverage against dust, humidity, and water. Using both glands facilitates loop-wiring and reduces the need for costly junction boxes

GENERAL
Dimensions (Diameter x depth) 199x101mm
Weight 1,45kg
Mounting Flush mounted – ceiling or wall. Clamps and/or 3 screws (4 mm holes)
Operating temperature range -20 - 90 °C
Fuse Thermal fuse
Rated power 6W
Max power rating 10W
Power tappings 6W – 4W – 2W – 1W
Frequency response 250 Hz - 20 KHz
Sensitivity 90 dB ± 3dB, 1W/1M
Maximum SPL 98 dB
SPL 1W / 1m 92 dB
Color RAL 9010
Glands 2xM20
IP rating (from front side only) IP 44 (when installed in a flat horizontal roof)
Environmental Condition Protected
Compass Safe Distance 160 cm

Installation and operation:

  1. 1. Mount cable through cable gland and connect cable leads to 100V line in + - terminals
  2. 2. Select required loudspeaker tapping with red cable on the transformer
  3. 3. Fasten the back box onto front of loudspeaker
  4. 4. Fasten cable gland(s) and ensure the cable leads are not placing strain on the terminals.
  5. 5. Place the loudspeaker in front of ceiling cut-out. Hold the fastening spring clamps aligned with back box and push loudspeaker into correct position. Make sure front grille is surface with ceiling for correct mounting. This loudspeaker can also be mounted with screws in front grille
  6. 6. Once installed the loudspeaker can be used



Maintenance:

  1. 1. No scheduled maintenance is required
  2. 2. For any kind of maintenance secure loudspeaker is not energized
  3. 3. Loudspeaker is equipped with fuse. If fuse broken pull out loudspeaker from ceiling and remove back box from front loudspeaker to access

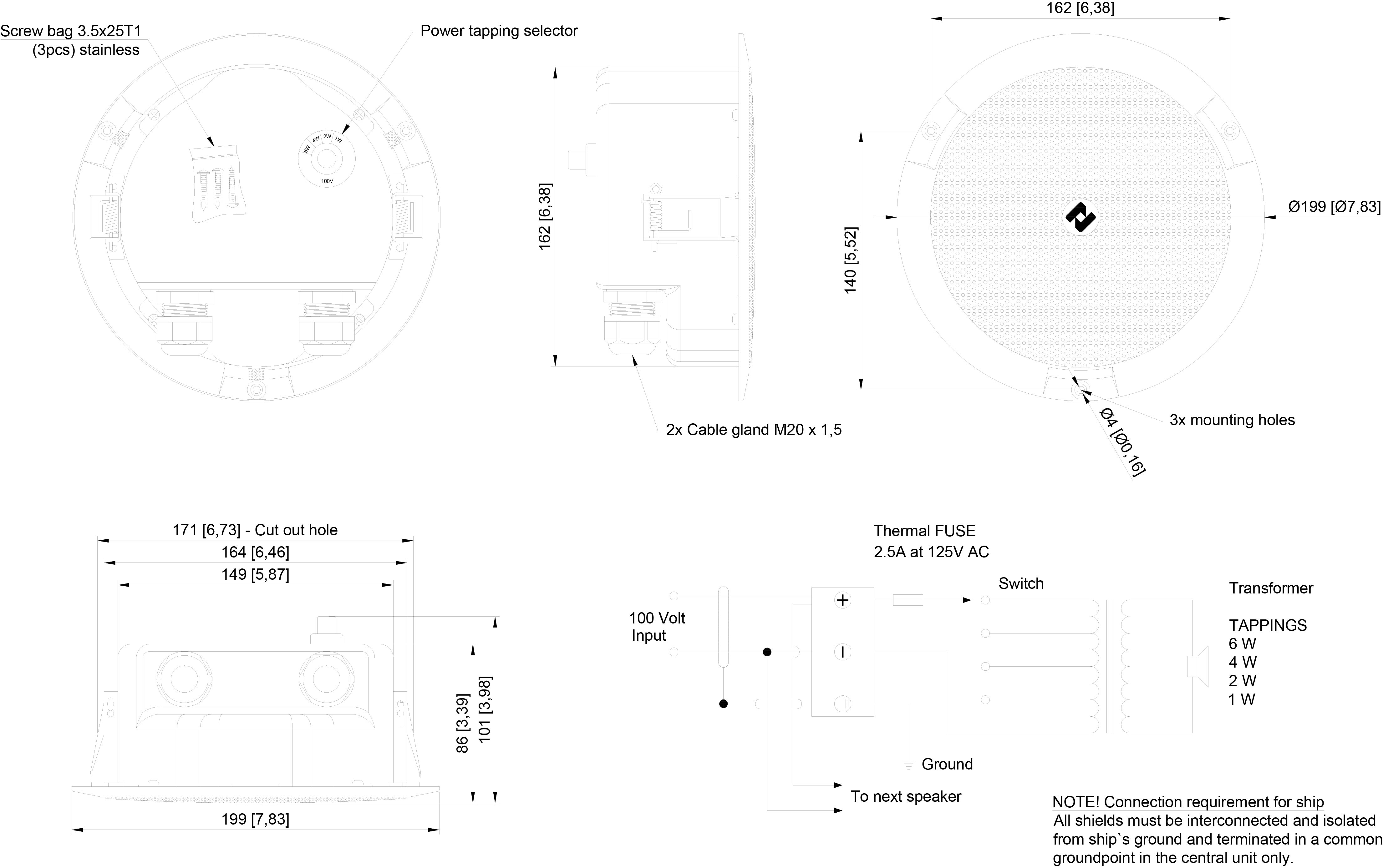

CL 200T MED Dimensional Drawing
Date Name Category Size Document
2131000148 - CL-200T-MED - Dimensional Drawing CAD 2D 701.25 KB Login to download

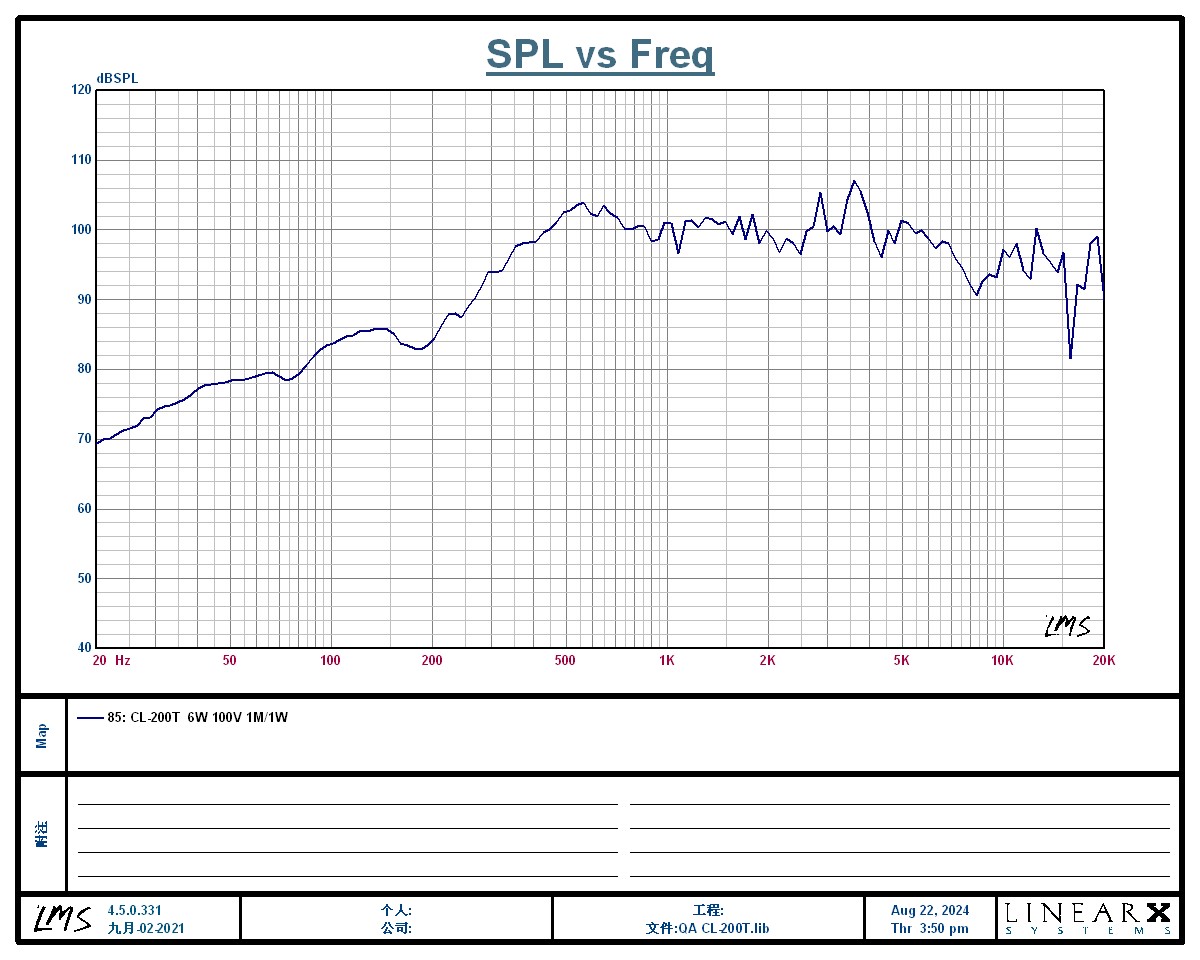

CL-200T (6W) SPL curve
