CLMQ-200T

CLMQ-200T-MED

Item Number: 2131000150

6'' Ceiling Speaker 100V, 6W, fire dome, high quality sound

  • MED approved
  • Metal fire dome
  • High quality sound
MED EU Certification icon MED Certification
MER Certification logo-2 MER Certification

This 6" ceiling speaker delivers high quality sound with a flat frequency response curve making it highly suitable for distribution of background music, announcements and voice messages with a high level of intelligibility.

The speaker is easily mounted with two spring clamps and there are no screws in the front giving the speaker a discreet and elegant appearance.

General
Dimensions (Diameter x Depth) Ø199 x D83mm
Cut Out Dimension (Dia.) Ø167mm
Suspension / Mounting Spring Clamp
Operating temperature range -20℃ ~ + 70℃
Fuse Thermal fuse
Rated Power 6W
Max Power Rating 10W
Power tappings 6W - 3W - 1.5W
Frequency Response 70 Hz ~ 20 KHz -10dB / ±20% Hz
Sensitivity 90 dB ± 3dB, 1W/1M
Maximum SPL 98 dB
Rated Voltage 100 V
Baffle Steel White
Mesh Grille Aluminum, White
Weight 0,98 kg
Environmental Condition Protected
Compass Safe Distance 250 cm
PRODUCT OPTIONS
2131000140 Fire dome for CLMQ-200T incl. mounting screws & 2xM20 glands

Installation and operation:

  1. 1. Mount cable through cable gland and connect cable leads to 100V line in + - terminals
  2. 2. Select required loudspeaker tapping with red cable on the transformer
  3. 3. Fasten the back box onto front of loudspeaker
  4. 4. Fasten cable gland(s) and ensure the cable leads are not placing strain on the terminals.
  5. 5. Place the loudspeaker in front of ceiling cut-out. Hold the fastening spring clamps aligned with back box and push loudspeaker into correct position. Make sure front grille is surface with ceiling for correct mounting.
  6. 6. Once installed the loudspeaker can be used



Maintenance:

  1. 1. No scheduled maintenance is required
  2. 2. For any kind of maintenance secure loudspeaker is not energized
  3. 3. Loudspeaker is equipped with fuse. If fuse broken pull out loudspeaker from ceiling and remove back box from front loudspeaker to access

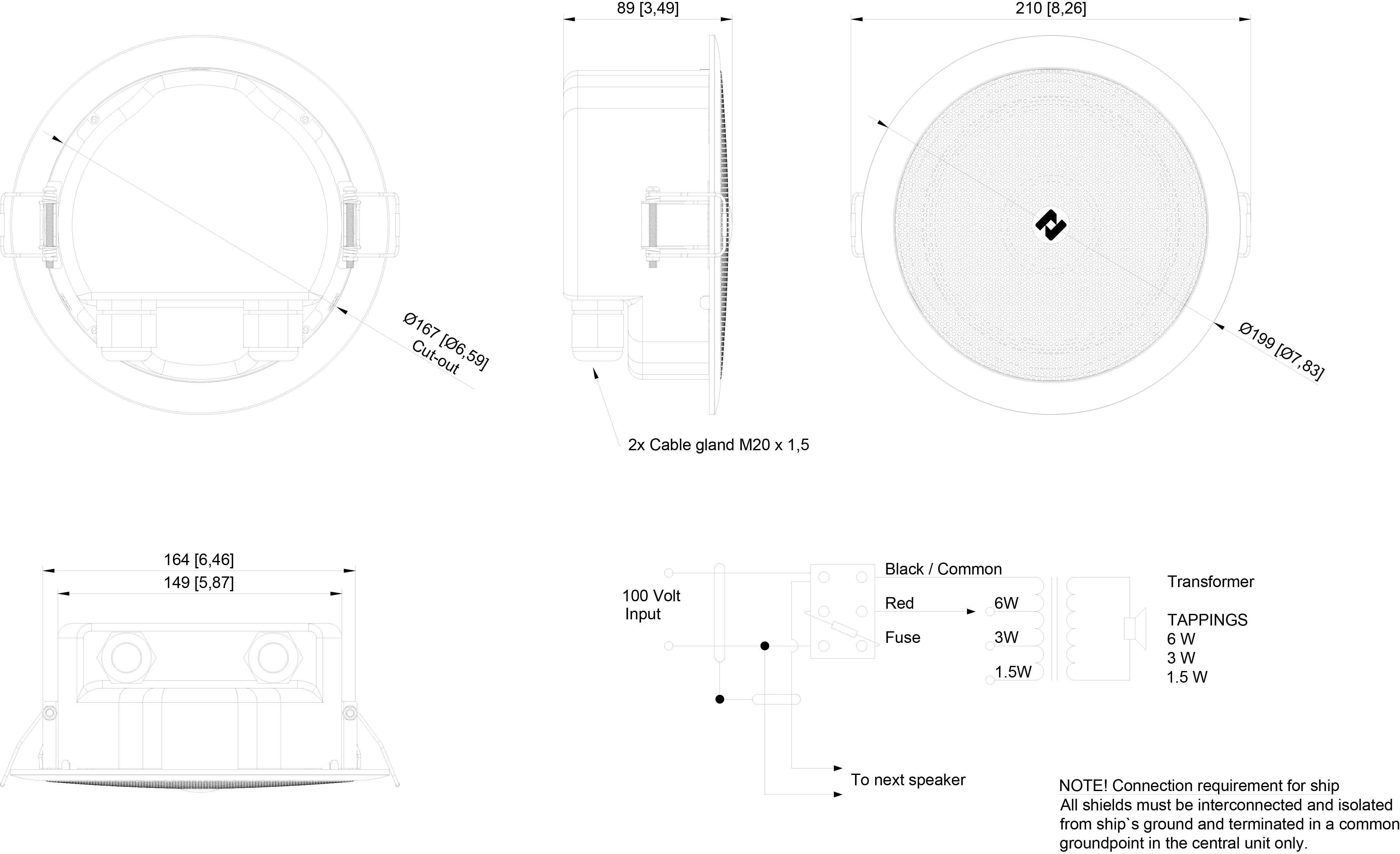

CLMQ 200T MED Dimensional Drawing
