CRM-VH

CRM-VH

Item Number: 2213100000

Headset Solution

  • Headset solution for IP Flush Master
  • Includes ON/OFF switch
  • Flush mounting
  • Light, comfortable, single-sided mono headset

The CRM-VH is a compact, robust headset solution for the IP Flush Master (CRM-V: 1008431000, 1008031000) in a control room communication system. The extremely comfortable single-sided headset enables you to hold a conversation without losing track of what is going on around you, so it is an ideal solution for e.g. hospitals and Engine Control Rooms.

The system comes with an ON/OFF switch, so it is possible to combine it with the handset (1008097100) for the IP Flush Master, and use it in loudspeaker mode.

The solution contains a Headset Connection Box for IP Flush Master, headset, and 50 cm patch cable.

General
Headset box
Dimension (HxWxD) (mm) 96 x 96 x 80
Weight 0.235 kg
Connection telephone 50 cm RJ11 patch cable
Connection headset 2 x 3.5 mm mini-jack
IP IP-21
Headset
Cable length 2 m
Weight 0.6 kg
Connector 2 x 3.5 mm mini-jack
Headphones impedance 32 ohm
Headphones frequency response 42-17 kHz
Microphone impedance 2,2 kOhm
Microphone frequency response 90-15 kHz
Microphone sensitivity -40 dBV/Pa
Pick-up pattern Unidirectional

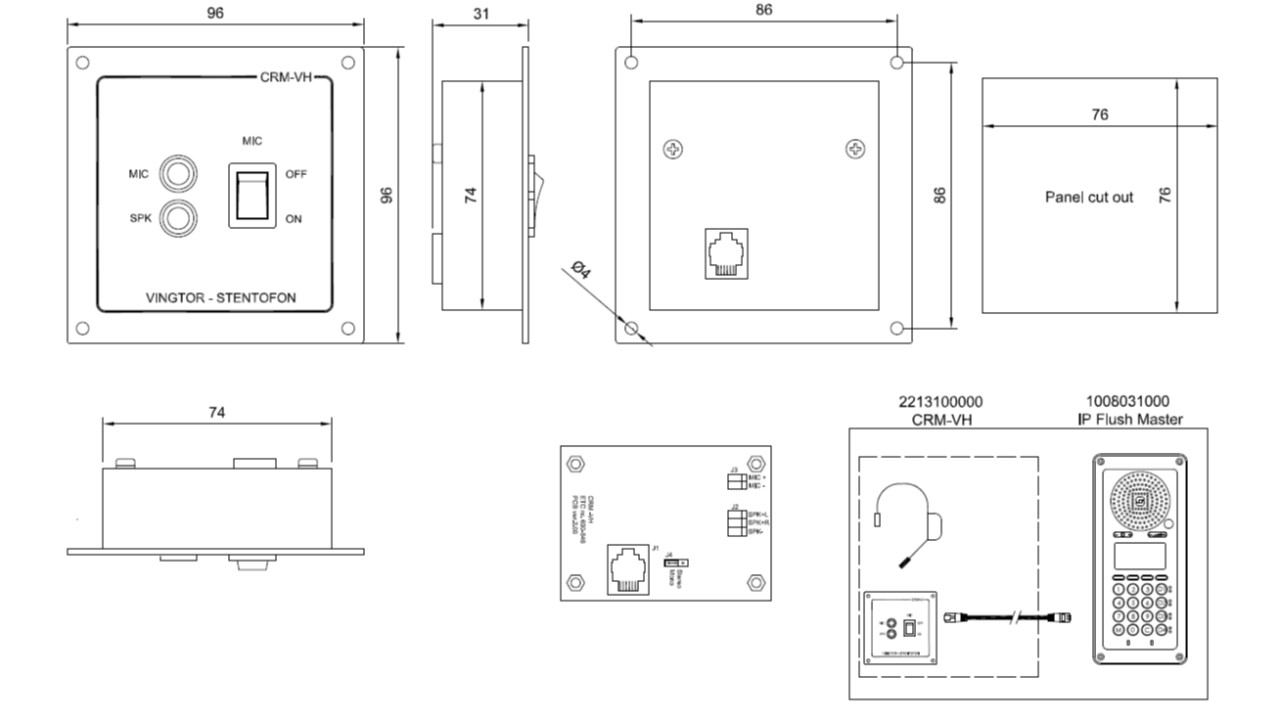

CRM-VH dimensions

Date Name Category Size Document
20.05.2023 MD-SDoC-2213100000-IHM-8003-41808-10579 Declaration 72.15 KB Login to download
18.09.2019 2213100000 CRM-VH CAD 2D 280.25 KB Login to download
