CW-4T

CW-4T

Item Number: 3006100032

Wall Loudspeaker 6W

  • Wall loudspeaker w/ transformer for accommodation area
  • Excellent for P.A. intercom and background music
  • With 100V line transformer

Screw the bracket on the wall, and fasten the cabinet to the bracket with one screw.
For optimum performance, always use the correct voltage / power and operate within the frequency limits as stated.


General
Dimensions (mm) 250W x 170H x 88D
Weight 1.2 kg
Mounting Screws, keyhole
Material/ Color Particle board / White or walnut
Temperature range Max. / min. amb. temp 90°C / -40°C
Max. / min. ambient temperature 90°C / -40°C
Connections Spring clamp
Rated / max. power 6W / 8 W
SPL 1W/1m 90dB
SPL rated power 97dB
Effective freq. range 140 - 20000Hz
Dispersion (-6dB)1kHz / 4kHz 140° / 80°
Environmental Condition Protected

CW-4t

CW-4T/VOF

Wall Loudspeaker 6W with Volume Control and Override

Date Name Category Size Document
8.08.2023 MD-SDoC-3006100032-IHM-8003-41770-12751 Declaration 72.15 KB Login to download
25.09.2019 CW-4T 3006100032 DoC.pdf Certificate 219.69 KB Download

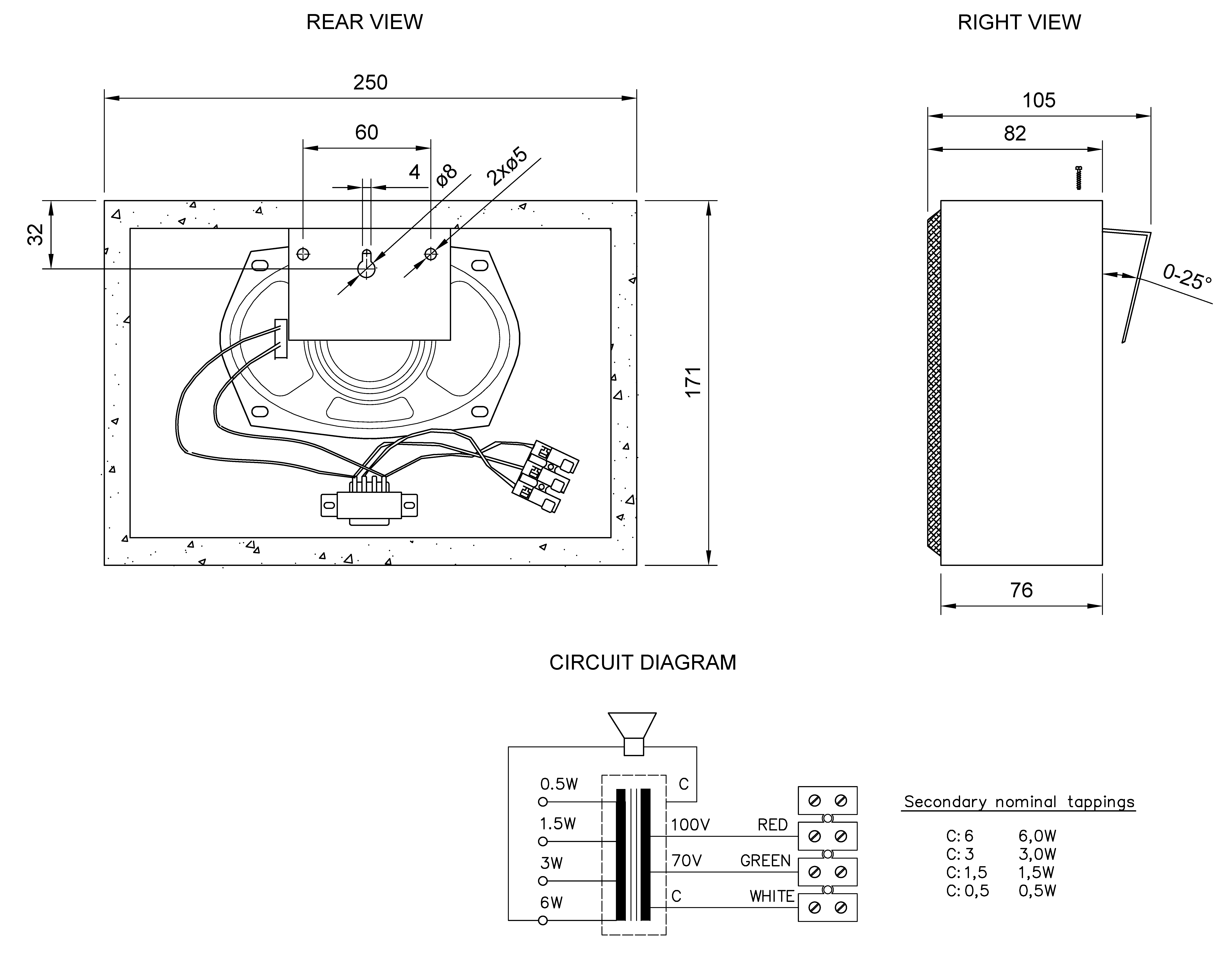

18.09.2019 3006100032_CW-4t.zip CAD 2D 327.1 KB Login to download
