DS-2CD6626DS-IZHS dome camera

Item Number: 2310111115

Ultra Low-Light and ICR Day/Night Anti-Corrosion Dome Camera

  • 1/1.8" progressive scan CMOS
  • Up to 2.0 megapixel high resolution
  • 120 dB wide dynamic range
  • On-board storage, up to 128 GB
  • IR distance: 10 to 30 m
  • 24 VAC/12 VDC /PoE (802.3at)
  • Anti-corrosion standard: WF2, C5-M, NEMA-4XMA 4X
  • IP 67
  • 1 m pigtail included
IP67 IP67
IK10 IK10

DS-2CD6626DS-IZHS 2MP Ultra Low-Light and ICR Day/Night Anti-Corrosion Dome Camera utilizes a 1/1.8" progressive scan CMOS sensor and a 2.8 to 12mm varifocal lens to capture images at a maximum resolution up to 1920 x 1080. With a built-in IR-cut filter, this camera can capture clear images in complete darkness up to 98' away. In addition, the camera also supports intelligent auxiliary heating.

The camera conforms to WF2 and C5-M anti-corrosion standards for avoiding acidic and NSS (neutral salt spray) corrosion, making it suitable for applications such as chemical plants, ports, ships, and coastal roads. Enclosed in an IP67-rated weather-resistant housing, this camera is suitable for outdoor applications.

  • 316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
  • A built-in heater allows for start-up in ultra-low temperatures to -40℃
  • IP67 water resistant, preventing water ingress for outdoor use
  • DarkFighter technology enables the capture of high quality color images in even the dimmest lighting environments
Description
Image Sensor 1/1.8" Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time 1 s to 1/100,000 s
Lens 2.8-12mm F1.4, angle of view: 92°~32°
Adjustment Range Pan: 0°~355°, tilt: 0°~75°, rotation: 0°~355°
Day& Night IR cut filter with auto switch
Wide Dynamic Range 120 dB
Digital noise reduction 3D DNR
Video Compression H.264/MJPEG/MPEG4
H.264 code profile Base Line Profile/ Main Profile/ High Profile
Video bit rate 32Kbps~16Mbps
Audio Compression -S: G.711/G.722.1/G.726/MP2L2
Audio bit rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Dual Stream Yes
Max. Image Resolution 1920 x 1080
Frame Rate 50Hz: 50fps (1920 × 1080,1280 × 960,1280 × 720); 60Hz: 60fps (1920 × 1080,1280 × 960,1280 ×720)
Image Settings Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
Day/Night Switch Auto, Schedule, Alarm trigger
Alarm Trigger Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering
Audio 1-ch audio in, Mic in/Line in; 1-ch audio out
Communication Interface 1x RJ45 10M / 100M Ethernet interface
Alarm 1 Input /1 output (up to DC24V 1A or AC110V 500mA)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set Behavior Analysis, Line Crossing Detection, Intrusion Detection, Region Entrance, Region Exiting, Unattended Baggage, Object Removal
Operating Conditions -30 °C – 60 °C; Humidity 95% or less (non-condensing)
Power Supply 24 VAC/12 VDC/PoE (802.3at)
Power Consumption 16W MAX
Weather Proof IP67
IR Range Up to 30m

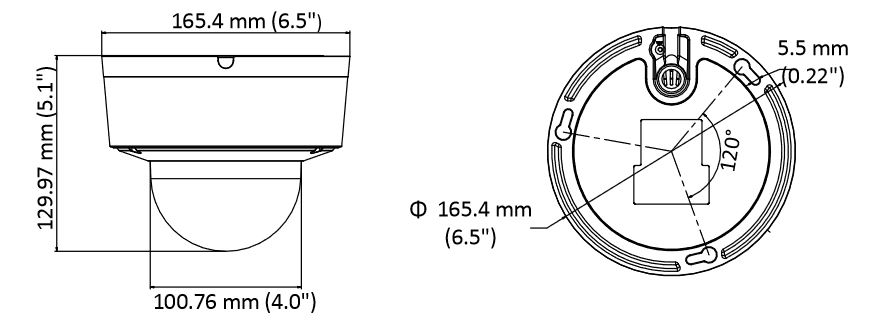

Dimensions Φ165.4 × 126.2
Weight 3360g
