DS-2DE4A225IW-DE IR Network PTZ dome camera

Item Number: 2310111145

2 MP 25 × IR Network PTZ Camera

  • 1/2.8" progressive scan CMOS
  • Up to 1920 × 1080 resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • 25 × optical zoom, 16 × digital zoom
  • Up to 50 m IR distance
  • 12 VDC, PoE (802.3at, class4)
  • Support H.265+/H.265 video compression
IP66 IP66

DS-2DE4A225IW-DE 2 MP 25 × IR Network PTZ Camera adopt 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details over expansive areas.

This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, ports, cargo hold, deck areas and more.

Description
Image Sensor 1/2.8" progressive scan CMOS
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W:0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
Shutter time 1 to 1/30,000 s
Focal Length 4.8 mm to 120 mm, 25 × optical
Field of View Horizontal field of view: 57.6° to 2.5° (wide-tele) Vertical field of view: 34.4° to 1.4° (wide-tele) Diagonal field of view: 64.5° to 2.9°(wide-tele)
Day& Night IR cut filter
Wide Dynamic Range 120 dB
Zoom Speed Approx. 3.2 s (optical lens, wide-tele)
Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
H.264 code profile Base Line Profile/ Main Profile/ High Profile
Video bit rate 32 kbps to 16384 kbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
SVC Yes
Max. Image Resolution 1920 x 1080
Frame Rate Main: 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720), Sub: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240), Third: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network Storage Built-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm Linkage Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Audio 1-ch audio input and 1-ch audio output
Communication Interface 1 RJ45 10 M/100 M Ethernet, PoE (802.3at, class4)
Alarm 2-ch alarm input and 2-ch alarm output
Web Browser IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Smart Feature-set Motion Detection, Video Tampering Detection, Alarm Input, Alarm Output, Exception Detection, Audio exception detection, face detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Working Environment Temperature: -30°C to 65°C (-22°F to 149°F), humidity: ≤ 90%
Power Supply 12 VDC, 3.33 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4
Power Consumption Max. 18 W, including max. 5W for IR
Protection Level IP66 standard, 4000V lightning protection, surge protection and voltage transient protection
IR Range Up to 50m

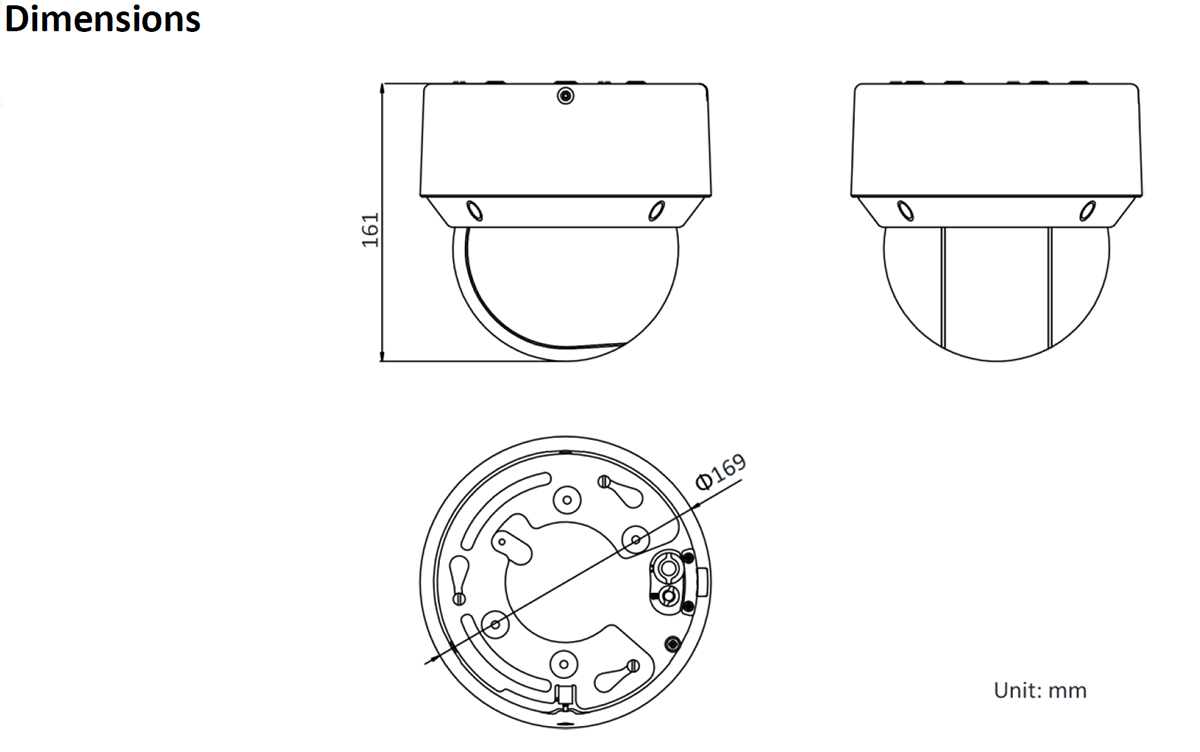

Dimensions Φ 169 mm × 161 mm (Φ 6.65" × 6.34")
Weight Approx. 2.45 kg (5.40 lb.)
