DS-2TD2636

DS-2TD2636-10

Item Number: 2310111147

Indoor Thermal IP camera, 384x288 pixels

  • Aluminum housing
  • Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (0.04°C), F#=1.0
  • Powerful behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit
  • Reliable temperature exception alarm function
  • Advanced fire detection algorithm
  • Bi-spectrum image fusion, picture in picture preview
  • 384 × 288 resolution sensor, high sensitivity sensor, support contrast adjustment
  • Shutter adjustment in various modes
  • 3D DNR, 15 palettes of color adjustable, image detail enhancement
  • Mirror image, digital zoom ×2, ×4, ×8, and local output
  • Thermal field of view 37 x 28 deg, 10mm lens
  • Optical 1080p camera, 30-52deg, 6mm lens
  • 24VAC or PoE+ supported (20W)
IP66 IP66

The DS-2TD2636-10 Thermal Bi-spectrum Network Bullet Camera is applied to perimeter defense and fire-prevention purposes in critical infrastructures such as: airport, railway, prison, power station, 4S stores, and so on. The pre-alarm system helps you discover unexpected events immediately and protects you from property loss.

Description
IR Distance Up to 40m
IR IntenSity and Angle Auto Adjust
Main Stream Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720); Thermal: 50fps (384×288)
Sub Stream Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720); Thermal: 50fps (384×288)
Video Compression H.264/MJPEG,H.264+ encoding with Baseline/Main/High Profile
Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,I GMP,ICMP,DHCP, PPPoE, Bonjour
Simultaneous live view Up to 20-ch
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Alarm Input/Output 2-ch Inputs (0-5V DC); 2-ch relay outputs, alarm response actions configurable
Audio Input 1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
Audio Output Linear Level; Impedance: 600Ω
Ethernet 1x RJ45 10M/100M Self-adaptive Ethernet interface
Web Browser IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
Power Consumption 24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.6 A, max. 10W (20 W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.35 A to 0.47 A
Power 24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4)
Working Temperature/ Humidity From -40°C to 60°C; Humidity: 90% or Less
Protection Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

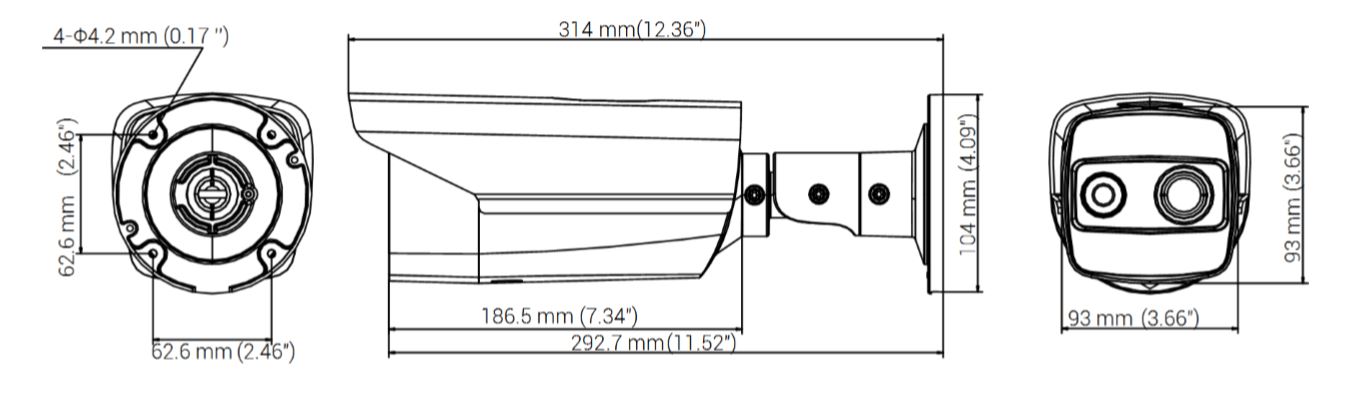

Dimensions 314mm × 104mm × 292.7mm
Weight 1.55Kg
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 384 × 288
Pixel Interval 17μm
Response Waveband 8μm to 14μm
NETD less than 40 mk (0.04°C), F#=1.0
Lens (Focal Length) 10 mm
MRAD 1.70 mrad
Field of View 37.7°× 28.7° (H × V)
Min. Focusing Distance 1.0 m
Aperture F1.0
Optical Camera
Image Sensor 1/2.8’’ Progressive Scan CMOS
Max. Image Resolution 1920 × 1080
Min. Illumination Color: 0.002 lux @ (F1.5 , AGC On ) B/W : 0.0002 lux @ (F1.5 , AGC On )
Focal Length 6 mm
Field of View 52.8° - 30.0° (Wide-Tele)
WDR Digital
Shutter Speed 1 to 1/100,000s
Day & Night IR Cut Filter with Auto Switch
Accessories
2310111124 DS-1280ZJ-S Bracket/ junction box

DS-2TD2636
