OC-IC-NDC-2MP

IC-NDC-2MP

Item Number: 2310111102

Indoor IP Dome Camera WDR w/IR, 2MP, PoE or &12VDC

IP67 IP67
IK10 IK10
  • 1/2.8” Progressive Scan CMOS
  • Indoor WDR dome camera
  • 2MP resolution
  • Motorized lens 2.8-12mm
  • Up to 30 meters IR range
  • Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
  • Audio/alarm I/O (-S)
  • Mobile Monitoring via EZVIZ P2P or iVMS-4500
  • 12V DC±25% & PoE(802.3af Class 3)
  • Support H.264+
CAMERA
Image Sensor 1/2.8’’ Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s ~ 1/10,000 s
Slow Shutter Support
Lens 2.8 - 12 mm @ F1.4, motorized lens (-Z), angle of view: 106°~35°
Angle Adjustment Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Lens Mount Ø14
Day & Night IR cut filter with auto switch
WDR 120dB
COMPRESSION
Video Compression H.264/MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps – 16 Mbps
Audio (-S) G.711/G.722.1/G.726/MP2L2, 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution 1920 × 1080
Max Frame Rate 50Hz: Main stream: 25fps(1920 × 1080, 1280 × 960, 1280 × 720); Sub stream: 25fps(352×288), 25fps(640×360)
60Hz: Main stream: 30fps (1920 × 1080, 1280 × 960, 1280 × 720); Sub stream: 30fps(352×240), 30fps(640×360)
Enhancement BLC/3D DNR/ROI
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Day/Night Switch Auto/Schedule/Triggered by Alarm In
NETWORK
Network Storage NAS (Support NFS,SMB/CIFS); ANR, Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General
Interface 1 RJ45 10M/100M Ethernet interface
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply 12V DC±25%, PoE (802.3af, Class 3), Max. 5.5 W
Material Front Cover & Base: Metal
Ingress Protection IP67
Impact Protection IEC60068-275Eh, 20J; EN50102, up to IK10
IR Range 20~30 meters

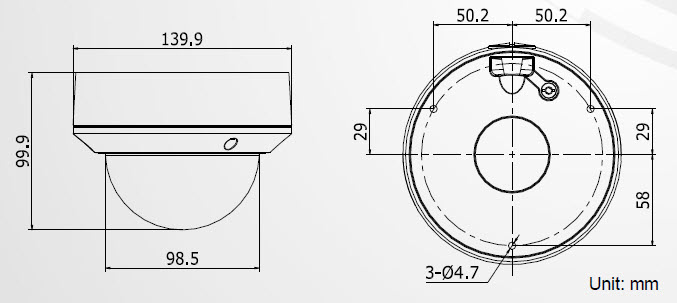

Dimensions Φ 140 × 99.9 mm (Φ 5.51” × 3.94”)
Weight 1000g (2.20lbs)
ACCESSORIES
2310111135 IC-NDC-JB Junction box for IC-NDC-2MP
2310111127 IC-NDC-CB In-ceiling mount bracket for IC-NDC-2MP
