ICS 6200R

Item Number: 4000019765

Central Unit

  • Up to 24 analog or digital lines per unit
  • 48 VoIP registrations per unit
  • 2 x 100 Mbit Ethernet ports
  • Modular terminal interface design
  • PBX features such as group calls, paging groups, alert groups, conferences, switchboard, direct inward dialling and more
  • VoIP or FXO trunk lines
  • SIP/RTP protocol support
  • Dual redundant power supply
  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV-GL, ABS type approval and compatible with NORSOK

The Phontech P-6200 Central Unit is a digital communication system meeting all aspects of internal and external communication, and information exchange on-board vessels, offshore installations and to/from onshore operation centers.

Up to six line boards can be added with the following interface formats:

  • 4000017689 6200 FXS line board, 4 analogue lines
  • 4000017839 6200 UpN line board, 4 digital lines
  • 4000017836 6200 FXO line board, 4 analogue trunk lines
  • 4000017838 6200 E&&M line board - 2 lines (4wire)



Mechanical

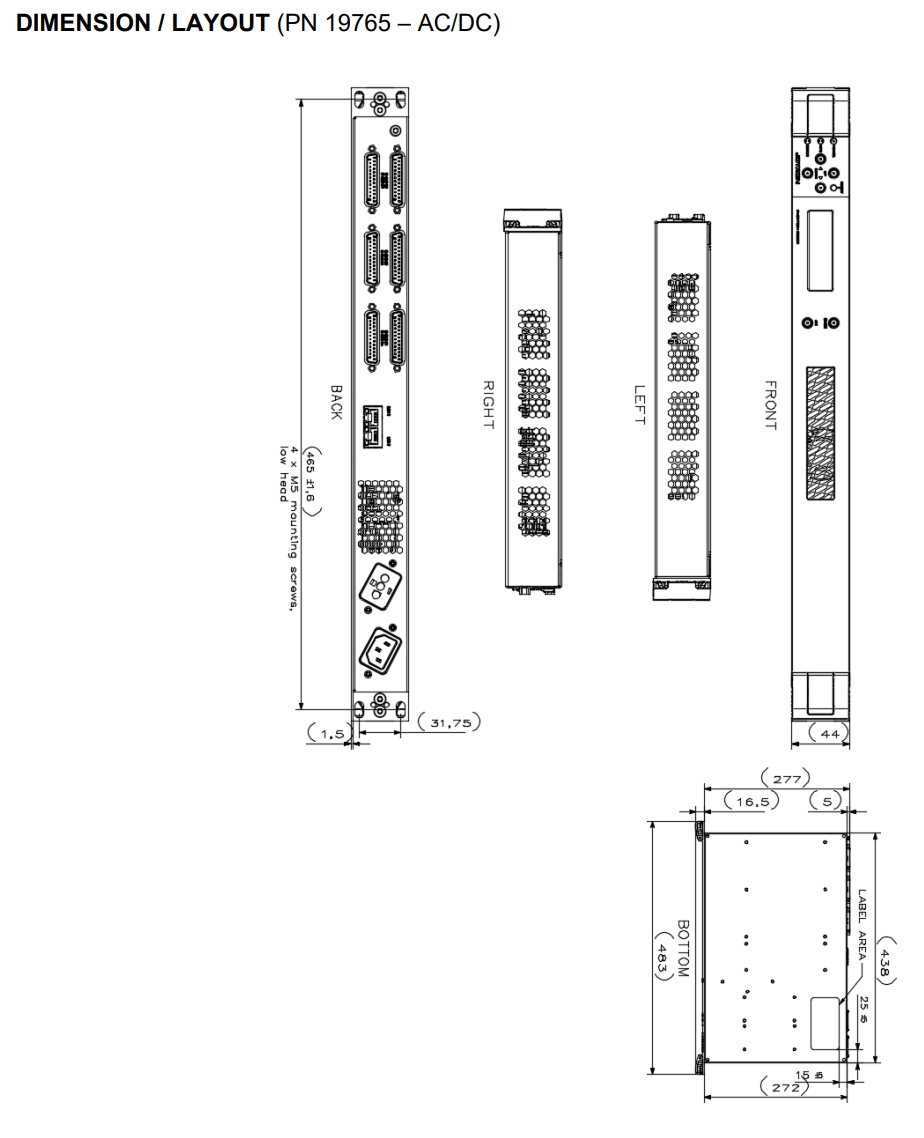

Dimensions 19” 1U rack mounted, D=293 mm
Weight 3.5 kg
Color RAL 9005
Material Steel / Plastic/ Aluminium
Mounting Rack/ Console
Fixing 4 x M5 bolts
Access Front
Cable Entry Rear
Connector Type RJ45/ Dsub 25p
Electrical

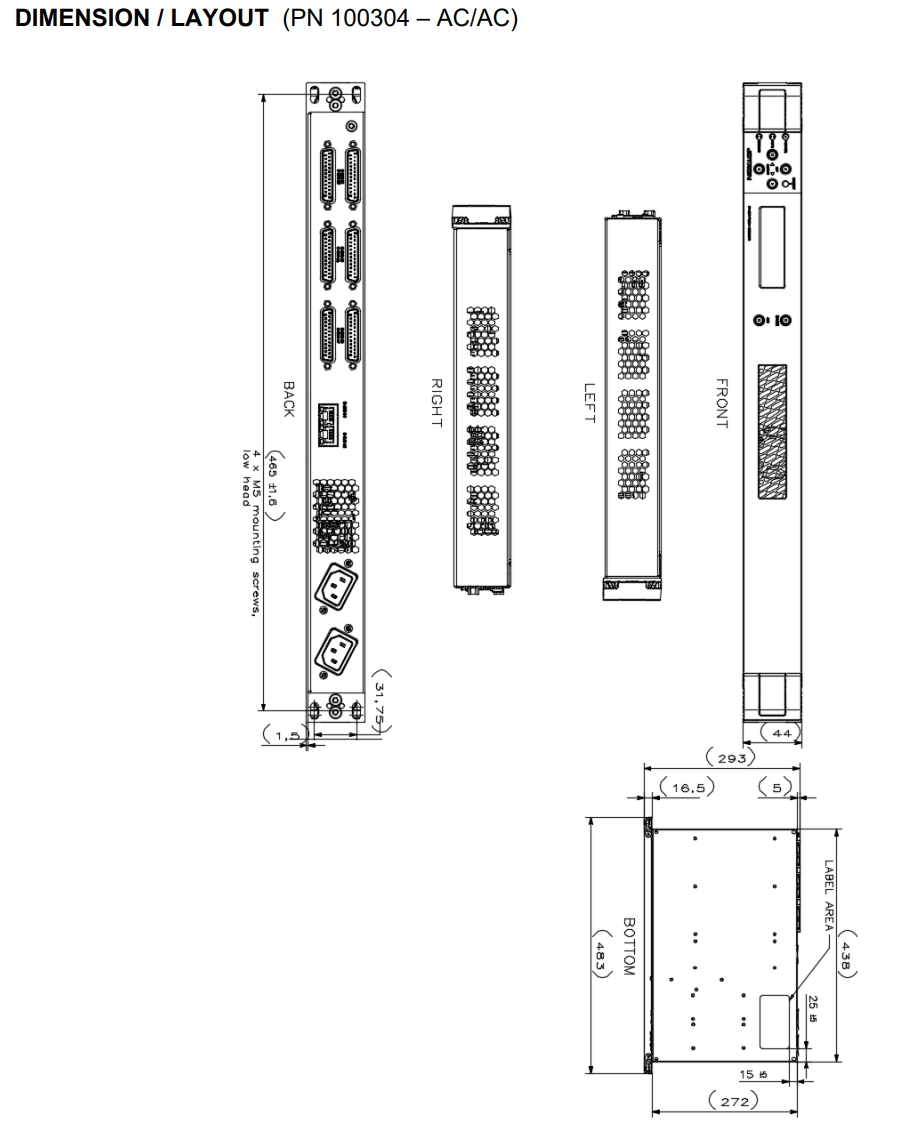

Power Supply PN 19765: (AC/DC) - 220/110VAC, 48/24VDC (dual redundant) PN 100304: (AC/AC) - 220/110VAC, 220/110VAC (dual redundant)
Power Consumption 12 W (idle), 65 W (max)
Heat Dissipation 35 W (max)
Compass Safe Distance 0.2 m
Environmental
Temperature -15°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-20
