IPDMH-V2_P

Item Number: 1008401090

IP Desk Master with Handset V2_P

  • Compatible with ICX-AlphaCom, IC-EDGE, and SIP
  • Large high-contrast display with backlight for excellent readability
  • Four dynamic navigation keys for quick access to system menus and directory entries.
  • Ten DAK keys provide single-touch access to stations, group calls, audio monitoring, public address zones, radio channels and telephone lines
  • Remote software upgrade, configuration, and monitoring
  • Powered from the IP network cable using Power over Ethernet (PoE)
HD Voice HD Voice
Active Noise Cancelling Active Noise Cancelling
Open Duplex Open Duplex

The IP Desk Master-V2_P is a general purpose desktop telephone that can be used for daily administrative communications as well as security communications in a control room setting. As with all Zenitel products, this IP Desk Master-V2_P features superb audio quality. This is enabled through a set of advanced technologies such as active noise filtering, acoustic echo cancellation, wide band audio codec, and high-power audio outputs.

See also: additional documentation on wiki.zenitel.com

GENERAL

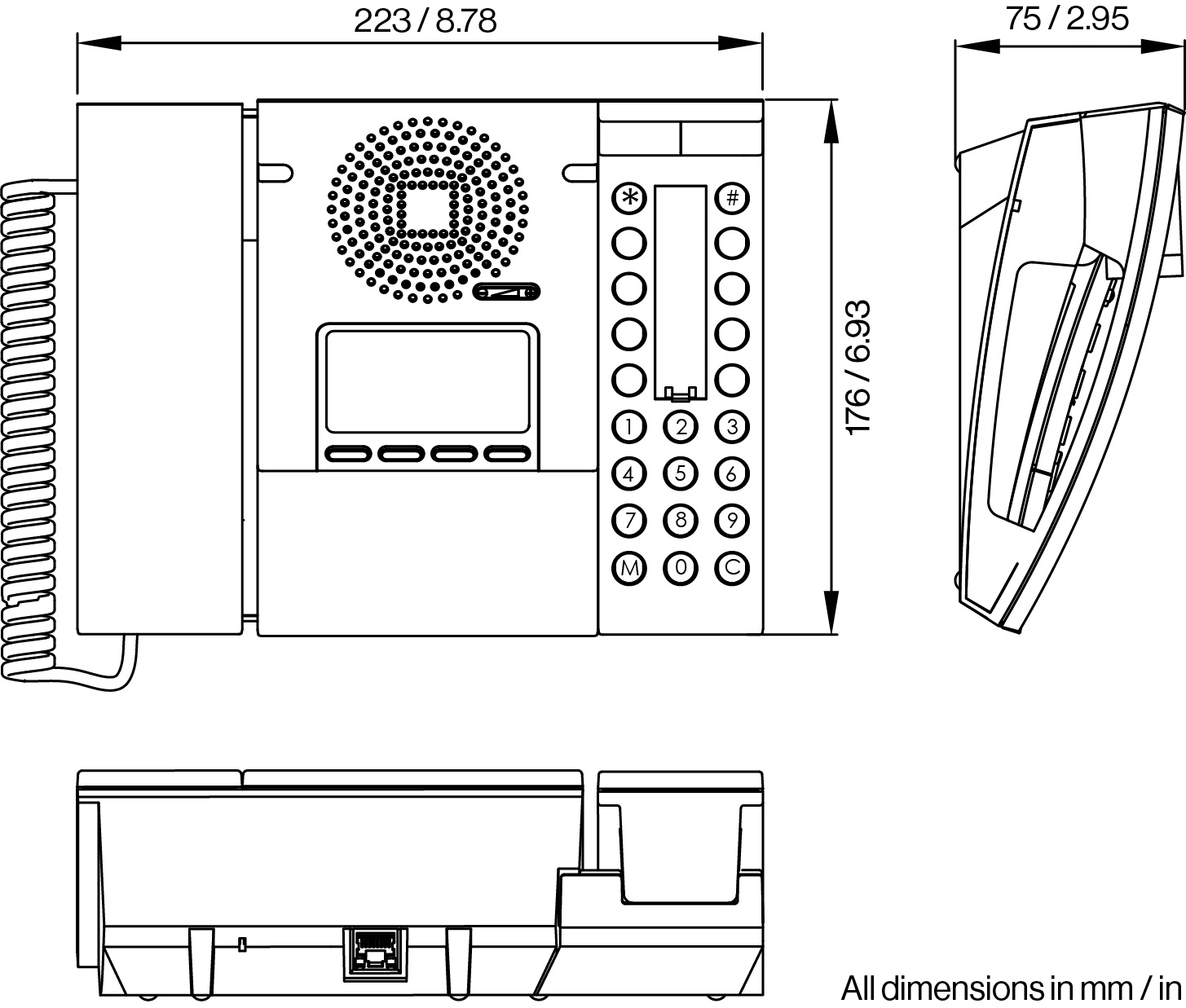

Dimension (WxHxD) 225 x 75 x 176 mm
Weight 0.7 kg
Display Backlit display, 35 x 68 mm (64 x 128 pixels)
Temperature range 0˚C - 55˚C
Relative humidity < 95% not condensing
Power consumption Power over Ethernet, IEEE 802.3 a-f, Class 0 Idle 4W, max. 8W
Connectors RJ45 (Ethernet) 10/100 Mbps
SIP RFC 3261, SIP Info (DTMF), RFC 2833 (DTMF)
IP protocols IP v4 - TCP - UDP - HTTPS – TFTP - RTP - RTCP -DHCP - SNMP - DiffServ - TOS – ONVIF - CC oIP® - SIP
LAN protocols Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x)
Audio technology Wideband 200 Hz - 7 kHz (G.722) Telephony 3.4kHz (G.711) Active noise filtering Acoustic echo cancellation Active noise filtering Telephony 3.4kHz (G.711) Wideband 200 Hz - 7 kHz (G.722)
Audio output 1.5 Watt, 85 dB audio pressure 1m from speaker
Management and operation HTTPS (Web configuration) DHCP and static IP Remote automatic software upgrade Centralized monotoring Status LED

IPDMH-V2_P

Date Name Category Size Document
23.10.2023 FCC Declaration IPDMx-V2_P Declaration 115.97 KB Download
19.10.2023 RoHS Declaration IPDMx-V2_P Declaration 90.62 KB Download
28.12.2022 CE Declaration IPDMx-V2_P Declaration 162.53 KB Download
28.12.2022 IP Desk Master Station Getting Started Guide Manual 1.12 MB Download
