M364C Stabilized 30Hz Color Thermal IP Camera

Item Number: 2310111182

Thermal IP Camera

  • 640 x 512 pixel resolution
  • 24° x 18° field of view
  • 8x continuous electronic zoom
  • 2 axis gyro-stabilization
  • 30x optical zoom
  • Ball up or ball down mounting
  • Color Thermal Vision

The M364C Stabilized 30Hz Color Thermal IP Camera is a high definition low light camera with one of the most advanced Teledyne FLIR thermal imaging cores that provides an elite level of awareness on the water. It uses advanced gyro-stabilization and high-performance thermal imaging to detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.

The camera uses multispectral imaging to deliver exclusive FLIR Color Thermal Vision™ (CTV) technology. Color Thermal Vision blends visible camera details with a thermal image, overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene.

M364C Stabilized 30Hz Color Thermal IP Camera

The color thermal IP camera provides steady, stable viewing in heavy seas to allow captains to keep their eyes on-target. It utilizes two-axis mechanical stabilization which virtually eliminates the effects of pitch, heave, and yaw. The horizontal stabilization automatically keeps the camera positioned in the same direction as the vessel turns. Additionally, the M364C Stabilized 30Hz Color Thermal IP Camera features an integrated AHRS (Attitude Heading Reference Sensor).

Thermal Camera
Detector Type 640x512 VOx Microbolometer
Video Refresh Rate 30 Hz or <9 Hz
Field of View 24 ° x 18 °
Focal Length 18 mm
Focus Fixed 12 ft (3m) to infinity
Digital-Zoom 4x Continuous
Visible Camera
Detector Type 1/2.8” CMOS
Resolution Up to 1920 x 1080 @ 30fps
Minimum Illumination Low Light Setting ON: 0.006 lux / Low Light Setting OFF: 0.1 lux
Optical Zoom 30×
Digital-Zoom 12x
Focal Length 129 mm to 4.3 mm
Field of View 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
System Specifications
Gyro Stabilized yes
Marine Video Analytics (MVA) yes
Pan/Tilt Adjustment Range 360° Continuous Pan, +/- 90° Tilt
Color Thermal Vision yes
Analog Video Output NTSC/PAL User Settable
Analog Video Connector Types BNC
Network Video Output Dual H.264 IP Network Video Streams
HD-SDI Lossless Video Output yes
Power Requirements 12 to 24 VDC
Power Consumption 41W nominal; 56W w/ heaters
ONVIF Profile S Conformance
Environmental
Operating Temperature Range -25°C to +55°C
Storage Temperature Range -30°C to +70°C
Automatic Window Defrost Standard at Power-Up
Water Ingress IPX6
Shock 15g vertical, 9g horizontal
Vibration IEC60945
Lightning Protection Near Strike up to 2kV
Salt Mist IEC60945
EMI IEC60945
Physical
Weight Camera: 6.3kg / Camera with Top-Down Riser: 6.8kg
Size CameCamera: 222mm x 328mm / Camera with Top-Down Riser: 254mm x 366mm
Clear Weather Range Performance
Detect a 30-foot vessel 3150m
NATO Target 2.3m x 2.3m @50% 1690m
Detect Human Sized Target 925m

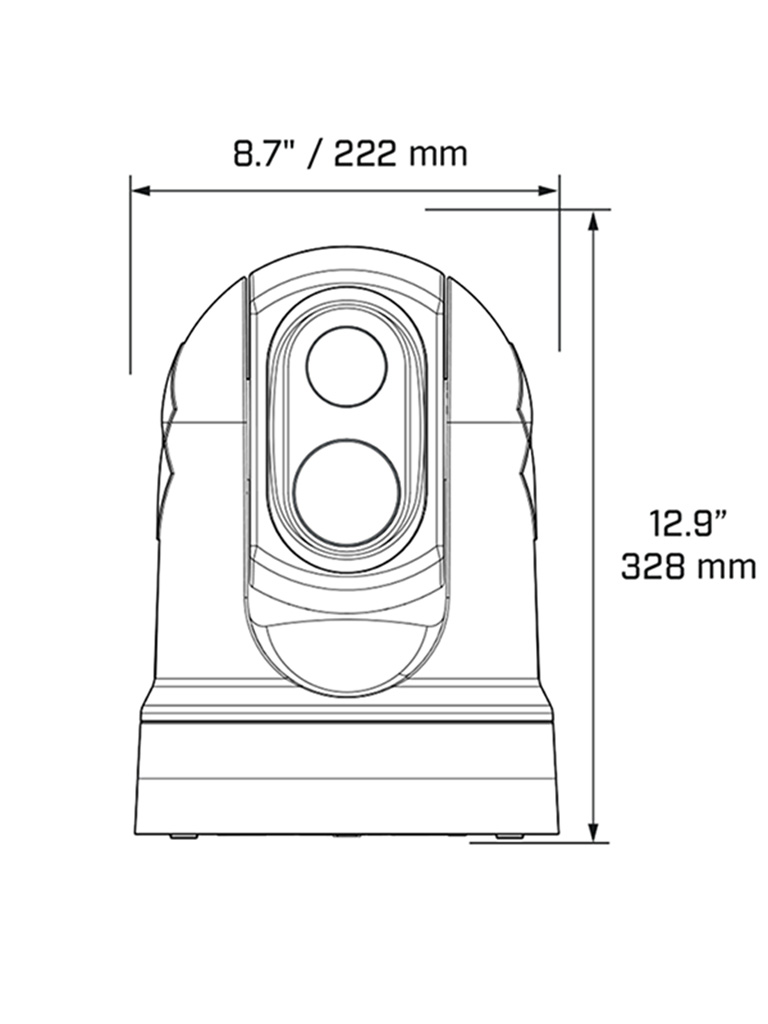

Dimensional Drawing M364C Stabilized 30Hz Color Thermal
