Master Clock

Marine Master Clock 70000

Item Number: 3005050028

123378-01 Marine Master Clock 70000

  • Accuracy +/- 0.1 sec./24 hours
  • Wide range of different slave clocks (digital, 65, Ex-proof)
  • Easy cabling and calibration
  • Accessories and options like radio or satellite
  • Signal receivers, RS232C/RS485 interface
  • Alarm outputs, etc.
  • Automatic summer-winter time change-over
  • LAN connection (70000L)

Marine Master Clock is the ideal solution for distribution of both Local and UTC time on board ships. The Master Clock is equipped with several outputs and inputs for control of Slave Clocks as well as distribution of time to computers and other equipment needing the correct time. The four Slave Clock outputs  can be individually programmed for different types of clocks. External radio receivers / time synchronisation  sources can be connected when higher accuracy is needed.

The clock is also used for the control and regulation of various energy consumers such as electrical striking plates and buzzers for pause  signalling. The master Clock has a built-in yearly programmer with two relay outputs.

The Master Clock is equipped with 10 buttons and a 2 x 16 character LCD. To facilitate the change of time zones, two of the buttons are dedicated to this purpose. A light dimmer makes it possible to adjust the  background-illumination to the surrounding light level.

GENERAL
Crystal frequency T4,915200 MHz
Accuracy 0,1 sek./24 hours (+20C°)
Microprocessor HD6412394
Time memory 30 days (Back-up with Super Capacitor)
Impulse memory 72 hours
Ambient temperature 0° C to +50°C
Relative humidity Max. 85% non-condensing

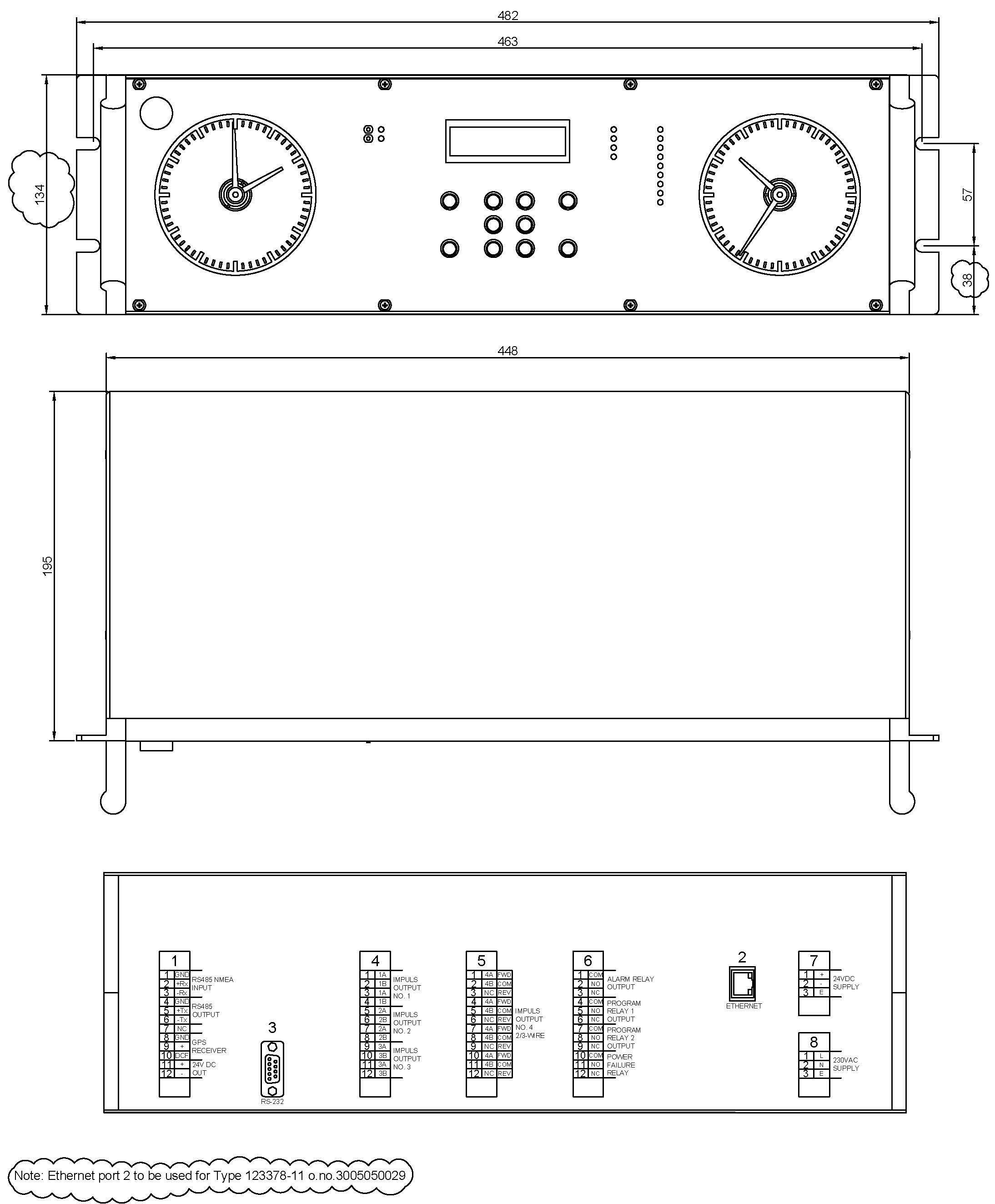

Case 19” case according to drawing 084477-00, material aluminium. H=3U
IP class IP-20
Weight 5.6 kg
CE-approval, EMC Emission according to EN61000-6-3, Immunity according to EN61000-6-2
Supply voltage 90-264VAC 50/60Hz (Standard) / 24V DC
Power Consumption 65W (max)
ORDER NUMBER DESCRIPTION SHIP WEIGHT
3005050028 70000 Marine Master Clock 5.6 kg
Optional equipment:
3005050029 70000L Marine Master Clock with network time server 5.6 kg
3005050031 70100 GPS receiver for master clock 0,3 kg
Slave clocks See catalogue
