Autodome IP Starlight

NDP-5512-Z30 PTZ Dome Camera

Item Number: 2310111118

PTZ 2MP HDR 30x clear IP66 pendant

  • Starlight camera technology with excellent low-light performance
  • 120dB dynamic range lets you capture details in overexposed situations with confidence
  • Intelligent streaming, IDNR and H.265 reduce bit rate by up to 80%
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • High resolution bubble to ensure maximum effective resolution output
  • Simple installation with flexible mounting options (in-ceiling or pendant mounting)

With he NDP-5512-Z30 cameras, you can capture full details of your surveillance space and identify activity details in the scene. The integrated 30x optical zoom lens allows covering large field of views from a single camera.

IP PTZ dome camera; 1080p60; 30X optical, 4x4 digital zoom; 120dB HDR; starlight imaging; IAE; EVA; PoE; Intelligent Streaming; clear, high-resolution, coated bubble. Dual power options.

Description
Image Sensor 1/2.8” progressive scan CMOS
Effective Picture Elements 1945 x 1097 (2.13 MP)
Lens 30x zoom; 4.5 mm - 135 mm (F1.6 - F4.4)
Optical Zoom Field of View (FOV) 2.4° - 60.9°
Digital Zoom 16x
Video performance – Sensitivity 3100K, reflectivity 89%, 1/30, F1.6, 30 IRE
Color/Mono 0.0186 lux/0.004 lux
Dynamic Range High: 120 dB WDR, Measured according to IEC 62676 Part 5: 107 dB WDR
Electronic Shutter Speed (AES) 1/1 sec to 1/10000 sec (22 steps)
Signal-to-noise Ratio (SNR) >55 dB (AGC off)
Day/Night switch Automatic IR cut filter
Backlight Compensation (BLC) On / Off / Intelligent Auto Exposure (IAE)
Intelligent Defog Automatically adjusts parameters for best picture in foggy or misty scenes (Auto/Off)
White Balance 2000 K to 10,000 K ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp
Day/Night Monochrome, Color, Auto
Alarm rules (combinable) Any object, Object in field, Line crossing, Enter / leave field, Loitering, Follow route Idle / removed object, Counting, Occupancy, Crowd density estimation, Condition change, Similarity search
Pan/Tilt Modes Normal: 0.1°/s - 120°/s; Turbo: Pan: 0.1°/s - 300°/s; Tilt: 0.1°/s 200°/s
Pre-position Speed Pan: 300°/s; Tilt: 200°/s
Pan Range 360° continuous
Preposition Accuracy ± 0.1° typ
Pre-positions 256
Power RJ45 10/100 Base-T PoE+ (IEEE 802.3at, class 4 standard); 21-30 VAC, 50/60 Hz
Power consumption 14 W (heater off) / 24 W (heater on)
Video compression H.265, H.264, M-JPEG
Streaming Multiple configurable streams in H.265, H. 264, and M-JPEG; configurable frame rate and bandwidth
Frame rate 60fps at all resolutions
Resolution 1080p 720p D1 4:3 (cropped) SD (432p, 288p)
Ethernet 10/100BASE-T
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication
Audio compression G.711, 8kHz sampling rate; L16, 16kHz sampling rate; AAC, 16kHz sampling rate
Audio Interface 1/1 Channel In/Out
Alarm Inputs 2
Alarm Output 1 relay output 5 VDC, 150 mA max.
Ingress Protection Rating/ Standard IP66
IK Rating IK10
Operating temperature -40 ºC to +60 ºC
Humidity 0% to 100% RH, condensing
Storage temperature -40 ºC to +60 ºC

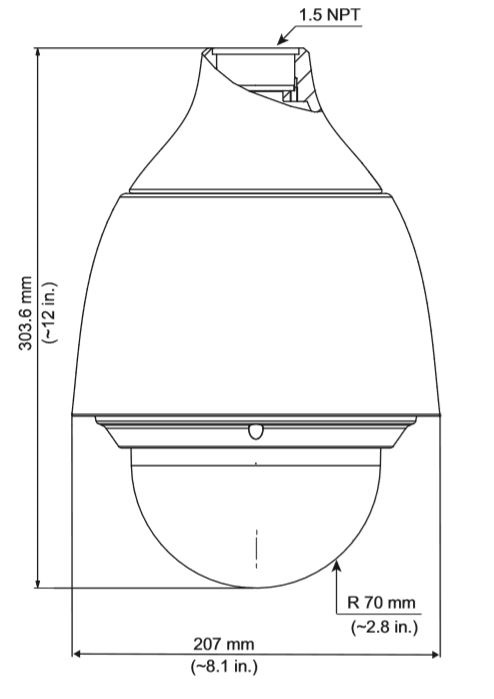

Dimensions (DIA x H) 207 mm x 303.6 mm
Weight 3.25 kg (7.17 lb)
Construction material Housing: Aluminum; Sunshield: Outdoor Grade Plastic; Bubble: Polycarbonate
Accessories
2310111131 NDA-U-WMT, Universal wall mount for Autodome IP 5000i 2310111132 NDA-U-PSMB, Pendant wall/ceiling mount backbox
2310111132 NDA-U-PSMB, Pendant wall/ceiling mount backbox

NDP-5502-Z30
