P-9017

Item Number: 4000014197

Handheld microphone, noise cancelling

  • Dynamic noise cancelling microphone
  • PTT
  • Stovage Clip
  • 1.2 m Curled cable and plug
  • Indoor environments
  • Complies with IEC 60945 Marine Equipment

The P-9017 is a handheld noise cancelling directive microphone. The noise cancelling microphone is intended  for CIS TalkBack system. It also fits with other products in Zenitel range where handheld microphone is required.

The P-9017 Dynamic Microphone comes with Push-to-Talk Switch, plug for easy connection and hangup clip included.

This handheld microphone is designed for various sound installations. The frequency response, especially tailored for voice communications, provides a crisp, clear, highly intelligible sound. The ergonomic teardrop housing is tough and the transducer resists atmospheric extremes.




Mechanical

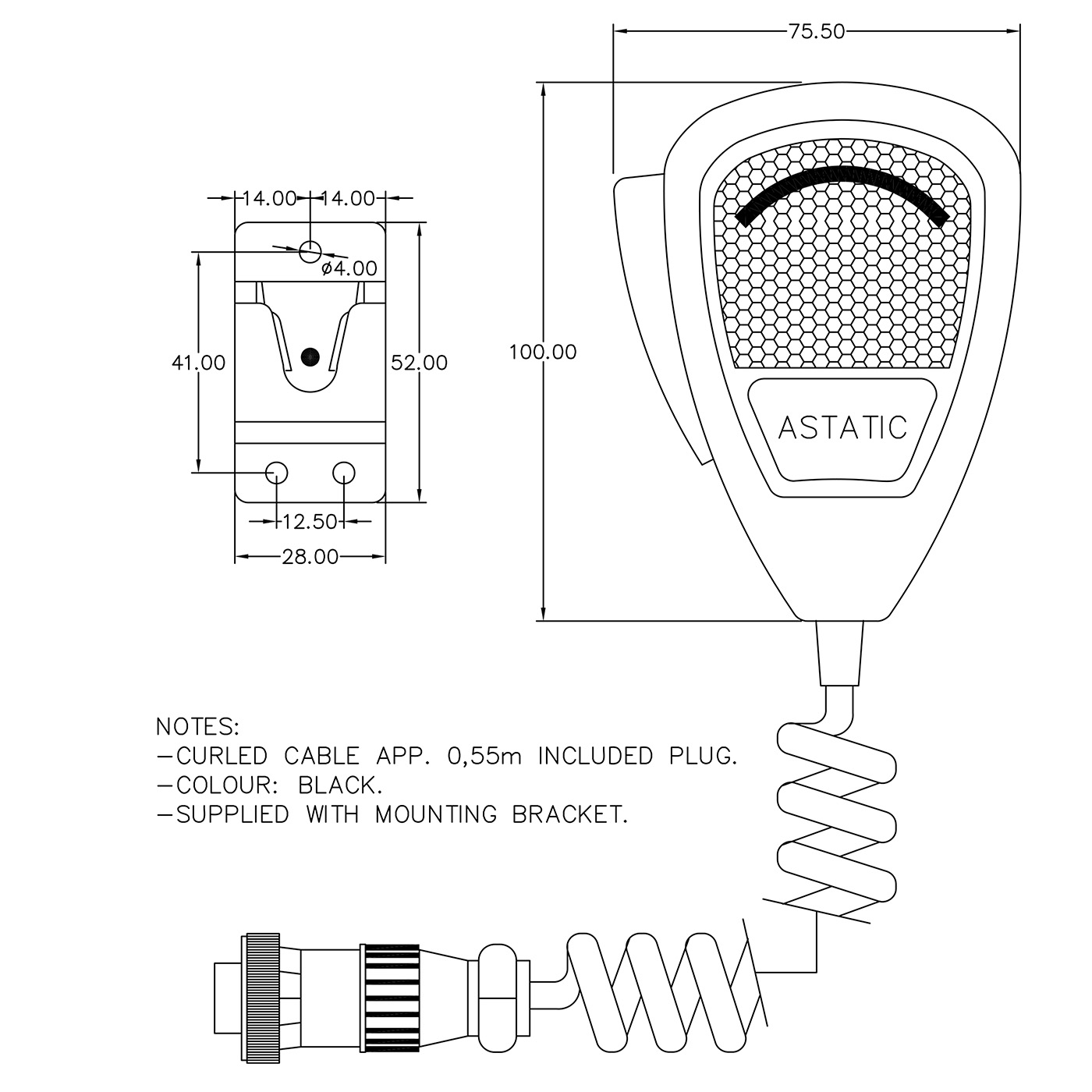

Dimensions (WxHxD) 76x100x67mm
Weight 0.3 kg
Material Molded cycolac
Colour Black, RAL 9005
Electrical
Power Supply From Central

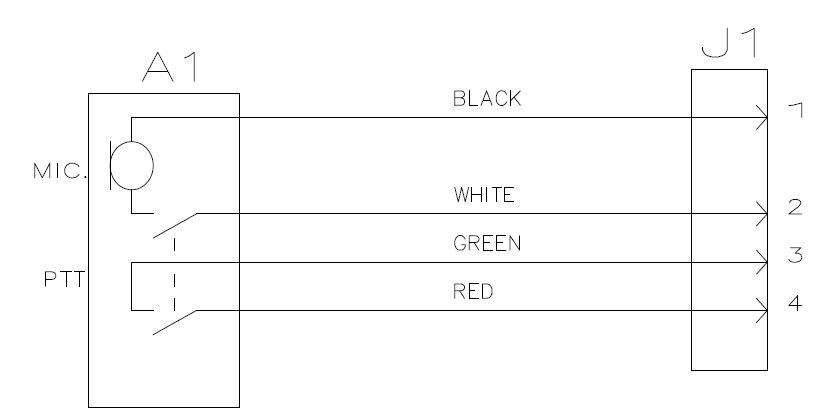

Termination Plug, AMP 4-pin
Compass Safe Distance > 5 m
Environmental
Temperature -25°C to +55°C (Storage: -25°C to +70°C)
Humidity +95% (at +40°C)
Ingress Protection Rating IP-20
