SPA-M1-V2-MED

Item Number: 2340110047

PA Panel Single, All-Call, Flush, Green Backlight

MED EU Certification icon MED Certification
Marine 40x40 ico Onboard communication
  • PA Panel for single system, all call
  • Built-in pre-amplifier with preset signal level and tone controls
  • TALK button on panel
  • Flush mounting, back box for wall mounting is available
  • Local mute contact for external loudspeaker
  • Buttons backlight with green illumination

This panel gives All Call Message in a SPA-V2 public address and general alarm single system. Installation in consoles or wall indoor.

Local mute function is used to break audio to loudspeakers where proximity to pa panel cause feedback. This function must be in combination with relay box.

Note: Microphone must be ordered separately.

General

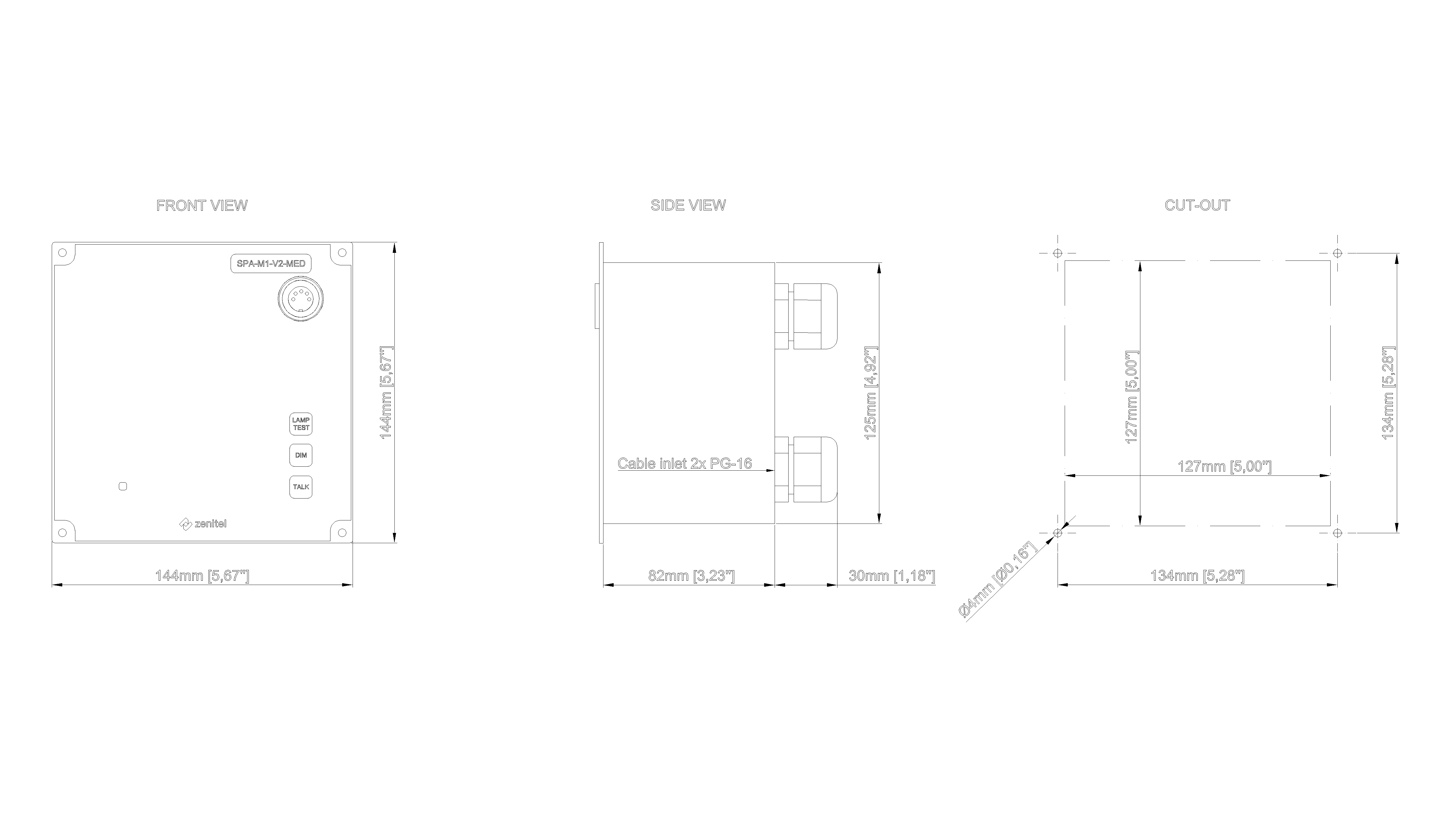

Size (WxHxD) 144 x 144 x 82
Weight w/microphone 0. 5 kg
Material Black anodized aluminium
Mounting Flush, wall with use of back box
Output signal 0.775Vrms / 0dB
Connections Plugable screw terminals for 2.5 mm2 cable
Cable glands 2 x PG-16
Cable size 6 x 2 x 0.75mm2
Local mute relay, output 24V DC @ maximum 50 mA
IP-rating IP-44
EN60945 environmental category Protected
Compass safe distance 0.75 m
Operator & reading distance 0.7m

SPA-M1-V2

SPA M6 Box

SPA-M6BOKS

Wall-mount box for SPA-M1/M6 and VM15/50-RD panels

PAM2H

Handheld Microphone for SPA-V2 indoor panels.

SPA-M1-D

SPA-M1-D

PA Panel Dual, All-Call, Flush, Green Backlight
