Item Number: 2340110041

Weatherproof PA Panel

MED EU Certification icon MED Certification
IP66 IP66
  • Weatherproof PA panel for single system
  • Built-in pre-amplifier with preset signal level and tone controls
  • Requires microphone with PTT
  • Plug for WP handheld microphone P-66 or P-66/10
  • Wall mounting outdoor / Indoor
  • Local mute contact for external loudspeaker (from hardware version 4.0)

This waterproof panel gives All Call Message in a SPA-V2 public address and general alarm single system.
Local mute function is used to break audio to loudspeakers where proximity to pa panel cause feedback.

Available from hardware version 4.0 This function must be in combination with relay box.

GENERAL

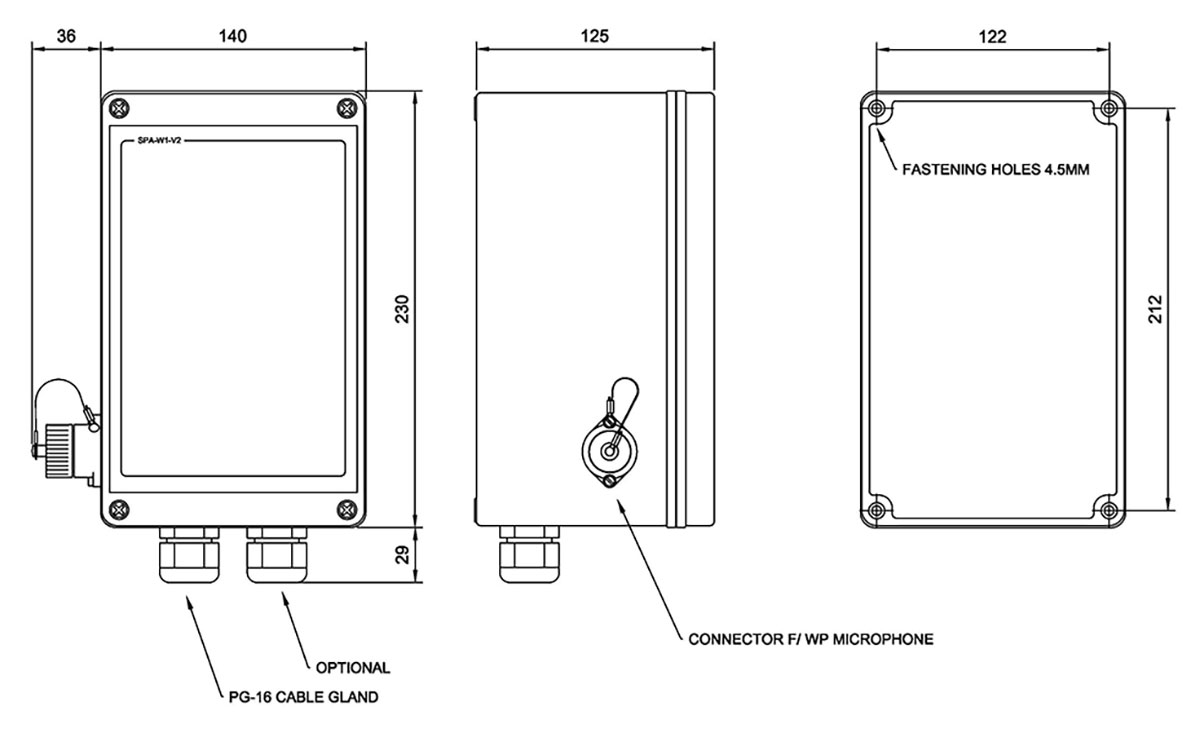

Size (WxHxD) 140 x 230 x 125
Weight 0. 5 kg
Material ABS plastic
Mounting Wall
Output signal 0.775Vrms / 0dB
Sensivity microphone 200 ohm / 0,5mV
Connections Plugable screw terminals for 2.5 mm 2 cable
Cable glands 2 x PG-16
Cable size 6 x 2 x 0.75mm2
Protection IP-66
Operating temperature -25°C TO +55°C
EN60945 environmental category Exposed
Compass safe distance 0.75 m

P-66

P-66

Handheld Microphone Waterproof

P-66 Handheld Microphone

P-66/10

Handheld Microphone with 10-Meter Cable Waterproof
