TKIS-1 SIP and IP intercom module supporting HD voice

TKIS-1

Turbine Kit IP Standard

View DataSheet

Item Number: 1008131010

Last modified

21.11.2022

Français

Got any questions? Contact us for more information.

Contact

Name *

Email *

Phone

Company *

Country *

State *

Province *

Message *

Leave this field blank

Related Information

Description

Build your own IP Intercom station or Help-Point
Make your own 10W IP Speaker
Control relay and I/Os over IP
Supports Exigo, AlphaCom, IC-EDGE and SIP (for use with any IPBX)
Supports a wide set of IP networking standards
DIN-rail mountable clips included
Add VoIP/CCoIP to your parking solution, cash point, vending machine, et al
Remote software upgrade, configuration and monitoring
Powered from the IP network cable using Power over Ethernet (PoE)
Advanced audio technology like automatic gain and volume adjustment, background noise cancellation, open duplex, etc.

The TKIS-1 Turbine Kit IP Standard utilizes the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Active Noise Cancellation, Automatic Volume Adjustment, MEMS microphone support, and a 10W Class D amplifier. These features, in conjunction with over 70 years of experience with acoustic technology are only a few of the many factors that make our audio quality second to none.

See also: additional documentation on wiki.zenitel.com (Note that this refers to the TKIS-2, which is the TKIS-1 in a plastic encapsulation)

Specifications


AUDIO
Noise cancelling - suppression of musical noise	YES
Noise cancelling - suppression of static noise	YES
Noise cancelling - suppression of rapidly changing noise	YES
Codecs	G.711, G.722, G.729
Frequency range, G.722 Codec	200 Hz – 7000 Hz
Audio technology	Modes: Full open duplex, switched open duplex, Adaptive jitter filter, Local tone generator, Audio mixing - 3 channels, Sound level detection (scream alarm), Automatic gain control (microphone), Automatic volume adjustment
Internal speaker amplifier	10 W class D
Supported microphone technologies	Digital MEMS, omnidirectional microphone. Electret omnidirectional microphone
Recommended loudspeaker impedance	8 ohm


HARDWARE
Ethernet connector	1 x RJ 45
All other connectors	Tool less, spring loaded, vibration proof terminals
General inputs and outputs	6 (configurable)
Outputs	12mA as LED drivers
Change-over relay (NO+NC+COM)	Max: 250VAC/220VDC, 2A, 60W
Power options	PoE and or external power supply
PoE (power over Ethernet)	IEEE 802.3af standard, Class 0 (0.44W to 12.95 W)
External power supply	24 VDC (16 – 48 V)
Power consumption	Idle 1.8W, max 12W (depending on volume)
Audio line out / induction loop signal	600 Ohm


NETWORKING AND PROTOCOLS
Protocols	IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, STENTOFON CCoIP® , NTP
LAN protocols	Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x)
Management and operation	HTTP/HTTPS (Web configuration) DHCP and static IP + IC-EDGE. Remote automatic software upgrade. Centralized monitoring
Advanced supervision functions	E.g. network test, tone test, status reports
SIP support	RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info)
DTMF support	RFC 2833, 2976 (SIP info)


ENVIRONMENT AND COMPLIANCES
Operating temperature range	-40° to 70° C / -40° to 158 ° F
Storage temperature range	-40° to 70° C / -40° to 158 ° F
Relative humidity	< 95% not condensing
EMC	CE and FCC Part 15
Certificates	UL 60950-1, cUL 60950-1, CB to IEC 60950-1


OTHER SPECIFICATIONS
IP address information	Speaks IP address after system boot (requires connected loudspeaker)
Country of manufacture	Poland
Dimensions (HxWxD)	32 x 117 x 71 mm
Weight	0.1 kg / 0.2 lbs

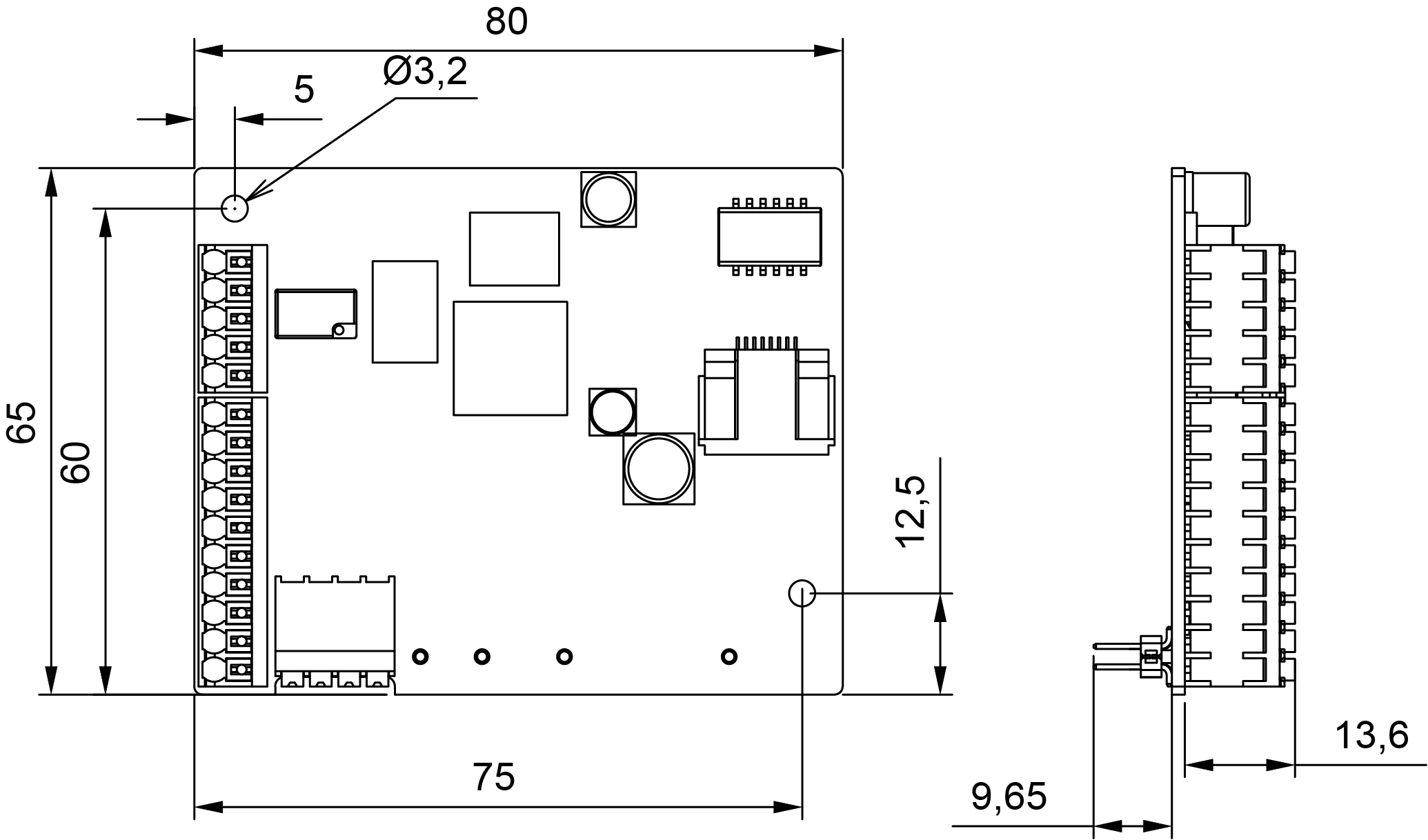

Dimensions

Accessories

Date	Name	Category	Size	Download file
21.11.2022	UKCA Declaration TKIS-x	Declaration	170.36 KB	Download
01.05.2022	A100K11194 Turbine Stations Technical Manual	Manual	15.08 MB	Download
08.02.2021	RoHS Declaration 2021	Declaration	3.24 MB	Download
12.11.2020	TKIS-1 CAD Drawing	CAD 2D	402.04 KB	Log in / Register to download
29.10.2020	IECEE CB Test Certificate DK-104921-UL TCIx/TCIVx	Certificate	199.57 KB	Download
27.06.2013	1008131010-CE TKIS-1 Declaration of Conformity	Declaration	135.73 KB	Download
