TMIV-1+

Item Number: 1008117010

IP & SIP Video Intercom

  • Powerful audio technology including high sound pressure, automatic volume gain control, and active noise echo canceling
  • HD video up to 1080p resolution
  • Wide angle lens
  • ONVIF Conformant
  • Background noise cancellation
  • Built to last with robust die-cast aluminum frame
  • Supports wide set of IP and networking standards
  • White thermoplastic front plate with one button
  • Ideal for Building Security and Public Environments
Video Intercom
SIP
Avaya Certified Avaya Certified
Cisco Certified CISCO Certified
ONVIF Conformant
UL Mark UL Certified Intercom
IC-Edge
alphacom_40x40 ICX-AlphaCom
IP66 40x40 ico IP44
HD Voice HD Voice
Automatic Gain Control Automatic Gain Control
Active Noise Cancelling Active Noise Cancelling
H.264

The TMIV+ Turbine Mini Video Intercom combines unrivaled high-quality audio with exceptional video, providing users a communication solution for any situation and allowing seamless integration with other security systems. The TMIV-1+ is designed for indoor and outdoor use and is typically used as a communication, information or emergency point and door station, and connects directly to the IP network. This makes it easy to deploy anywhere and at any distance.

The TMIV-1+ Video Intercom comes with many features, some of which include: HD voice quality, Open Duplex, Active Noise Cancellation, MEMS microphone, a 10W Class D amplifier, wide FoV HD Video, Digital PTZ, and support for H.264 and MJPEG. These features, in conjunction with Zenitel's decades-long experience with acoustic technology, are just a few of the many factors that contribute to our superior audio and video quality.

AUDIO
SPL peak power in half and open duplex 90 dB
Noise cancelling - suppression of musical noise Yes
Noise cancelling - suppression of static noise Yes
Codecs G.711, G.722, G.729
Frequency range, G.722 Codec 200 Hz – 7000 Hz
Audio technology Modes: Full open duplex, switched open duplex,
Adaptive jitter buffer
Custom Ringing Tone
Audio Mixing – Conversation and Group Call
Sound Level Detection / scream alarm (in AlphaCom mode)
Automatic gain control (microphone)
Internal speaker amplifier 10 W Class D
Internal speaker 1 W
Microphone technology Digital MEMS, omnidirectional microphone
Automatic Volume Control (AVC) Yes
Acoustic Echo Cancellation (AEC) Yes
VIDEO
Image Sensor 1/2.5" RGB CMOS
Lens F 2.0, fixed iris
Light Sensitivity Down to 1 lux
Resolution 240 / 480p / 960x720p / 1440x1080p *
Frame Rate Up to 30 FPS in 1440x1080p **
Supported Codecs MJPEG, H.264 ***
Digital PTZ Yes
Digital Zoom Up to 2x
Field of View Configurable up to 180 degrees horizontally and vertically
Parallel Video Streams 6 (1x SIP H.264, 2x HTTP MJPEG, 3x RTSP sessions)
* MJPEG does not support 720p and 1080p resolution.
** 30 FPS is only supported in H.264 mode, while MJPEG is limited to 10 FPS.
*** AlphaCom mode supports only RTSP H.264 mode, while other modes support SIP H.264.
HARDWARE
Ethernet connector 1 x RJ45
All other connectors Tool less, spring loaded, vibration proof terminals
General inputs and outputs 6 (configurable)
Outputs 12mA as LED drivers
Change-over relay (NO+NC+COM) SELV
Power options PoE, PoE+, external power supply
PoE (power over Ethernet) IEEE 802.3af standard, IEEE 802.3at
External power supply 24VDC - 48VDC
Power consumption Idle 3.5W, max 12W (depending on volume)
Audio line out / Induction loop signal 0 dBV
Button backlight LED
Call indication Icons/colors for hearing impaired
PROCESSOR/CHIPSET
CPU cores 4 x Cortex-A53
CPU clock speed 1.6 GHz
RAM 512 MB LPDDR4
Flash 1 GB
Video encoder MJPEG, H.264
Dual image Yes
CONSTRUCTION
Dimensions (HxWxD) 117 x 117 x 43.5 mm
Dimensions after flush mount 117 x 117 x 8.5 mm
Weight 0.3 kg
Button material 3 mm / 0.12” Polycarbonate (transparent)
Faceplate material 2 mm / 0.12” PMMA, colour printed on back side
Base / frame material 3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted
Electronics cover material Polycarbonate (translucent)
Loudspeaker poke protection, large diameter objects Thermoplastic faceplate with machined grille
Loudspeaker poke protection, small diameter objects Stainless steel mesh, acoustically transparent
NETWORKING & PROTOCOLS
Protocols IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
LAN protocols Power over Ethernet (IEEE 802.3 a-f), Power over Ethernet (IEEE 802.3at), Network Access Control (IEEE 802.1x)
Management and operation HTTP/HTTPS (Web configuration) DHCP and static IP. Remote automatic software upgrade. Centralized monitoring.
Advanced supervision functions E.g. network test, tone test, status reports
SIP Support RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
DTMF Support RFC 2833, 2976 (SIP info)
Integration and API AlphaCom, Scripting (plugins)
ENVIRONMENT & COMPLIANCES
Ingress Protection Rating IP44*
UV Resistant YES
Operating Temperature Range -25 to 55°C / -13 to 131°F
Storage Temperature Range -25 to 55°C / -13 to 141 °F
Relative Humidity < 95% non-condensing
EMC CE and FCC part 15
Certification UL 62368-1, EN 62368-1
Compliances EN 61000-6-1, EN 61000-6-3
*If mounted according to guidelines in the mounting manual
CERTIFICATION
ONVIF Conformant Profile S

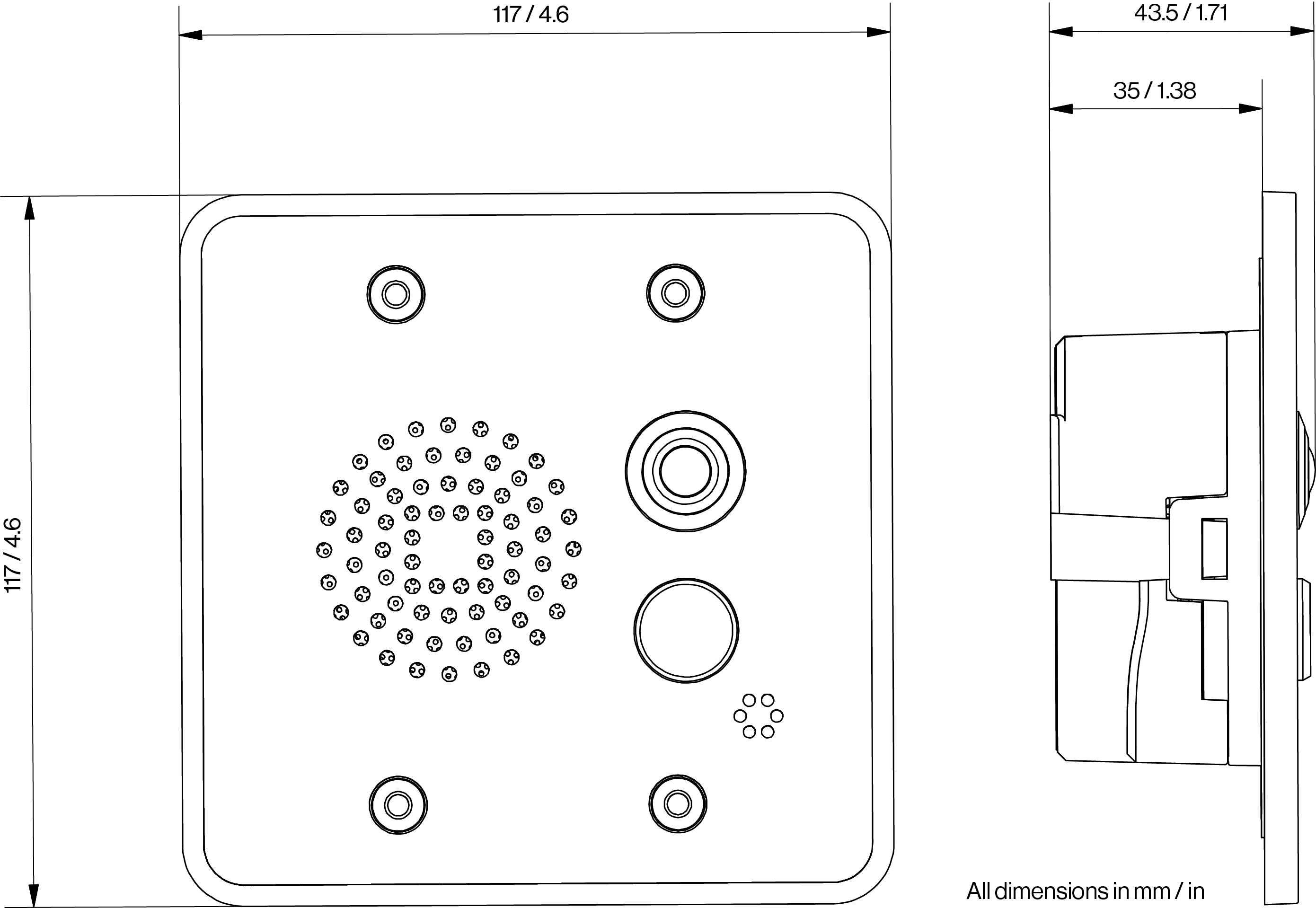

TMIV+ dimension drawing

TA-2

US 2-Gang 3½" Deep Backbox

TA-3

2½" Deep Flushmount Backbox for Turbine Compact &amp; &amp; Mini

TA-13

Turbine Mini On-Wall Back Box White

TA-32

TA-32

Turbine Mini On-Wall Back Box
