UPS-NRT-1800-230T

Item Number: 2970000043

Online UPS with extra battery 1800W/30min, 230VAC. Tower mount.

  • Tower mounting brackets
  • 4x vibration dampers
  • Extra battery
  • Runtime: 1800W / 30 minutes
  • DNV-GL Type Approved

Zenitel introduces its high-performance Online UPS, certified by DNV GL, for the marine industry's harsh environment. With double conversion technology and a sinusoidal waveform, the NRT2-U3300C ensures a reliable power supply for critical equipment like navigation systems, communication controls, and engine controls. This UPS  features permanent voltage and frequency regulation and wide input voltage tolerance. Additionally, the package includes an extra modular battery and vibration dampers. Ideal for use in switching, server, and networking devices, VoIP communication systems, control systems, and video surveillance systems, the NRT2-U3300C (Item 2970000023) offers a cost-effective solution to improve energy efficiency and reduce expenses. An optional EMC filter is also available for installation on a Bridge, according to the DNV/GL certificate.

  • Online double conversion technology with a sinusoidal waveform.
  • Permanent regulation of output voltage and frequency.
  • Wide tolerance of the input voltage.
  • No configuration is necessary on the first startup
  • Tower mount installation
  • Includes extra modular battery

NRT2-U3300C is the ideal solution for the following:

  • Switching
  • Servers and networking devices
  • VoIP communication systems
  • Public address system
  • Structured cabling systems
  • Control systems
  • Video surveillance systems

Item 2970000023 Includes:

  • NRT2-U3300C, Online UPS 3300VA 2700W.
  • NRT-B3000 Extra Battery cabinet, Capacity: 1800W - 30min; 1500W - 40min
  • NRT-FBD: Set of brackets for UPS and battery.
  • NRT-VIB2: 4 Vibration dampers

Option: EMC filter for installation on Bridge - according to the DNV/GL certificate.

For  a 19'' rack mounted version, please check:  2970000013 - Online UPS with extra batt.- 1500W/30min rack mounting. That item includes:

  • NRT2-U3300C, Online UPS 3300VA 2700W.
  • NRT-B3000 Extra Battery cabinet, Capacity:1800W - 30min; 1500W - 40min
  • NRT-OP-RAIL 19" mounting rail for UPS (*)

(*) Note: UPS includes mounting rails and it allows weight up to 100kg. If UPS and extra battery total weight exceed 100kg, the installation needs an extra NRT-OP-RAIL.

General
Sn 3300 VA
Pn 2700 W
Architecture on-line double conversion VFI with input PFC and automatic bypass
Input Rated Voltage 230 V (1ph)
Input Voltage Tolerance 175÷280 V; up to 120 V @70% load
Input Power factor / THDI > 0.99 / < 5%
Output Rated Voltage 230 V (1ph)
Output Voltage Tolerance selectable 200/208/220/240 V
Output Frequency Tolerance ± 2% (± 0.05 Hz in battery mode)
Output Power factor 0.9 @ 3000 VA
Efficiency up to 93% online mode
Overload capability up to 105% continuously; 125% for 3 min; 150% for 30 s
UPS Cabinet, Dimensions W x D x H 89 x 608 x 440 mm (2U)
UPS Cabinet, Weight 30 kg
External Battery Module, Dimensions W x D x H 89 x 608 x 440 mm (2U)
External Battery Module, Weight 43 kg
NRT-B3000 Battery Estimated time: 2100W - 27 min / 2000W - 29 min / 1800W - 34 min / 1500W - 45 min / 1000W - 68 min
IP Rating IP20
PRODUCT VARIANTS
2970000012 Online UPS with extra batt.- 1000W/30min rack mount 230VAC
2970000013 Online UPS with extra batt.- 1500W/30min rack mount 230VAC
2970000014 Online UPS with extra batt.- 3500W/30min rack mount 230VAC
2970000021 Online UPS with extra batt.- 600W/30min incl.bracket 230VAC
2970000022 Online UPS with extra batt.- 1000W/30min incl.bracket 230VAC
2970000023 Online UPS with extra batt.- 1500W/30min incl.bracket 230VAC
2970000024 Online UPS with extra batt.- 3500W/30min incl.bracket 230VAC
Accessories
2970000200 NRT-OP-REL, I/O card for Netys RT
NRT-OP-RAIL 19" Extra mounting rail for all UPS

Date Name Category Size Document

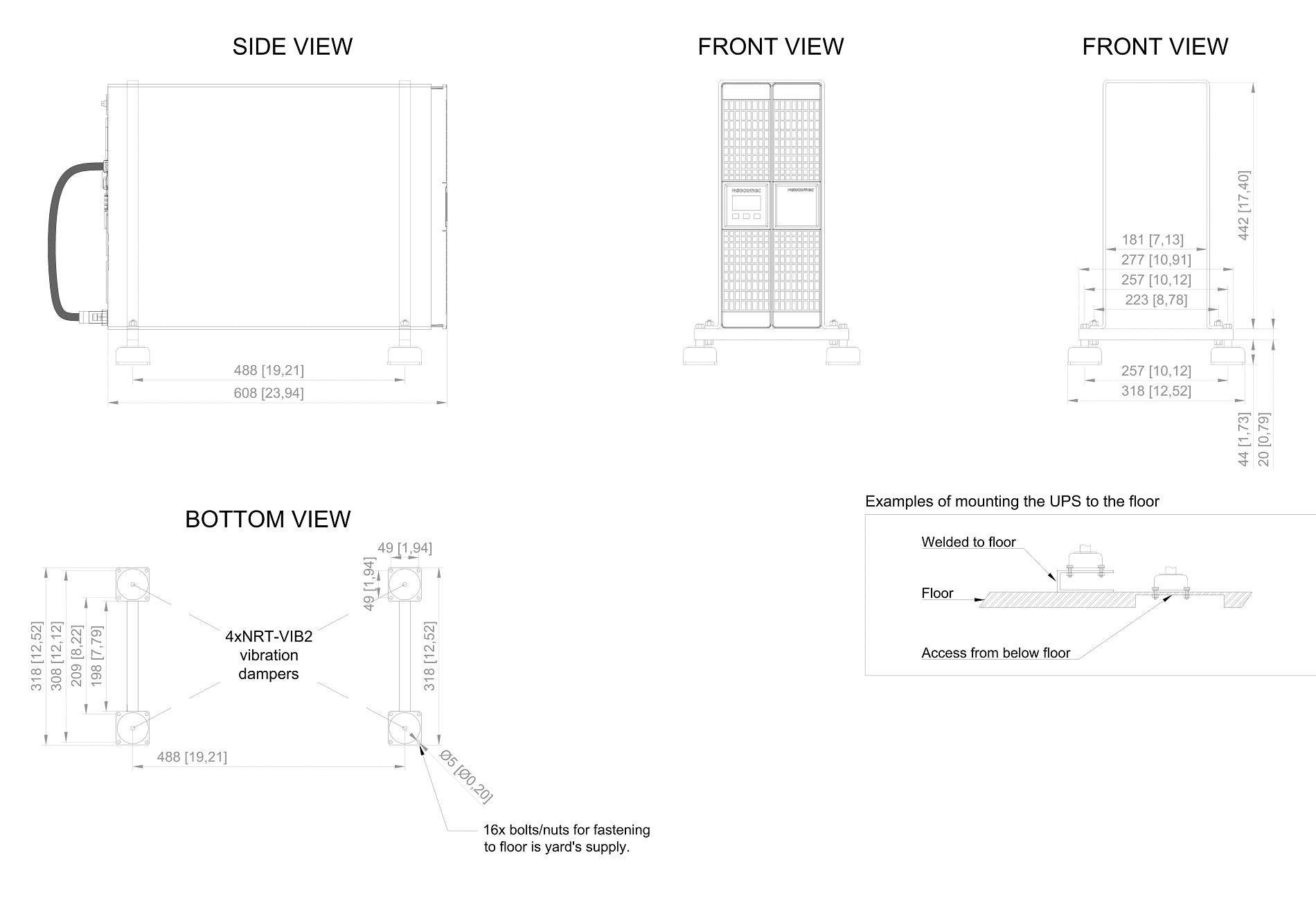

12.10.2023 2970000043 - UPS-NRT-1800-230T - Dimensional Drawing CAD 2D 762.23 KB Login to download
