UPS-NRT-600-230T

Item Number: 2970000041

Online UPS with extra battery: 600W/30min, 230VAC. Tower mount.

  • Tower mounting brackets
  • 4x vibration dampers
  • Extra battery
  • Runtime: 600W / 30 minutes
  • DNV-GL Type Approved



    Zenitel introduces its high-performance Online UPS, certified by DNV GL, for the marine industry's harsh environment. With double conversion technology and a sinusoidal waveform, the NRT2-U1100C ensures a reliable power supply for critical equipment like navigation systems, communication controls, and engine controls. This UPS features permanent voltage and frequency regulation and wide input voltage tolerance. Additionally, the package includes an extra modular battery and vibration dampers. Ideal for use in switching, server and networking devices, VoIP communication systems, control systems, and video surveillance systems, the NRT2-U1100C (Item 2970000021) offers a cost-effective solution to improve energy efficiency and reduce expenses. An optional EMC filter is also available for installation on a Bridge, according to the DNV/GL certificate.

    • Online double conversion technology with a sinusoidal waveform
    • Permanent regulation of output voltage and frequency
    • Wide tolerance of the input voltage
    • No configuration is necessary on the first startup
    • Installation inside standard 19“ rack cabinets
    • Includes extra modular battery

    NRT2-U1100C is the ideal solution for:

    • Switching
    • Servers and networking devices
    • VoIP communication systems
    • Structured cabling systems
    • Control systems
    • Video surveillance systems

    Product variants:

    Item 2970000021, UPS Bracket Mount. Includes:

    • NRT2-U1100C, Online UPS 1100VA 800W.
    • NRT-B1100 Extra Battery cabinet, Capacity: 800W for 20 minutes; 600W for 30 minutes.
    • NRT-FBD: Set of brackets for UPS and battery.
    • NRT-VIB2: 4 Vibration dampers

    Option: EMC filter for installation on Bridge - according to the DNV/GL certificate

    Rack mounted version, Item 2970000011, UPS Rack-mount includes:

    • NRT2-U1100C, Online UPS 1100VA 800W.
    • NRT-B1100 Extra Battery cabinet, Capacity: 800W for 20 minutes; 600W for 30 minutes.
    • NRT-OP-RAIL19" mounting rail for UPS (*)

    (*) Note: UPS includes mounting rails and it allows weight up to 100kg. If UPS and extra battery total weight exceed 100kg, the installation needs an extra NRT-OP-RAIL.

    General
    Sn 1100 VA
    Pn 900 W
    Architecture on-line double conversion VFI with input PFC and automatic bypass
    Input Rated Voltage 230 V (1ph)
    Input Voltage Tolerance 175÷280 V; up to 120 V @70% load
    Input Power factor / THDI > 0.99 / < 5%
    Output Rated Voltage 230 V (1ph)
    Output Voltage Tolerance selectable 200/208/220/240 V
    Output Frequency Tolerance ± 2% (± 0.05 Hz in battery mode)
    Output Power factor 0.9 @ 1000 VA
    Efficiency up to 93% online mode
    Overload capability up to 105% continuously; 125% for 3 min; 150% for 30 s
    UPS Cabinet, Dimensions W x D x H 89 x 333 x 440 mm (2U)
    UPS Cabinet, Weight 13 kg
    External Battery Module, Dimensions W x D x H 89 x 333 x 440 mm (2U)
    External Battery Module, Weight 16 kg
    NRT-B1100 Battery Estimated time: 800W - 21 min / 600W - 31 min / 400W - 54 min
    IP Rating IP20
    PRODUCT VARIANTS
    2970000012 Online UPS with extra batt.- 1000W/30min rack mount 230VAC
    2970000013 Online UPS with extra batt.- 1500W/30min rack mount 230VAC
    2970000014 Online UPS with extra batt.- 3500W/30min rack mount 230VAC
    2970000021 Online UPS with extra batt.- 600W/30min incl.bracket 230VAC
    2970000022 Online UPS with extra batt.- 1000W/30min incl.bracket 230VAC
    2970000023 Online UPS with extra batt.- 1500W/30min incl.bracket 230VAC
    2970000024 Online UPS with extra batt.- 3500W/30min incl.bracket 230VAC
    Accessories
    2970000200 NRT-OP-REL, I/O card for Netys RT
    NRT-OP-RAIL 19" Extra mounting rail for all UPS

    Date Name Category Size Document

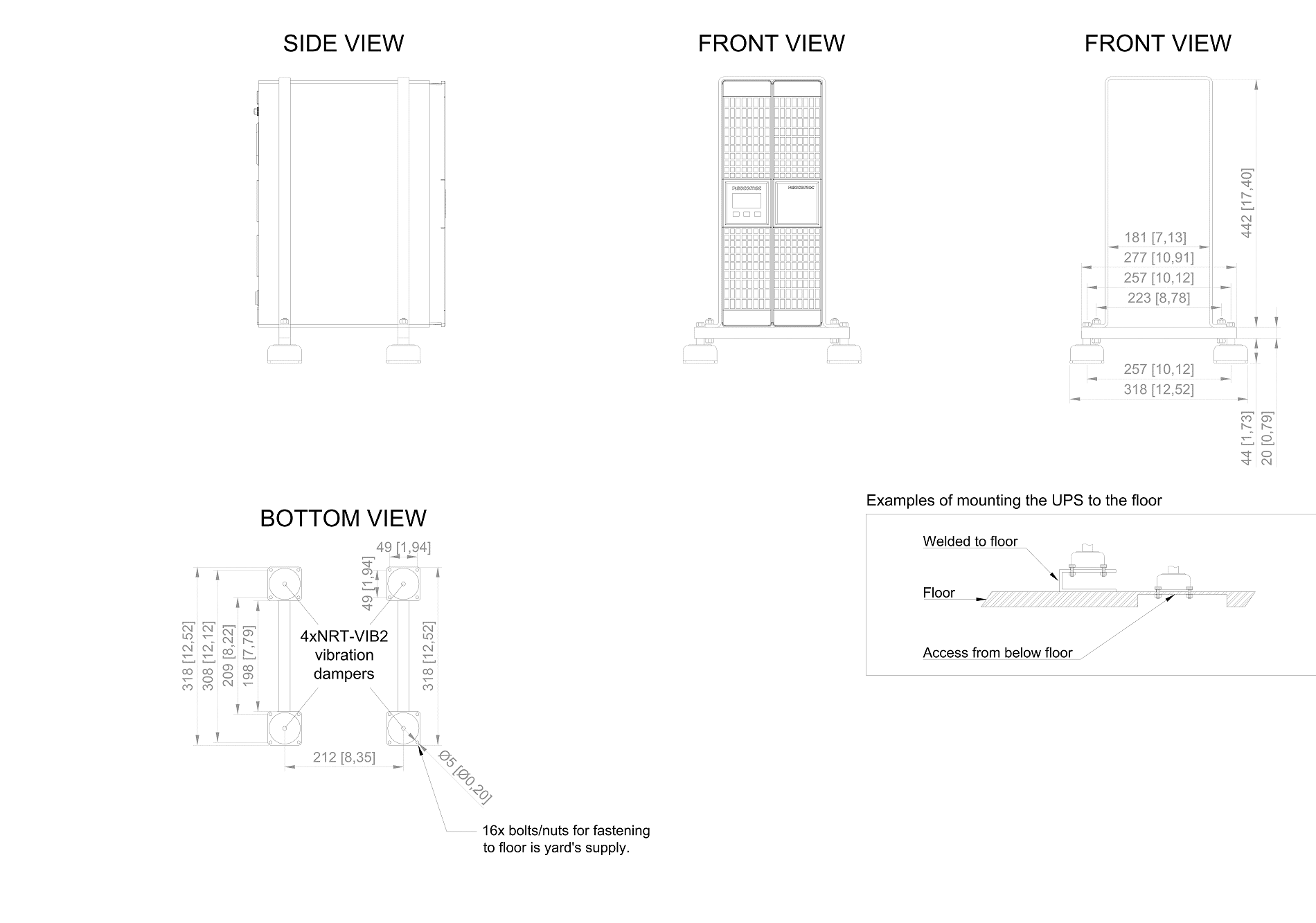

    12.10.2023 2970000041 - UPS-NRT-600-230T - Dimensional Drawing CAD 2D 497.27 KB Login to download
