Horn loudspeaker 30W 100V with fuse

VLS-30TF

Item Number: 2131000208

Horn loudspeaker 30W 100V with fuse

  • Robust and powerful horn speaker
  • Suitable for outdoor installation in harsh environments
  • Prepared for loop in/ loop out connection
  • 1x M20 gland and 1x blind plug included
IP66 IP66
  • General purpose 30W horn loudspeaker with transformer for 100V line and fuse
  • Especially suitabable for use in industrial sites or tough environments
  • ABS housing and stainless steel bracket ensures good corrosion properties
  • With 6 different power tappings: 5W, 10W, 15W, 20W, 25W, 30W



GENERAL
Dimension (mm) 315W x 170H x 350D
Material, finish ABS, grey
Mounting Bracket, stainless steel grade 304
Connection 1x M20 gland and 1x blind plug included
M20 Cable Gland Sealing Range 8.5 - 12mm
Weight 2,49 kg
Rated power 30W rms
SPL at 1kHz 108dB/1W/1m - 123dB/30W/1 m
Effective frequency range 240 - 10000 Hz
IP rating IP66
Temperature range -40 ◦C - +55 ◦C
Power tappings 30/25/20/15/10/5W
Impedance 330/400/500/670/1k/2k
Environmental Condition Exposed
OTHER
2131000207 Additional M20 cable gland for VLS-15(TF)/VLS-30(TF). Not included and not mounted.

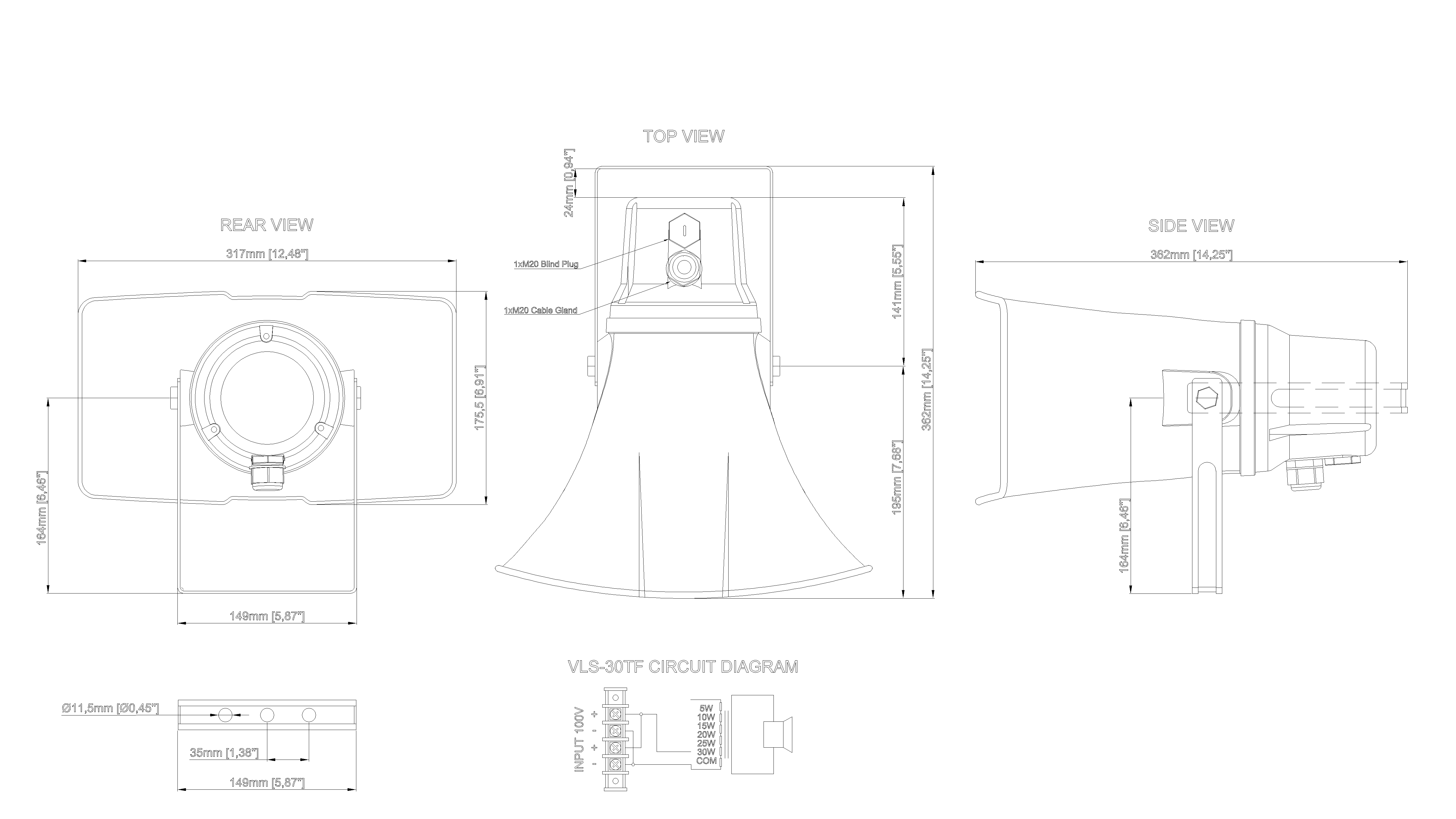

VLS-30TF dimensional drawing
