Batteryless Telephone for required onboard emergency communication

VSP-211-L

Item Number: 1020600931

Main Station - Batteryless Telephone System - 12-Way

  • 12 extensions selector switch
  • Equipped with the built-in system amplifier w/capacitor battery
  • Terminals for auxiliary 24VDC when used as Common Battery Telephones.
  • To avoid noise problems, the 24VDC must be supplied via a DC / DC converter
  • Flush mounted
  • Wall mounting with corresponding metal cabinet type MBOKS-G
  • Desk mounting with corresponding wooden cabinet type VSPC-OAK
  • Suitable for installation in wheelhouse or control room




GENERAL
Connections Screw terminals Color
Color Black
IP rating IP-44 (in console)
Dimensions (WxHxD) 238 x 205 x 137 mm (w/ handset and built-in depth)
Panel cut-out 205 x 105 mm
Weight 1.30 kg
Operating temperature range -25°C to 55°C

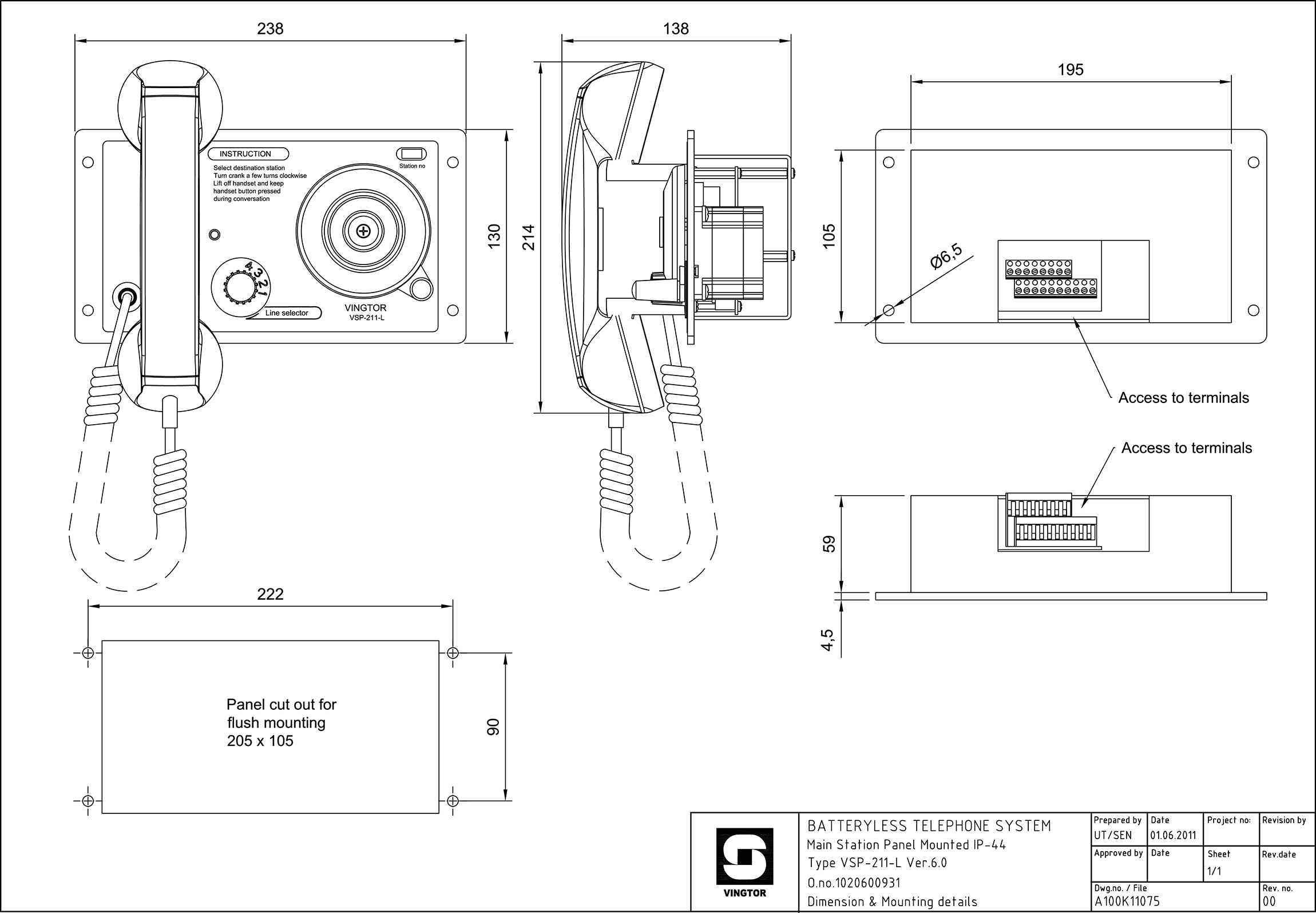

VSP-211-L Dimension Drawing

Batteryless Telephone for required onboard emergency communication

VSP-223-L

Main Station - Batteryless Telephone System - 12-Way

Batteryless Telephone for required onboard emergency communication

VSP-213-L

Main Station - Batteryless Telephone System - 12-Way

Batteryless Telephone for required onboard emergency communication

VSP-122P

Main Station Batteryless Telephone System 12-Way

Date Name Category Size Document
15.05.2023 MD-SDoC-1020600931-IHM-8003-41773-7855 Declaration 72.18 KB Login to download
25.11.2022 Declaration of Conformity VSP 11.11.2022 Declaration 79.19 KB Download
25.10.2022 VSP DNV Type Approval -TAA00001JF- Rev 1 Certificate 520.44 KB Download
14.07.2021 VSP American Bureau of Shipping PDA Certificate No. 21-2134510-PDA Certificate 2.06 MB Download
8.09.2020 VSP China Classification Society Certificate-Type-Approval Certificate 5.03 MB Download
