ZIPS-K

ZIPS-K | Indoor IP Speaker Kit

Item Number: 1016324

The Zenitel Indoor IP Speaker Kit gives you the flexibility to create customized IP speakers using Zenitel's proven IP audio technology.

  • Create customized indoor 30W IP speaker solutions
  • Adapt your solution to meet specific application requirements
  • Supports Zenitel Connect, ICX-AlphaCom, IC-EDGE and SIP (for external communication via iPBX)
  • Supports a wide range of IP networking standards
  • ONVIF compatible
  • Control relays, digital I/O and external LED beacons
  • Remote configuration, monitoring and software upgrades
  • Powered over Ethernet (PoE)
UCC Zenitel Connect
SIP
IC-Edge
ICX Alphacom logo ICX-AlphaCom
Audio
Automatic Volume Adjustment Automatic Volume
HD Voice HD Voice
Network

The Zenitel Indoor IP Speaker Kit is designed for organizations that need greater flexibility than a standard IP speaker can provide. It enables you to customize indoor IP speakers while benefiting from Zenitel's proven audio quality, interoperability, and remote management capabilities.

Whether your priority is a compact design, seamless integration into the surrounding architecture, enhanced acoustic performance, or application-specific functionality, the Indoor IP Speaker Kit provides the flexibility to tailor the final solution to your environment.

Supporting Zenitel Connect, ICX-AlphaCom, IC-EDGE and standard SIP environments, the kit integrates easily into new and existing communication systems. Remote configuration, monitoring and software upgrades simplify deployment and maintenance, while Power over Ethernet (PoE) delivers both power and network connectivity through a single cable.

With support for relay control, digital inputs and outputs, external LED beacons, ONVIF, and a broad range of IP networking standards, the Indoor IP Speaker Kit can be adapted for a wide variety of communication applications.

Ideal applications include

  • Corporate offices and public buildings
  • Retail stores and shopping centres
  • Hotels and hospitality venues
  • Schools and universities
  • Hospitals and healthcare facilities
  • Reception and information desks
  • Building entrances and access control
  • Meeting and conference spaces
  • Industrial workstations and production areas



For additional information, please see Zenitel WIki.

GENERAL
Codecs G.711, G.722
Output Power (Continuous/Peak) 7.5W/30W

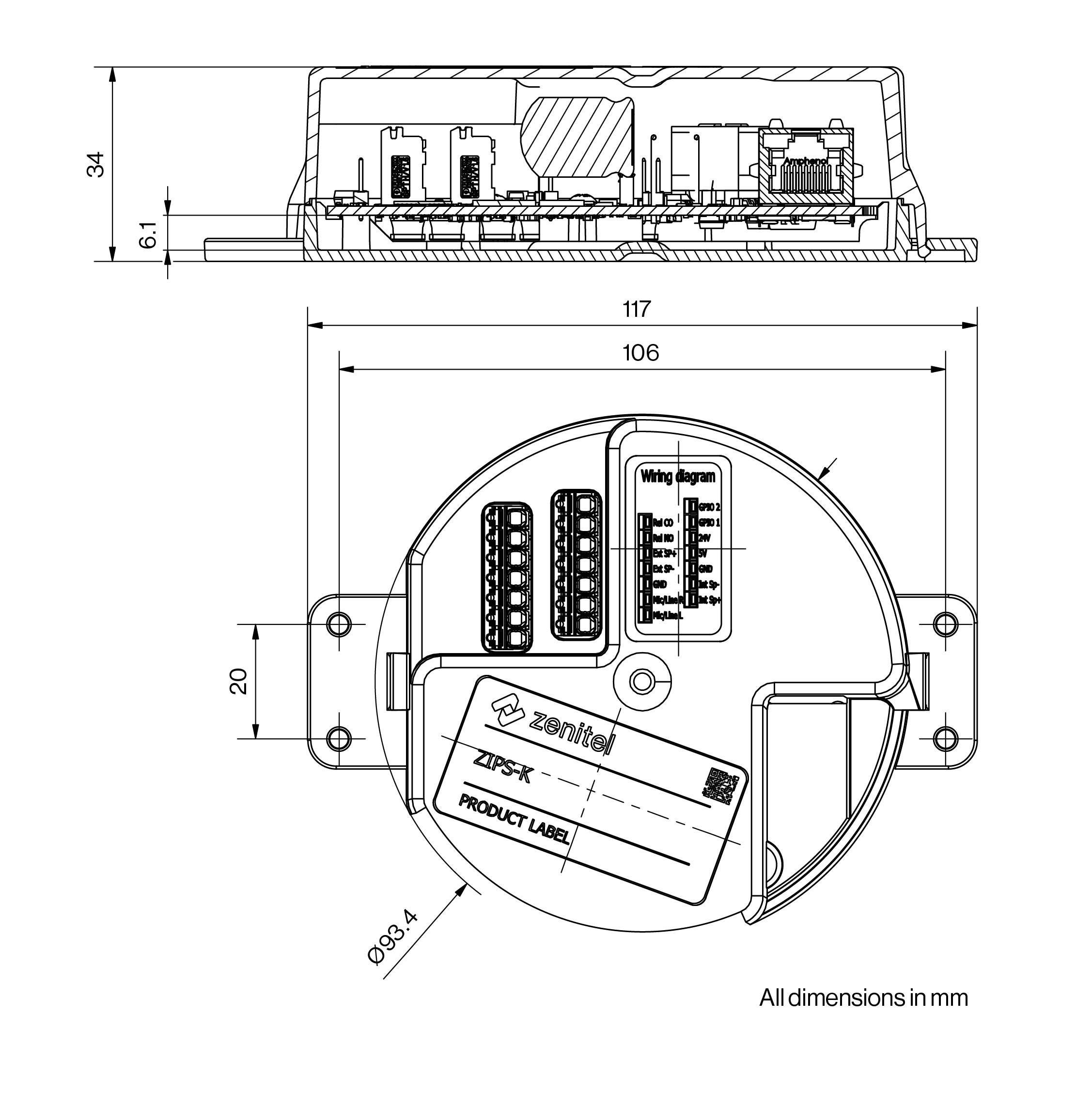

Dimensions (diameter x depth) 93.4 x 34
Weight 0.2 kg
Mounting
Material / Color ABS /
NETWORKING AND PROTOCOLS
Protocols IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, ONVIF, CCoIP® , NTP
LAN protocols Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x)
Management and operation HTTP/HTTPS (Web configuration) DHCP and static IP + IC-EDGE. Remote automatic software upgrade. Centralized monitoring
Advanced supervision functions E.g. network test, tone test, status reports
SIP support RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info)
DTMF support RFC 2833, 2976 (SIP info)
HARDWARE
Ethernet connector 1 x RJ 45
All other connectors Tool less, spring loaded, vibration proof terminals
General inputs and outputs 2x GPIO; 1x mic/line input
Auxiliary output 24 VDC output for external beacon control.
Change-over relay (NO+COM) 48V nominal, max. 100VDC, 70VAC
Power options PoE
PoE (power over Ethernet) IEEE 802.3af standard, Class 3 (6.49W to 12.95 W)
Max current consumption 0.35 A
Configurable auxiliary connector
ENVIRONMENT AND COMPLIANCES
Operating temperature range -40° to 70° C / -40° to 158 ° F
Storage temperature range -40° to 70° C / -40° to 158 ° F
Relative humidity < 95% not condensing
EMC CE and FCC Part 15
OTHER SPECIFICATIONS
System boot time Approximately 10 seconds
IP address information Speaker IP address on input short
Country of manufacture Norway
Warranty 2 Years standard warranty, extendible up to total of 5 years (additional fee)
