Desk/Wall Master Station Pro700

AA711

Item Number: 3007600052

Desk/ Wall Master Station

  • Loud-speaking hands-free communication and confidential soft-speaking handset
  • Programmable features and extension numbers
  • Total privacy, telephone mode
  • Internal 1 Watt amplifier
  • Adjustable speaker volume in 16 levels with two keys
  • An external loudspeaker can be connected to the station’s wall socket
  • 8 digit LCD display shows caller identification and message/absence information
  • Built-in relay for door-lock control or optional warning
  • Desk or wall mounting using wall bracket

The AA711 master station is the successor of AA701 with a totally new re-design in high-grade, light grey impact resistant ABS plastic with satin finish. New features of the AA711 include a built-in relay for door-lock control or optional warning, and connection for an external digit ‘6’ or ‘9’ call switch.

The station has a full 15 button keyboard and display. It can call to, and receive calls from all stations in the system, and perform all-call and group-call, emergency call and silent alarm. The LCD display shows calling and feature status as well as absence information. A tri-color LED adds status information for the user. Subscriber number and station features are programmed by switches inside the station.

Pro700 is a decentralized system which does not require any central unit, each station is microprocessor controlled, providing an extensive range of standard and programmable features. Pro700 is a fully electronic intercom system for loud-speaking hands-free duplex communication. The system is designed for up to 40 subscribers connected in star, parallel or loop on a four-wire bus. An entertainment program can be distributed on a separate two-wire line to all stations. Stations support external loudspeakers for increased sound power. AA711 is prepared for use as an operator or guard station in a Call Annunciation System (CAS) where up to 37 Call-in stations can report to 1-3 operator stations.

General

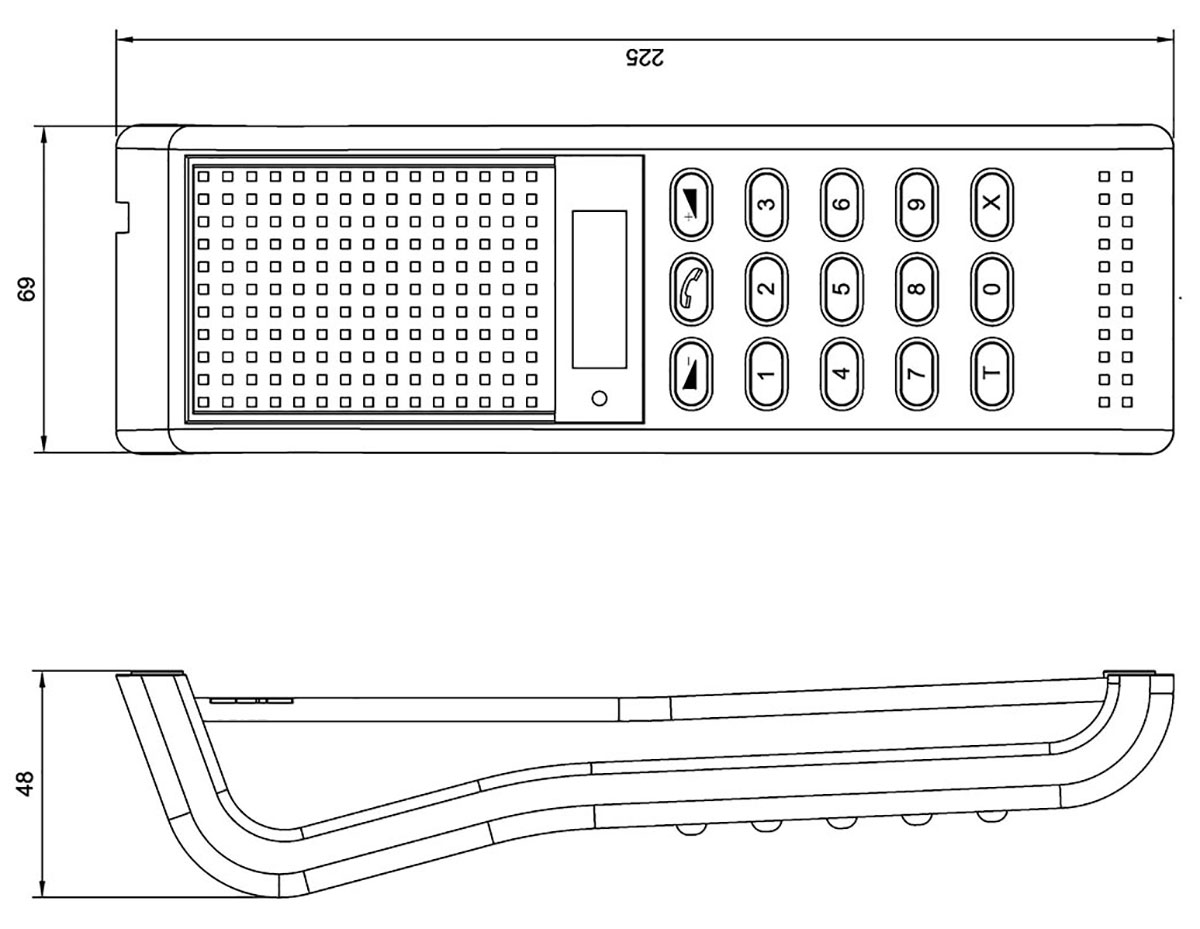

Dimensions (WxHxD) 68 x 225 x 45 mm
Weight 0.3 kg
Finish High-grade, light gray impact resistant ABS plastic with satin finish.
Mounting Table top or wall mount with bracket
Working voltage 24 V DC (12-27 V DC)
Current consumption Idle: 30 mA, Operated: 200 mA max. With ext. loudspeaker: 400 mA max

Date Name Category Size Document
3007600052 AA711 CAD 2D 129.53 KB Login to download
Declaration of conformity 3007600052 AA711 Declaration 72.67 KB Download
A100K10301 Pro700 Connections Manual Manual 247.43 KB Download
A100K10226 Pro700 Installation & Programming Manual Manual 2.81 MB Download
