DS-1280ZJ-DM46 Junction box

Item Number: 2310111161

Junction box for DS-2CD2523GO-IWS

  • Aluminum alloy material with surface spray treatment
  • Supports bottom outlet, and side outlet
  • Applies to both indoor conditions, and outdoor conditions

NOTICE

  • The junction box should be installed on the flat surface.
  • Waterproof rubber is necessary for the outdoor application.
  • The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the junction box.
  • The junction box’s maximum load capacity is 4.5 kg (9.92 lb.).
Specification
Model DS-1280ZJ-DM46
Model Junction Box
Appearance Hikvision White
Material Aluminum Alloy

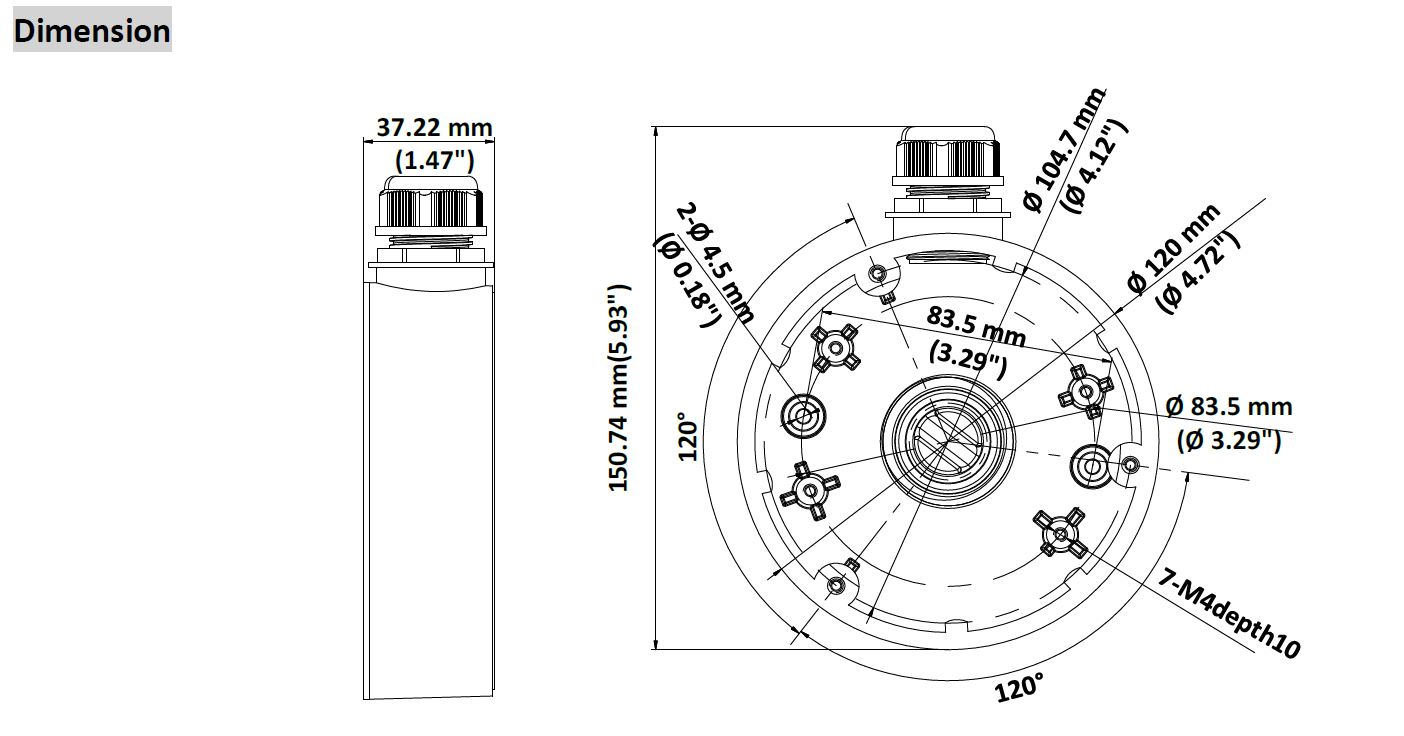

Dimension Φ 120 mm × 37.2 mm (Φ 4.72" × 1.46")
Weight 250 g (0.55 lb.)
