DS-2DY9236I-CWX (W316L)

Item Number: 2310131023

2MP 36× IR Explosion Proof Positioning System

  • 1/1.8" progressive scan CMOS
  • Up to 1920 × 1080@30fps resolution
  • Min. illumination:
    • Color: 0.002 Lux @(F1.5, AGC ON)
    • B/W: 0.0002 Lux @(F1.5, AGC ON)
    • 0 Lux with IR
  • 36× optical zoom, 16× digital zoom
  • 120 dB WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
  • Up to 150 m IR distance
  • Explosion-proof certificate: TUV 17 ATEX 8118, IECEx TUR 17.0049
  • Support H.265+/H.265 video compression
ONVIF Conformant
Marine 40x40 ico Onboard communication
Atex

The DS 2DY9236I CWX(W/316L) 2MP 36× IR (DarkFighter) Explosion Proof Positioning System adopts 1/1.8" progressive scan CMOS chip. With the 36× optical zoom lens, the positioning system offers more details over expansive areas.
The explosion proof positioning system is equipped with explosion proof enclosure made of stainless steel. It can be widely used in the scenes such as port, wharf, petrochemical vessels, navy vessels etc.

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • 36x optical zoom provides close up views over expansive areas
  • Corrosion resistant to NEMA4X standard



Description

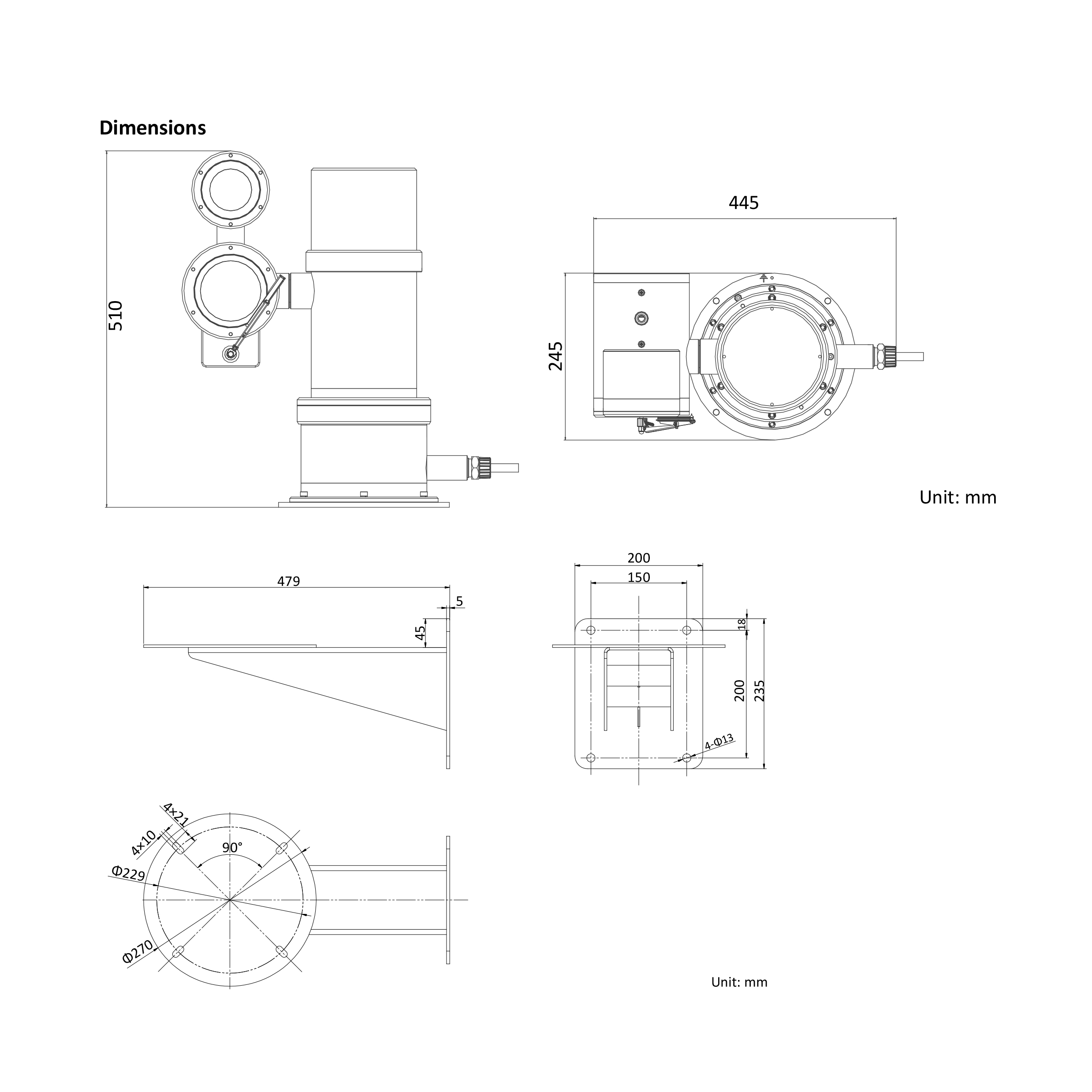

Dimensions 445 mm×245mm×510mm
Weight 36.7kg
Power 100 VAC to 240 VAC, Max:100 W (Max.15 W for IR)
Enclosure Material SUS316L
Working Temperature -40°C to 60°C
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Ethernet 1× RJ45 100M self-adaptive Ethernet interface
Max. Image Resolution 1920×1080
Main Stream 50Hz: 25fps (1920×1080,1280×960,1280×720), 60Hz: 30fps (1920×1080,1280×960,1280×720)
Sub Stream 50Hz: 25fps (704×576,640×480,352×288), 60Hz: 30fps (704×480,640×480,352×240)
Third Stream 50Hz: 25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288), 60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Video Compression Main Stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
ROI Main stream, sub-stream, and third stream respectively support four fixed areas
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Users Up to 32 users; 3 levels: Administrator, Operator and User
Security User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Audio Interface 1-ch audio input and 1-ch audio output
Alarm Interface 7-ch alarm input and 2-ch alarm output
Alarm Linkage Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.
Pan Range 360°endless
Pan Speed Configurable, from 0.1°/s to 50°/s, Preset speed: 50°/s
Tilt Range From -90° to 90° (auto-flip)
Tilt Speed Configurable, from 0.1°/s to 40°/s Preset Speed: 40°/s
Proportional Zoom Support
Number of Preset 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Smart Features Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception, Face Detection, Audio Exception Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection.
Focal Length 5.7mm to 205mm, 36× optical zoom
Zoom Speed Approx. 4.4s (optical lens, wide-tele)
Field of View Horizontal field of view: 59.8° to 2.0° (wide-tele); Vertical field of view: 35° to 1.1° (wide-tele); Diagonal field of view: 66.2° to 2.3° (wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.5 to F4.5
Image Sensor 1/1.8" progressive scan CMOS
Minimum Illumination Color: 0.002 Lux @(F1.5, AGC ON); B/W: 0.0002 Lux @(F1.5,AGC ON); 0 Lux with IR
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
WDR 120dB
Shutter Time 50Hz: 1/1s to 1/30,000s; 60Hz: 1/1s to 1/30,000s
Day& Night IR cut filter
Zoom 36× optical zoom; 16× digital zoom
Accessories
2310131021 DS-2780ZJ-X/316L Ex-proof Junction box
