ENA2200-AC2

Exigo Network Amplifier 2 x 200W AC

View DataSheet

Item Number: 1023102210

Last modified

02.01.2023

Got any questions? Contact us for more information.

Contact

Name *

Email *

Phone

Company *

Country *

State *

Province *

Message *

Leave this field blank

Related Information

Description

The Exigo Network Amplifier is designed for use in marine, offshore and other demanding environments. The amplifier utilizes state-of-the-art class D amplifier technology to ensure high power efficiency and superb audio quality.

The Exigo Network Amplifier is part of the Exigo PA/GA system, which is based on standard Ethernet network and digital processing. Each amplifier has two network connections, allowing for redundant cabling between the amplifier and the network. Using standard network equipment also allows for a much wider selection of standard network equipment.

The digital audio processing and maintenance of the amplifier is done with the embedded CPU and DSP. These components allow the amplifier to do advanced audio processing such as automatic gain control and equalizing while also maintaining a robust connection to the system controllers.

The complete amplifier is self-monitoring and this includes advanced monitoring of the speaker lines and internal system. The audio output channels can be monitored for line faults such as shorts, ground faults and large load changes. In addition, up to 10 intelligent Line End Transponders (ELTSI) can be placed on the speaker lines for additional accuracy in the line monitoring. The amplifier also monitors control inputs, power supplies, temperature, network connections and every other components required for operation of essential services. Faults will be reported to the system controller, but will also be indicated locally on the amplifier.

Amplifier supports "One Channel Mode". When "One Channel mode" is activated, the two loudspeaker channels will play identical audio, and the audio will be in phase.
One can then choose to use two separate loudspeaker loops, each with maximum 200W, or one can bridge the two output channels, and use one loudspeaker loop with up to 400W load.

The amplifier’s configurable control inputs/outputs and audio input can be used locally by the amplifier or can be controlled by the system (e.g. audio input for background music). The audio line input can also be configured in a Hardware Bypass mode where audio on the line input will be forwarded to the 100V channels directly, even when no server is available. This allows for additional redundancy and functions to be built around this amplifier.

Specifications


MECHANICAL
Dimensions (HxWxD)	87 x 482 x 372 mm / 2HU
Weight	11.2 kg
Shipping Weight	12.5 kg
Mounting	19” Rack, 2HU
Color	Black


USER INTERFACE
LED Indicators	Power, Amp Fault, Line Fault, Gnd Fault, 2x LED VU meter


ENVIRONMENTAL
Operating temperature	-15 °C to +55 °C
Operating humidity	15% to 95% (non-condensing)
Storage temperature	-40°C to +70°C
Storage humidity	10% to 95% (non-condensing)
Air pressure	700 hPa to 1300 hPa
IP rating	IP-20


ELECTRICAL
Connector
Supply voltage**	100 – 240 VAC, 47-63 Hz
Inrush current	Max 18A
Power consumption*	550W (minimum 35W, maximum 850W)
	* Power consumption under rated conditions on outputs, 10 LET units, all control I/O activated
	** Power cord not included


AUDIO OUTPUTS
Output power (100V/70V)	2 x 200 Watt GA power, continuous @ 55 °C
Output line	100 volt, 70 volt
Frequency response	200 Hz to 19 kHz ±3 dB
Audio codec	G711, G722, PCM L16/48kHz
SNR	>80 dB
THD	< 0.5% @ 1 kHz
Rated load resistance	100V: 50 Ω 70V: 25 Ω
Rated load capacitance	470 nF


NETWORK
Ethernet	2 x 10BASE-T, 100BASE-TX, Auto negotiation, Auto MDIX
Protocols	Protocols IPv4 (with DiffServ), TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, STENTOFON CCoIP® , NTP
LAN Protocols	VLAN(IEEE 802.1pq), Network Access Control (IEEE 802.1x), STP (IEEE 802.1d)
Management and operation	HTTP/HTTPS (Web configuration) DHCP and static IP Remote automatic software upgrade Centralized monitoring


Line input
Frequency response	100 Hz – 20 kHz
Audio codec	G711, G722, PCM L16/48kHz
Nominal input level	100 mVRMS – 1 VRMS
SNR	>80 dB
CMRR	>130 dB
Input impedance	14 k Ω


Control inputs and control outputs
Control Inputs	2
Type	Closing contact, monitored
Control Outputs	3
Type	24 VDC ±10%, 200 mA, monitored
Fault relay	1
Fault relay outputs: (NO, COM, NC)	Max recommended levels: 100VDC/0.4A, 24VDC/3A, 125VAC/3A
Backup amplifier input	enable / disable


Certifications
Immunity	EN 60945, EN 61000-6-1 , EN 61000-6-2
Emissions	EN 60945, EN 61000-6-3, EN 61000-6-4

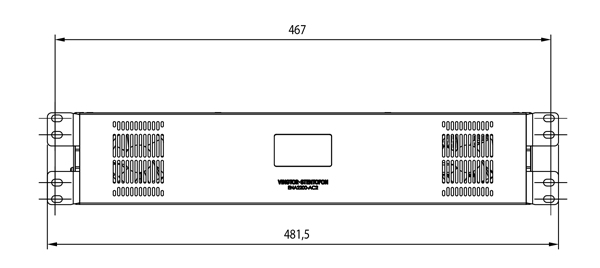

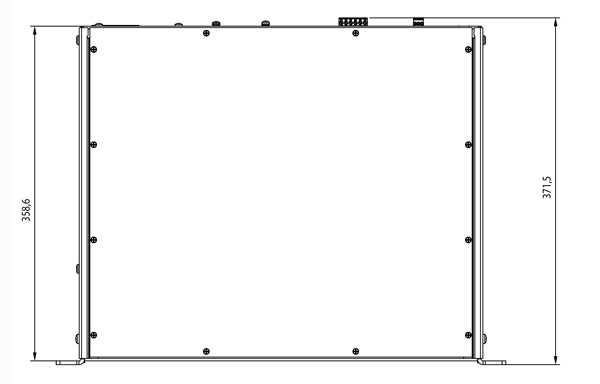

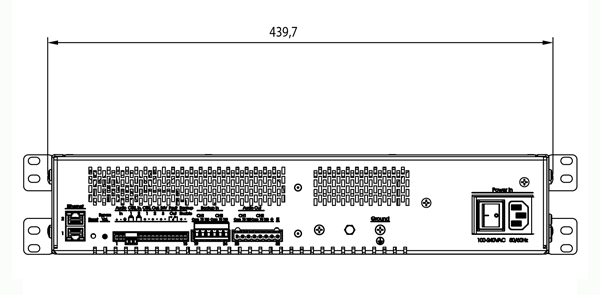

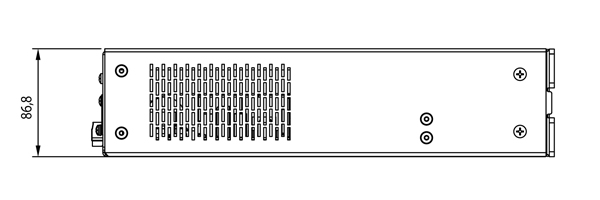

Dimensions

Accessories

Date	Name	Category	Size	Download file
02.01.2023	Exigo DNV Type Approval - TAA000003W-revision7.pdf	Certificate	570.59 KB	Download
15.12.2021	1023102210_ENA2200-AC2_Exigo_Amplifer_2x200W_2.GEN_r6.zip		2.99 MB	Download
04.11.2021	1023102210_CE.pdf	Declaration	50.31 KB	Download
