Item Number: 1023000000

Exigo System Controller

​​​​​​​IMPORTANT NOTE: This article comes without Primary System Controller (PSC). This is mandatory for Exigo System Controller operation.

  • Control and routing of audio channels
  • 115 - 230 VAC primary power and 24 - 48 VDC secondary power
  • Redundant Ethernet connections
  • Digital audio processing
  • Receives, handles and stores fault messages from the system
  • Interface to PABX and iPBX
  • Interface to telecom management, safety, automation and security systems
  • Voice message storage
  • Programmable alarm generator
  • 6 configurable control outputs
  • 6 configurable control input
EN 54 Certified
EXIGO_40x40 Exigo

The system controller is based on IP technology, giving it extreme flexibility, superb audio quality and multiple possibilities for integration. The system controller handles routing and prioritization of up to 32 simultaneous audio channels in the system where audio can be distributed from up to 150 audio inputs to up to 250 zones.

The system controller features a display where status and faults can be viewed. This display also allows configuration of simple parameters. The system controller monitors and receives status information from every component in the system. Faults are time stamped, and presented in chronological order on the display. Buttons allow an operator to acknowledge and reset faults. The network connection to every component in the system is monitored, so a defect switch or broken cable will be detected just as reliably and fast as any other fault in the system.

The system controller also acts as the system’s alarm generator and audio message storage. The embedded alarm generator features a set of the most common alarm tones, but can also be programmed to support custom alarm tones and patterns. Stored voice and audio messages is easily uploaded to the system controller as standard wav files.

The system controller’s control inputs/outputs and audio inputs can be used locally by the system controller (e.g. for PTT and audio from a handheld microphone) or can be controlled by the system (e.g. audio input for background music).

IMPORTANT NOTE: This article comes without Primary System Controller (PSC). This is mandatory for Exigo System Controller operation.

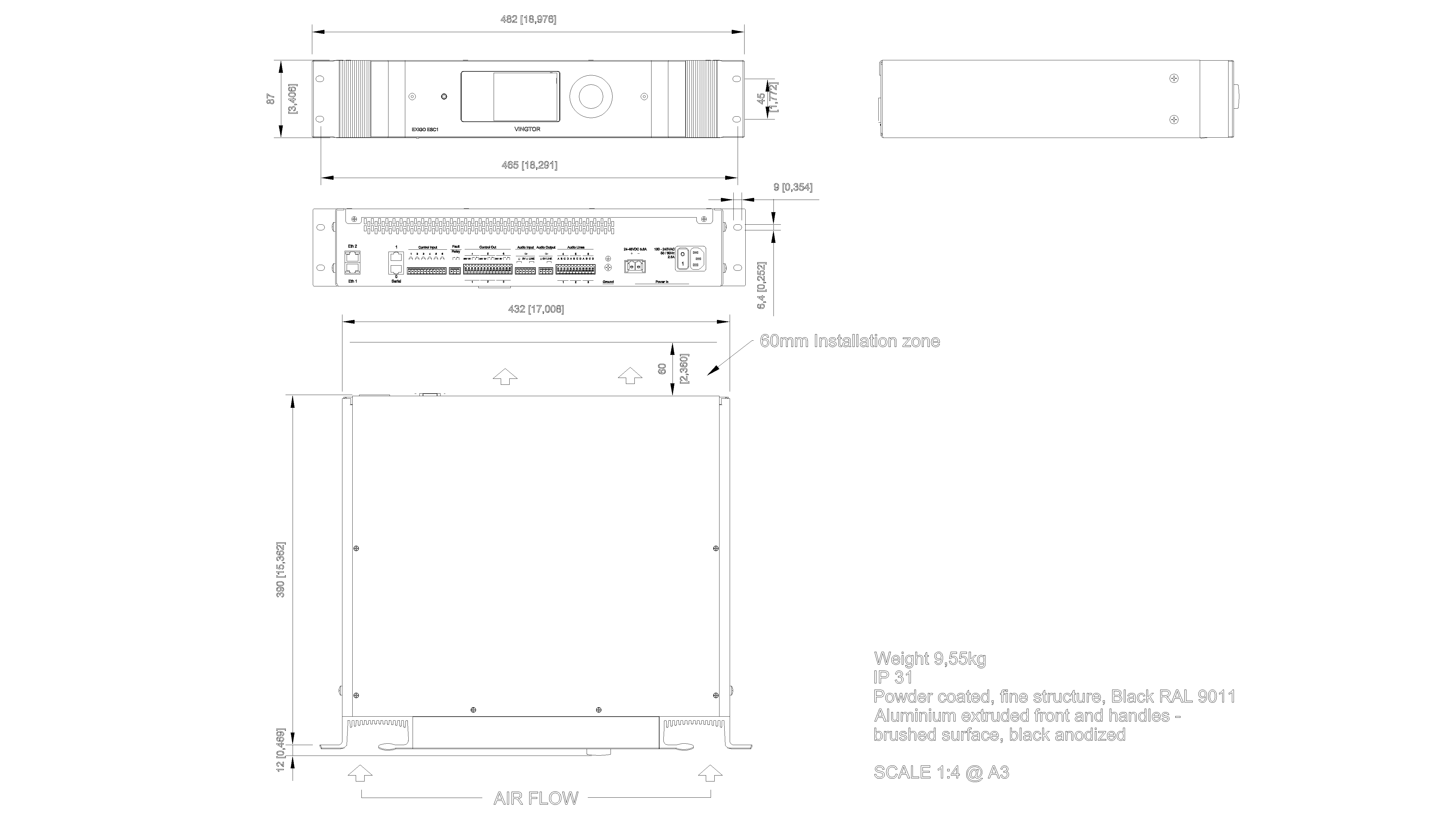

MECHANICAL
Dimensions (HxWxD) 87 x 482 x 390 mm
Weight 9.5 kg
Shipping Weight 10.5 kg
Mounting 19” Rack, 2HU
Color Black
USER INTERFACE
Display 3.5” QVGA Color TFT LCD
Button Rotary selector button with push-to-select
Indicators Primary power, Secondary power, Fault, Alarm, Disabled, In command
ENVIRONMENTAL
Operating temperature -15 °C to +55 °C
Operating humidity 15% to 95% (non-condensing)
Storage temperature -40°C to +70°C
Storage humidity 10% to 95% (non-condensing)
Air pressure 700 hPa to 1300 hPa
IP rating IP-32
ELECTRICAL
Primary
Connector V-lock, IEC 60320-1 C14 compliant
Nominal input* 110 – 230 Vac, 47-63 Hz
Secondary power
Connector Pluggable and lockable terminal
Nominal input 24 - 48 Vdc
Power consumption Pmax <100W
*) Power cord not included
NETWORK
Ethernet 2 x 10BASE-T, 100BASE-TX, Auto negotiation, Auto MDIX
Protocols Protocols IPv4 (with DiffServ), TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, STENTOFON CCoIP® , NTP
LAN Protocols VLAN(IEEE 802.1pq), Network Access Control (IEEE 802.1x), STP (IEEE 802.1d)
Management and operation HTTP/HTTPS (Web configuration) DHCP and static IP Remote automatic software upgrade Centralized monitoring
Line output
Levels 0 dBv (1Vrms)
Gain -40 dB +2dB
Levels 600 Ohm
Frequency response Hardware: 200 Hz - 19kHz
Audio codec G722
Line input
Frequency response Hardware: 80 Hz – 20 kHz
Audio codec G722
Nominal input level 100 mVRMS – 1 VRMS
SNR 80 dB
CMRR 45 dB
Input impedance 600 Ω / 10 kOhm
Microphone Input
Frequency response 80 Hz – 20 kHz
Audio codec G722
Nominal input level 1 mVRMS – 100 mVRMS
SNR 80 dB
CMRR 45 dB
Input impedance 600 Ω / 10 k Ω (selectable)
Phantom supply (optional) 12 VDC ±10% @ 15 mA (IEC 61938, P12)
Control inputs and control outputs
Control Inputs 6
Type Closing contact, monitored
Control Outputs 6
Relay outputs: (COM, NO,NC) Max recommended levels: 3A, 100Vdc, 125Vac, switching 60W/125VA
24 V outputs 24 VDC ±10%, 200 mA, monitored
Fault relay 1
Relay outputs: (COM, NO,NC) Max recommended levels: 3A, 100Vdc, 125Vac, switching 60W/125VA
Certifications
Immunity EN 60945, EN 50130-4, EN 61000-6-2*, EN 55103-2
Emissions EN 60945, EN 61000-6-4*
Safety EN 60065, IEC 60529
*When used in conjunction with PN: 1023598000 & 1023598100
Certifications

ESC1-v2

EPMS100

Exigo System Controller Spare Power Supply
