2310601051 - Impulse Amplifier - Inside
2310601051 - Impulse Amplifier - Inside
2310601051 - Impulse Amplifier Outside

Impulse Amplifier 230VAC

Item Number: 2310601051

116279-01

The impulse amplifier is intended for amplification of 24V Time Code marine

  • To amplify polarized impulses from a master clock or wired time code, TC
General
Connection 230 V AC -10% +5% 50-60Hz
Weight 0.7 kg
Crystal frequency 4,19304 MHz
μ-Controller PIC 16C54
Max. load impulse outputs TC: 1 A
Ambient temperature 0°C up to +40°C
Relative humidity Max. 85%
IP rating IP 66
Color Grey (Polycarbonate)
Dimensions W=122mm, H=162mm, D=90mm
Date Name Category Size Document

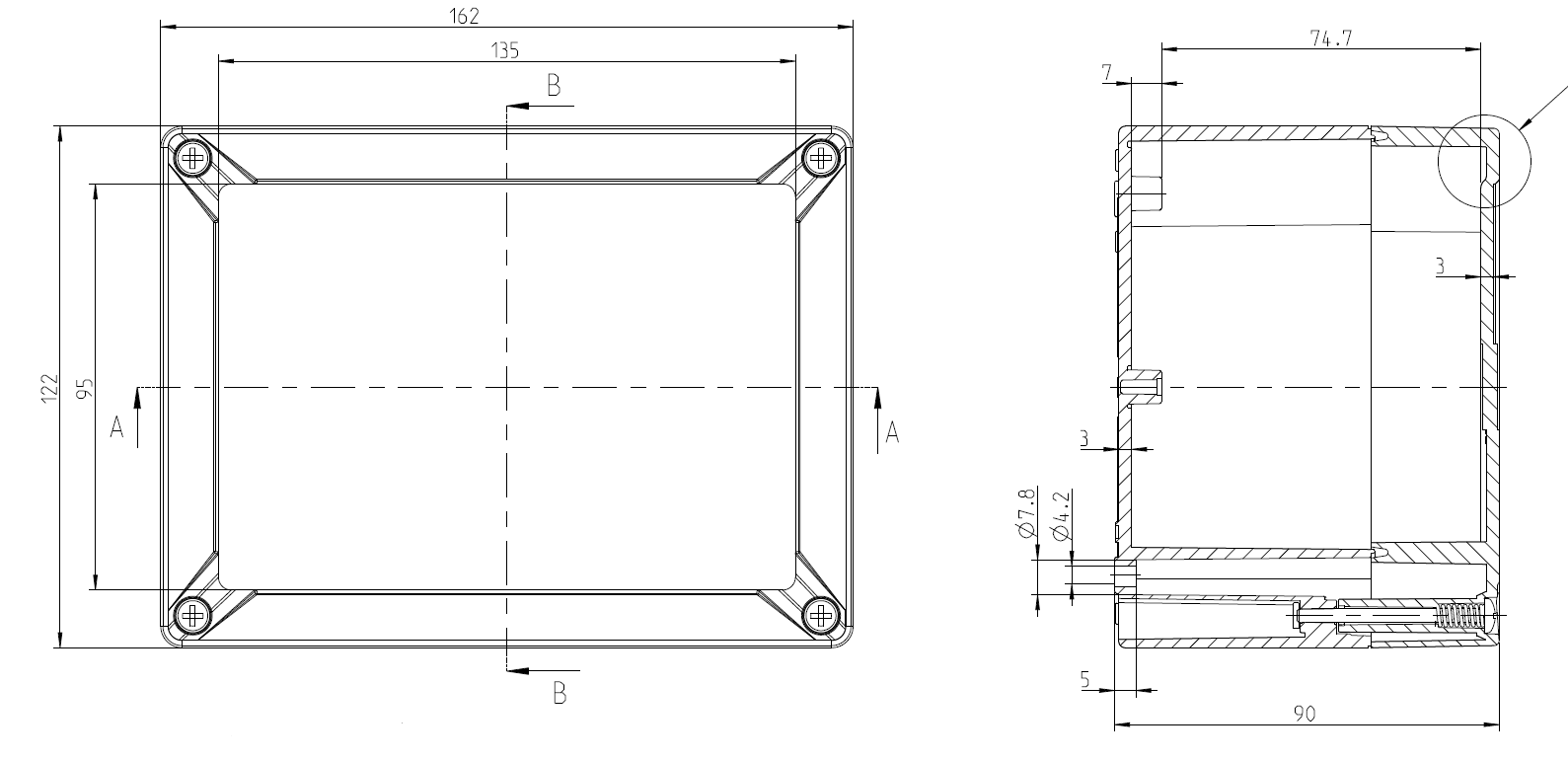

Westerstrand Impulse amplifier 116279-01 Dimensions CAD 2D 780.15 KB Download
MD-SDoC-2310601051-IHM-8003-70767-126898 Declaration 53.82 KB Login to download
Impulse Amplifier User manual Manual 1.29 MB Download
