Life Boat Extension

Item Number: 4000019615

Module for extending Microphone panel connections

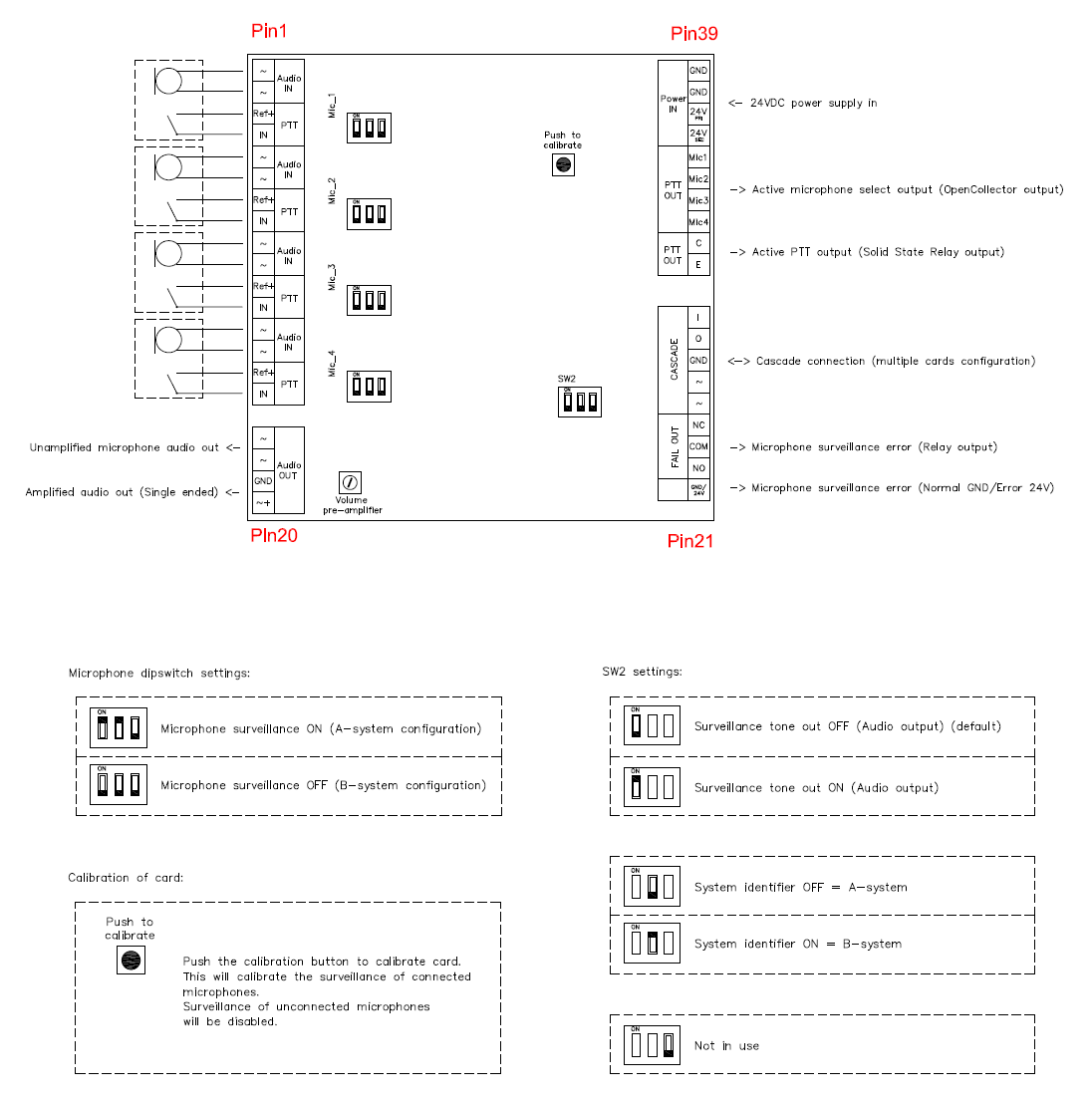

Life Boat Extension module is a function board to extend microphone panels connections from up to four (4) panels into a single connection into system.

This extension module also provides amplification of the four inputs as well as the possibility for microphone surveillance (selectable).

  • Preamplifier for microphone
  • Potentiometer for adjustable volume and sensitivity
  • Surveillance of connected microphones
  • Relay output for fault status
  • 24 VDC
  • DIN rail mounting
GENERAL
Dimension (WxH) 112 x 115 mm
Mounting DIN Rail mounting
Housing ABS
Operation voltage 24 VDC / max. 0,5A
Fault relay contact rating 48VDC / 1A
Contact set 1 pcs. C/NO/NC
Terminals 2.5 mm2
Weight 0.5 kg
Operating temperature -15°C to +55°C
Environmental Condition Protected
