P-1600 MPA Central Unit

Item Number: 4000019821

Note: This product is only available as spare part.

  • Up to 6 zones, selectable in any configuration.
  • Up to 6 MPA 1601 / 1604 Control Units
  • Up to 6 MPA 1603 Alarm Panels
  • Up to 2 emergency microphones
  • External paging facility (from ICS6200/DICS6100/PABX etc.).
  • Prepared for duplication - A/B dual system, with synchronisation.
  • Interfaces for manual and/or automatic alarms.
  • 2 entertainment sources, with free zone selection (MPA 1602)
  • Signal processing capabilities.
  • Configurable priority levels.
  • 7 audio outputs, with unlimited amplifier expansion.
  • Facility for muting of local loudspeaker during paging.
  • Override of entertainment volume-controls during paging.
  • Output for mute of external GA system.
  • Output for activation of external GA system.
  • Synchronisation with external GA tones.
  • Up to 8 different alarms in the system.
  • Up to 6 MPA 1603 Alarm Panels, with up to 4 different alarms.
  • Chime/”ding-dong” generator.
  • Alarm light signal activation.
  • Mute of external alarm facility.
  • Built-in loudspeaker, to monitor activity on zones.
  • IEC 60945 Marine Equipment, IEC60950 Safety
  • DNV GL type approval and compliant with NORSOK

The P-1600 MPA Central Unit is the system central logic controller in the MPA 1600 system. It is designed for 19" 1 Unit rack mounting.

Mechanical

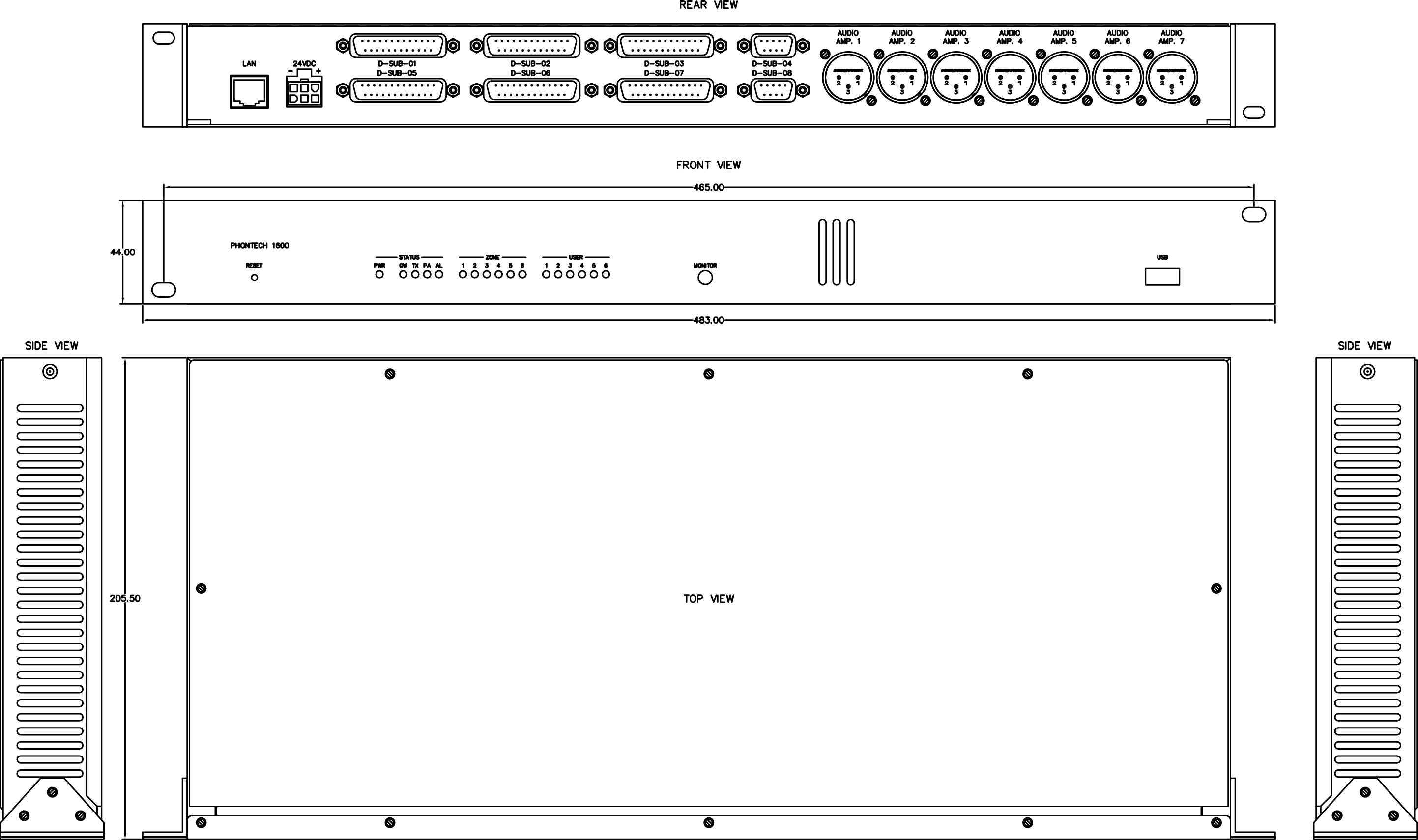

Dimensions 19” 1U rackmount, 44 x 483 x 206 mm (HxWxD)
Weight 3 kg
Mounting Rack
Electrical
Operating Voltage Dual 24VDC – primary (AC through integrated Power supply module) / backup
Current drain maximum 5 A
Microphone input level 5 mV
External PA input level 0 dBu typical (configurable)
External entertainment input level 0 dBu typical (configurable)
Audio outputs to amplifiers 0 dBu typical (configurable)
Environmental
Temperature -15°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-22
