PAM2H (MED)

Item Number: 2340110055

Handheld Microphone for SPA-V2 indoor panels.

Handheld microphone for SPA-V2 indoor microphone panels.
Bracket included
Push-To-Talk button
1.5 m durable spiral cable
Equipped with locking DIN plug
Dynamic microphonee
Undirectional noise cancelling
Rugged brass housing
Very long life switching contacts

Onboard communication

The PAM2H handheld microphone is designed for indoor use, even in noisy areas with unidirectional noise cancelling. The microphone is used on all SPA-V2 microphone panels and features a PTT button.
For correct operation and performance speaking distance approximate 2cm.

Microphone will also be suitable for our legacy ETB and CTB Talk Back systems replacing ETC-1-TB.

ITEM NUMBER	DESCRIPTION
1023533013	PAM2H Handheld PA microphone, 1 button, indoor, w/bracket. Dynamic

MECHANICAL

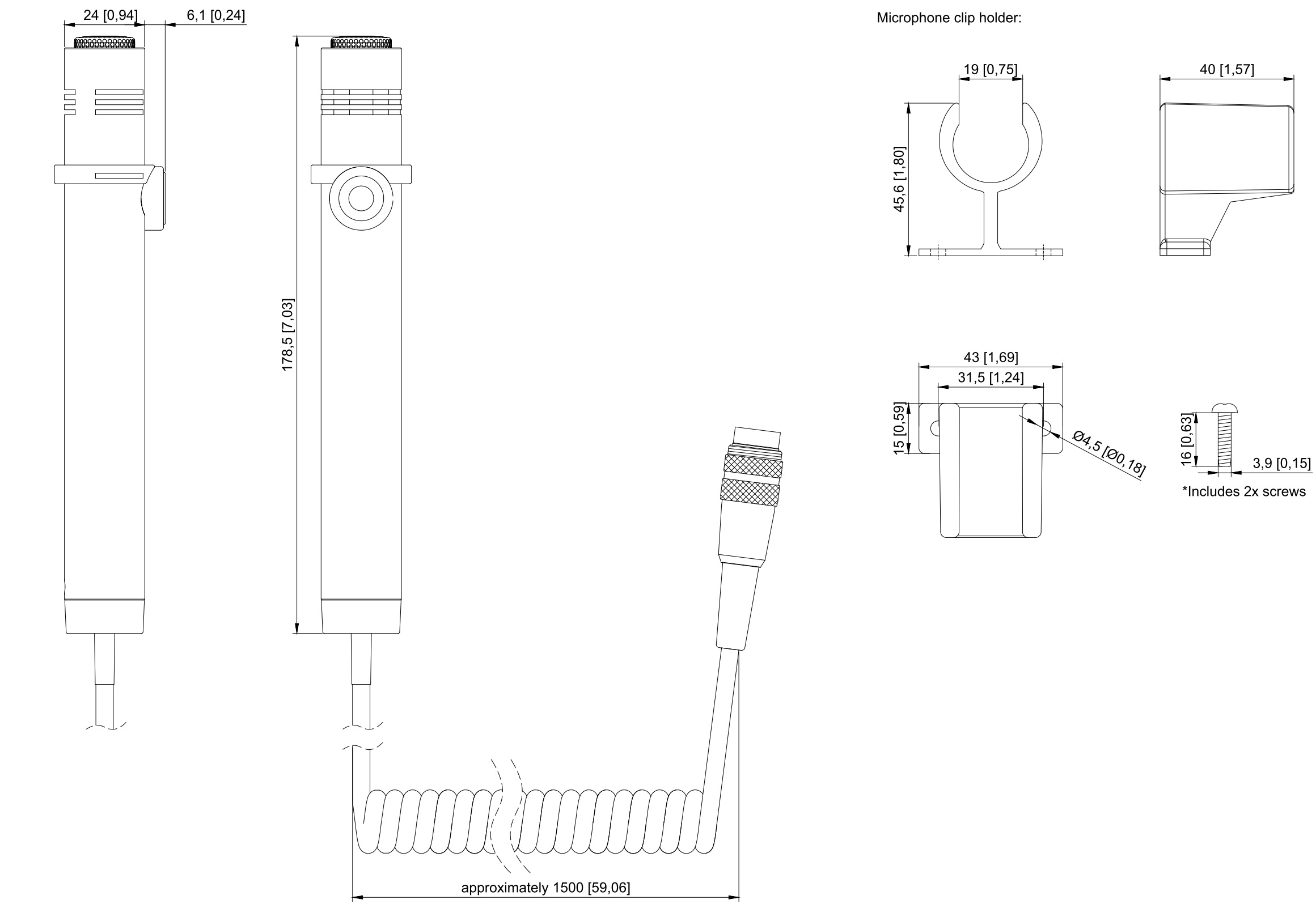

Dimensions	Length 178 mm, Head Ø 29 mm, Body Ø 24 mm
Weight	0.23 kg
Cable	4-wire halogen free spiral cable, 2 Wires shielded, Draw length max. 1.5 m, without connector
Material	Brass. Black
Bracket	Included

ELECTRICAL
Microphone	Dynamic and Noise Cancelling
Frequency range	150 Hz to 12 kHz at -10 dB
Sensitivity	1 mV/Pa (-60 dBV/Pa ± 3 dB)
Impedance	200 Ω ± 20 % at 1 kHz
Directivity	Cardioid (at 1 kHz; 180° -20 dB)
