SPA-AC6-D

SPA-AC6-D-MED

Item Number: 2340110052

Dual Alarm Panel

MED EU Certification icon MED Certification
  • Alarmpanel for dual system
  • Activating abandon, general or manual alarms
  • Alarm reset button
  • Replaceable text label for each button
  • Separate Emergency button (EMS) for PA-message
  • Hinged transparent protecting cover for all buttons
  • To be used together with SPA-M6D
  • Flush mounting, back box for wall mounting is available
  • Buttons backlight with green illumination

The alarm panel can start three alarms and emergency message in a SPA-V2 public address and general alarm dual system.

General

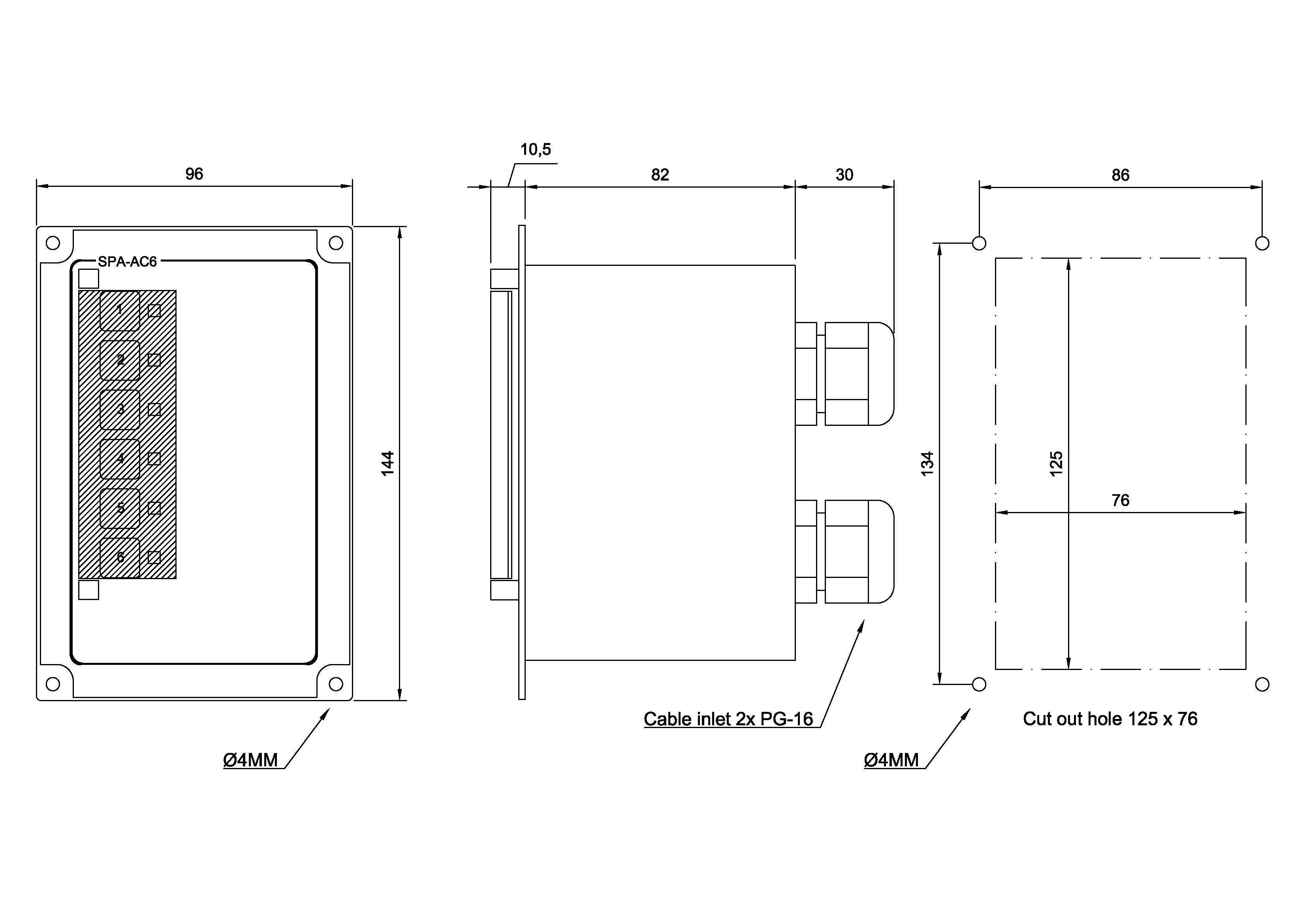

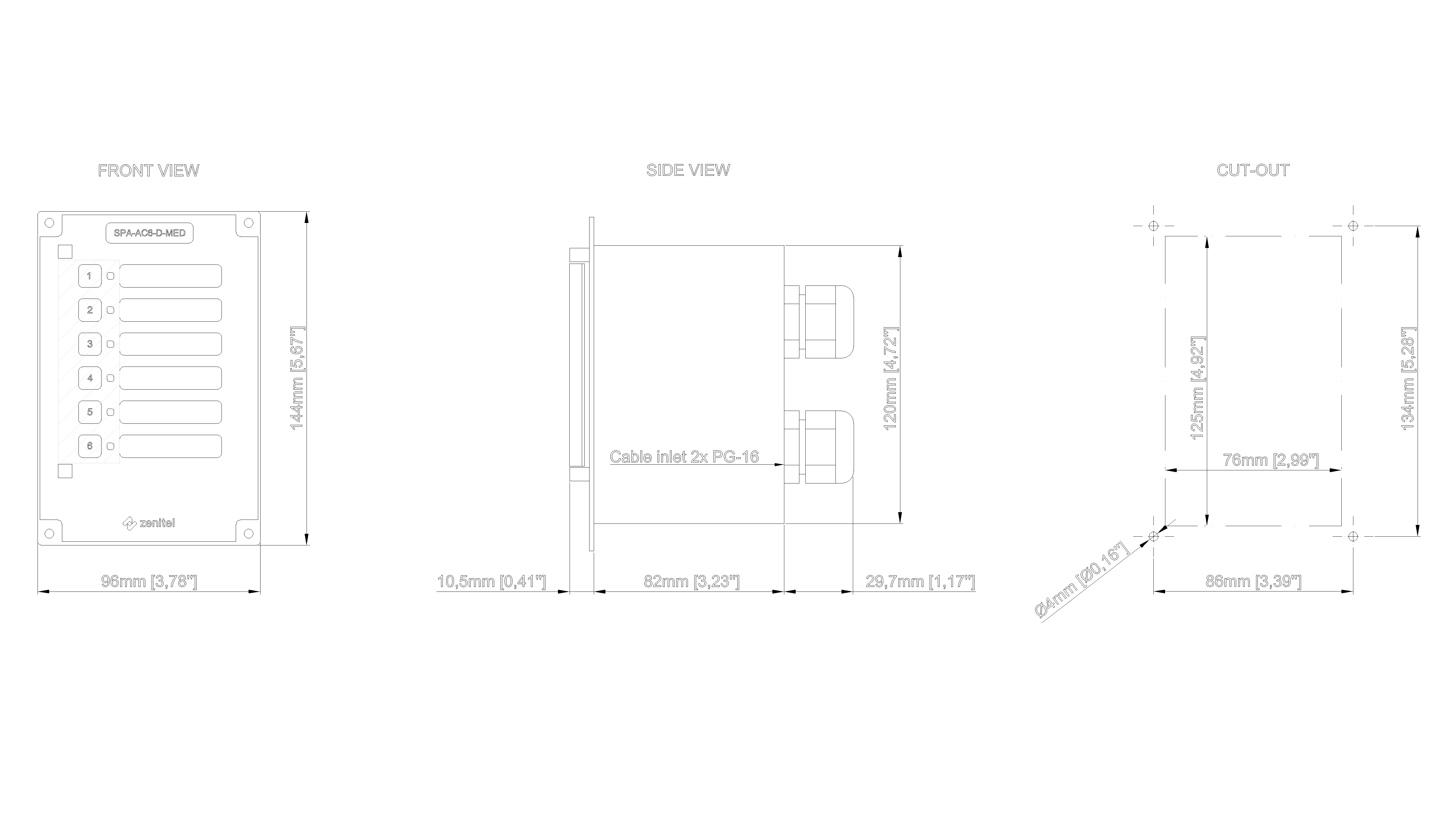

Size (WxHxD) 96 x 144 x 82
Weight 0.4 kg
Material Black anodized aluminium
Mounting Flush, wall with use of back box
Connections Plugable screw terminals for 2.5 mm2 cable
Cable glands 2 x PG-16
Cable size 6 x 2 x 0.75mm2
IP-rating IP-44
Operating temperature -15°C to +55°C
EN60945 environmental category Protected
Compass safe distance 0.35 m
