SPA-PROG4-RDF

SPA-PROG4-RDF

Item Number: 3005010172

Entertainment program selector dual failsafe.

  • Selector for 4x 100V entertainment programs
  • PA input 100V from dual A-B system
  • PA override 24VDC input failsafe from dual A-B system and for single system by DIP switch
  • 2x common outputs 100V for dual A-B system



General

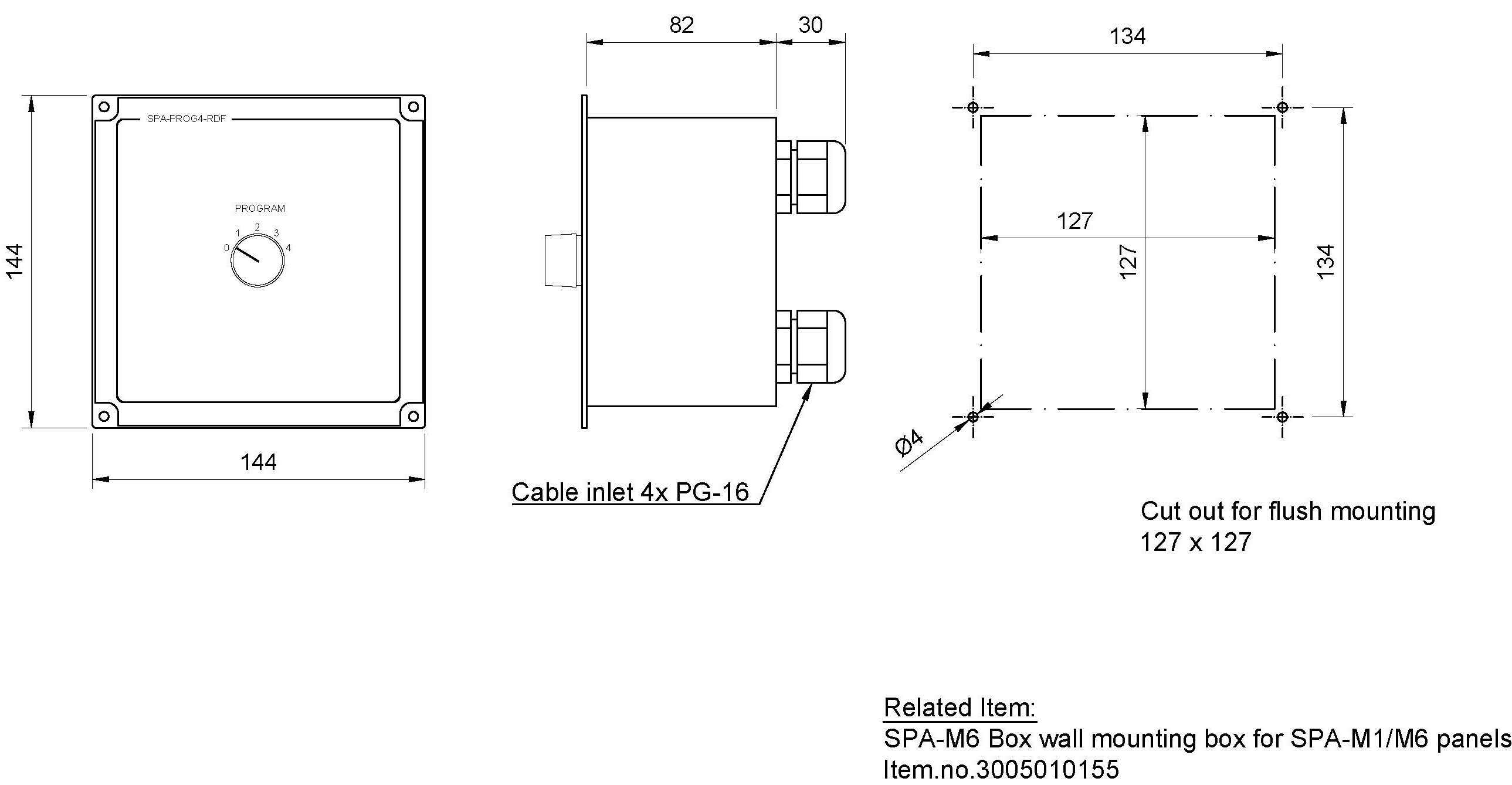

Size (WxHxD) 144 x 144 x 82mm
Weight w/microphone 0.4 kg
Material Black anodized aluminium
Mounting Flush, wall with use of back box
Connections Plugable screw terminals for 2.5 mm2 cable
IP-rating IP-22
Environmental Condition Protected

SPA M6 Box

SPA-M6BOKS

Wall-mount box for SPA-M1/M6 and VM15/50-RD panels

Date Name Category Size Document
13.11.2023 SPA-V2 RINA Type Approval Certificate - ELE219123XG Certificate 1.3 MB Download
31.07.2023 MD-SDoC-3005010172-IHM-8003-41808-149112 Declaration 72.19 KB Login to download
7.04.2020 Declaration of Conformity SPA-V2 Declaration 72.73 KB Download
9.03.2020 A100K10371 SPA-V2 User Manual Manual 1.61 MB Download
18.09.2019 3005010172_SPA-PROG4-RDF_rev00.zip CAD 2D 266.66 KB Login to download
