Slave Clock 300MM TCM, Flat glass

  • Anodised aluminium housing and black hour and minute hands. Option with second hands- item no 2310601001. The hands are protected by a flat glass and the clock is to be surface-mounted
  • DCF format with time zone adjustment
  • 2 wire bus connection w/ power and serial time code

The analogue clock for wired DCF Time-Code from Marine Master Clock provides the possibility to create a time distribution system, with high accuracy and high reliability. The clock is intended for connection to a 2-wire bus which combines power supply and serial Time-Code A built in microprocessor receives the Time Code, reads the position of the hands, and sets the clock to correct time. The Time-Code, built up according to the DCF-format, contains information about year, month, day hour and minute. At each minute shift seconds are synchronised as well. The transmission speed is 1 bit/second. 24VDC power supply for the built in electronics is combined with the Time-Code. The clock is intended for time zone adjustment from a Marine master clock.

General

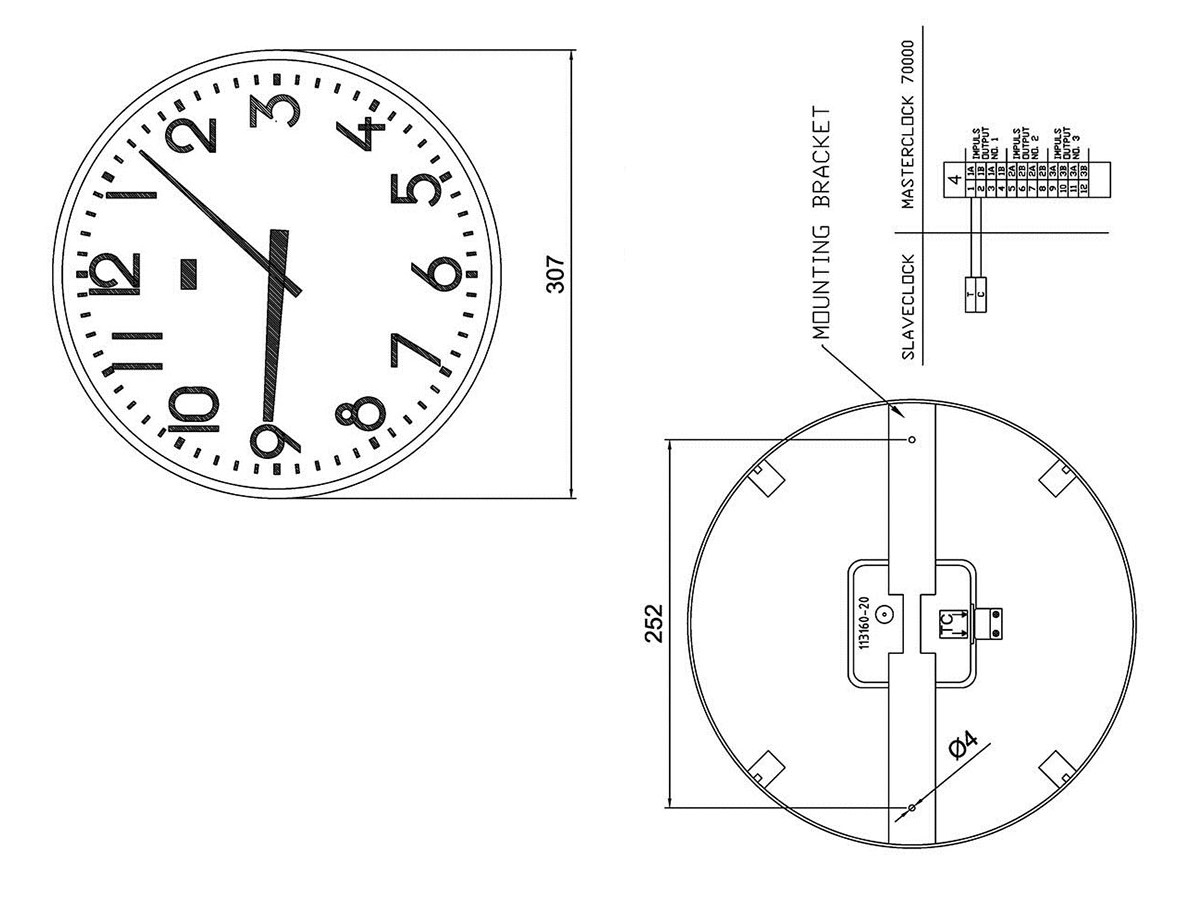

Mounting Surface mounting with bracket
Housing Anodized aluminium
Colour Aluminium, white face, black hands, numerals and marks
Dimensions (mm) Ø300 x 58D
Connection 2 wire
Connection voltage 24VDC combined with serial Time-Code
Type of time code DCF-format with Time zone adjustment.
Microcontroller PIC16F628
Temperature range -20°C to +50°C
Power consumption 15 mA
Product variants
2310601002 Slave clock 300MM NTP PoE
2310601050 Slave clock 400MM NTP PoE

Date Name Category Size Document
11.09.2023 MD-SDoC-2310601003-IHM-8003-46266-154300.xlsx Declaration 72.15 KB Login to download
1.12.2022 Declaration of Conformity - 2310601012 - 2310601003 - 2310601030 Analog Slave Clocks.pdf Declaration 513.79 KB Download
1.12.2022 2310601000 2031580-10 Slave-Clock 300 TCM CAD 2D 152.18 KB Login to download
