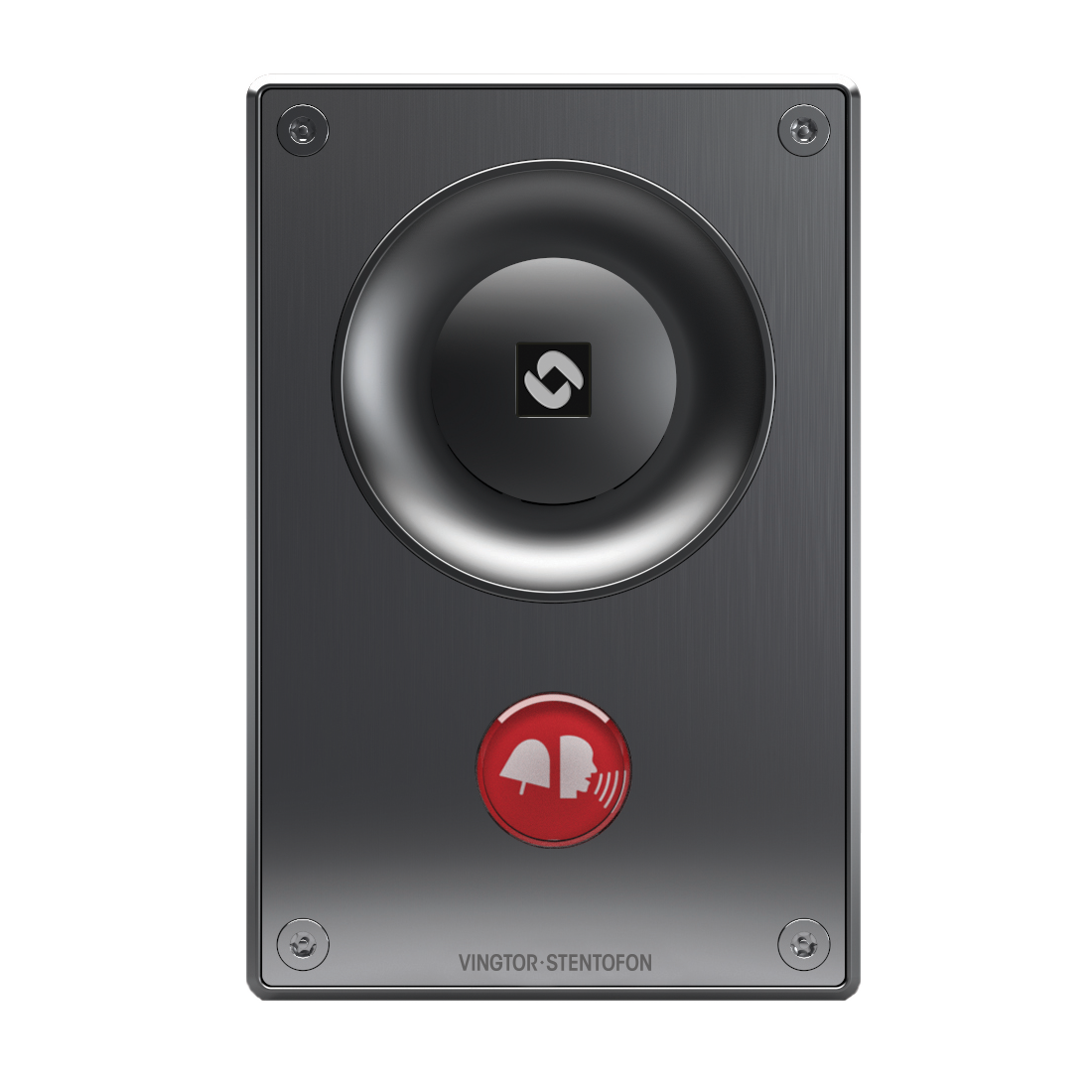

TCAS-2

Analog Intercom

View DataSheet

Item Number: 1008114020

Last modified

09.07.2020

Français

Got any questions? Contact us for more information.

Contact

Name *

Email *

Phone

Company *

Country *

State *

Province *

Message *

Leave this field blank

Related Information

Description

Audio Presence - crystal clear audio
Analog MEMS microphone
Unique 3D speaker grille design
Scandinavian functional design
Dirt, dust and water resistant - rating IP-66
Built to last with robust die cast aluminium frame - rating IK 10
Stainless steel front plate with one button
Ideal for Building Security and Public Environments

All analog stations in the Turbine series offer stunning audio quality. AlphaCom’s advanced switching technology, loud volume, wide frequency range and our unique 3D speaker grille design are some of the factors contributing to this. We also put great pride into selecting the very best components like the new analog MEMS microphone for the stations.

Turbine comprises a wide range of stations for many different purposes, with some features in common. They are all designed for the most demanding environments where communication is critical. All electronics are covered by a 3 mm thick, die cast aluminum frame. This frame is even further reinforced by a faceplate in either stainless steel or Plexiglas. All stations are dust proof and water resistant, both when flush and surface mounted – with ingress protection rating IP-66. All stations are vandal resistant with poke protection and impact resistance ratings between IK 08 and IK 10.

The station can be placed up to 4 km from the AlphaCom server/exchange without the need for any local power source. The station uses the conventional 4-wire interface, receiving both power and audio in the same cable. To provide maximum availability the station comes with advanced supervision functions. The station line test will detect whether any faults are in the network or station electronics. In addition the station supports tone test, i.e. testing the complete transmission path including microphone and speaker. The status of the stations is reported to AlphaWeb as well as to 3rd party management systems using SNMP, Syslog or Microsoft OPC .

Turbine follows in the grand tradition of Scandinavian design appreciated by designers the world over. The station’s strong identity lies in the speaker grille. It is not only designed for aesthetic reasons, but also for audio quality and protection – with form following function. And there can be little doubt as to its function: loudspeaking hands-free communication.

Specifications


AUDIO
SPL rated power at 1m	85 dB
Microphone technology	Analog MEMS, omni directional microphone
Frequency range	200 - 10000 Hz


HARDWARE
Connectors	Tool less, spring loaded, vibration proof terminals
Power	Powered from exchange
Power consumption	1W (depending on volume)
Call indication	LED integrated in large button


CONSTRUCTION
Dimensions (HxWxD)	180 x 120 x 57 mm / 7.1” x 4.7” x 2.2”
Dimensions after flush mount	180 x 120 x 24 mm / 7.1” x 4.7” x 0.9”
Dimensions with on wall box	180 x 120 x 86 mm / 7.1” x 4.7” x 3.4”
Weight	0.8 kg / 1.8 lbs
Faceplate material	3 mm / 0.12” stainless steel - AISI 304
Base/frame material	3 mm / 0.12” aluminum alloy - A413.0, AlSi12Fe, painted
Electronics cover material	Polycarbonate (translucent)
Gasket material	Silicone rubber
Fastening bracket material	SECC steel
Button material	3 mm / 0.12” Polycarbonate (transparent)
Button travel length	1.25 mm
Button activation force	350 gf
Button push-cycles before failure	300 000

Loudspeaker poke protection, large diameter object	3D cast aluminum speaker grille
Loudspeaker poke protection, small diameter objects	Stainless steel mesh, acoustically transparent


ENVIRONMENT AND COMPLIANCES
IP rating	IP-66, tested according to EN 60529 (applies when mounted in TA-1 back box)
IK rating	IK 10, tested according to EN 62262
Operating temperature range	-25° to 70° C / -13° to 158 ° F
Storage temperature range	-25° to 70° C / -13° to 158 ° F
Realtive humidity	< 95% not condensing
Corrosion	Salty mist. tested according to EN60945
Vibration	Tested according to EN60945
UV-resistant	Yes
EMC	CE and FCC Part 15
Compliances	IEC/EN 60945 Marine Equipment, IEC/EN 61000-6 Light and heavy industry, IEC/EN 50486 Equipment for use in door-entry systems


OTHER SPECIFICATIONS
Supervision	Line supervision, Tone test (manual and automatic), Station status in AlphaWeb
Country of manufacture	Poland

Dimensions

TCAS dimensions

Accessories

Date	Name	Category	Size	Download file
08.02.2021	RoHS Declaration 2021	Declaration	3.24 MB	Download
07.07.2020	A100K11258 TCAS Turbine Compact Analog Mounting Manual	Manual	618.02 KB	Download
11.02.2019	Declaration of Conformity 1008114020-CE TCAS-2	Declaration	137.59 KB	Download
26.08.2015	10081140XX TCAS-X	CAD 2D	234.46 KB	Log in / Register to download
12.08.2015	Appendix to Type Approval Certificate DNV-GL Exigo	Certificate	164.94 KB	Download
