BS-21 Beacon

BS-21

Beacon, 24-48VDC

Item Number: 2340200031

Last modified

25.03.2022

Related Information

Description

Specifications


Description
Material / Color	Aluminum alloy/RAL 7035
Mounting	Screws
Termination	Screw terminal
IP-rating	66
Max. / min. amb. temp	58°C/-50°C
Rated energy	21 Joule
Dome	Borisilicate glass
Lamp type	Xenon
Cable entries	M20
Weight	2.4 kg
Flash rate	1 Hz
Max voltage DC	48V
Rated current 24V Dc	Average: 0,625A; Max: 2,9A.
Rated current 48V Dc	Average: 0,375A; Max: 1,9A
Luminous intensity	Between 300 and 400 candelas

Dimensions

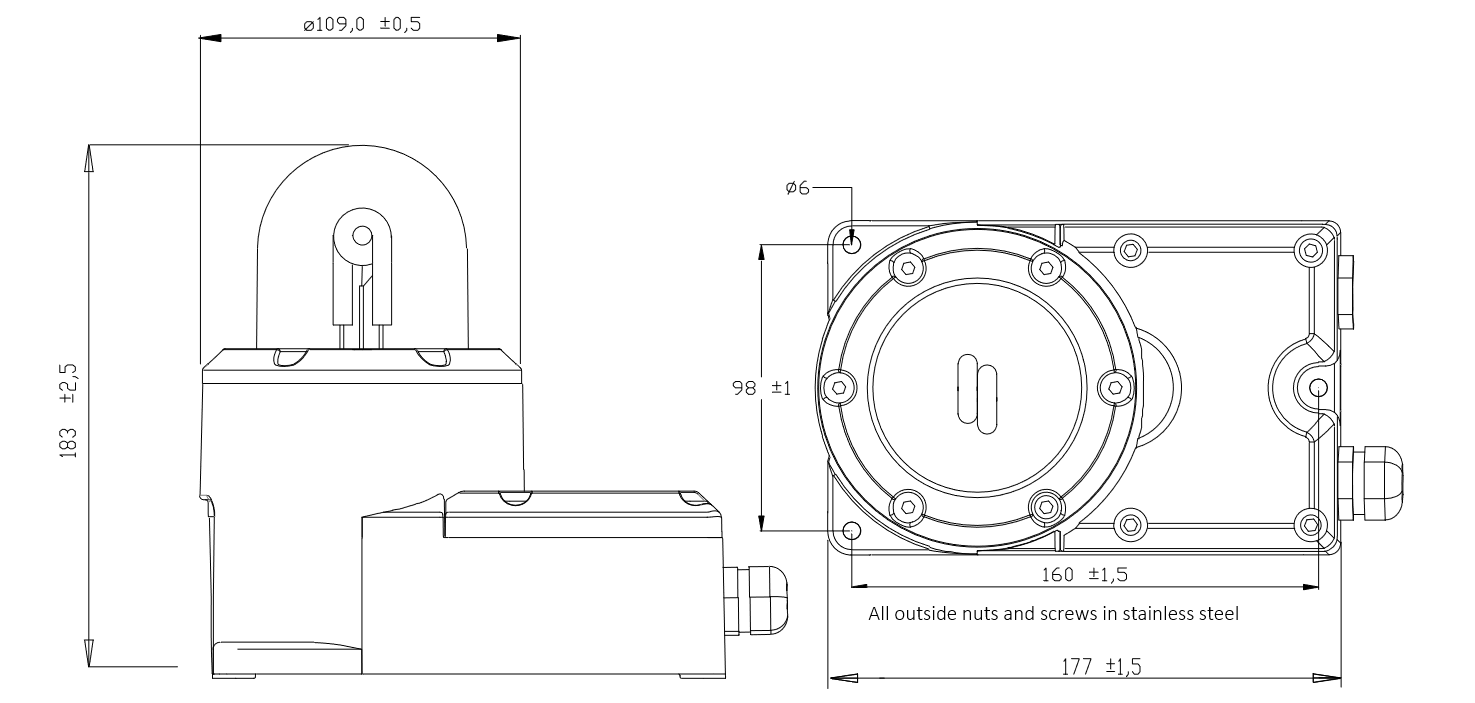

B-21 Dimensions

Documents

Date	Name	Category	Size	Download file
25.03.2022	Material Declaration - BS-21 - 2340200031	Declaration	16.85 KB	Log in / Register to download
24.01.2022	SDoC-8003-26731.pdf	Declaration	43.56 KB	Log in / Register to download
11.12.2020	DNH_EU_DoC.pdf		201.2 KB	Download
10.12.2020	BS-21_2340200031_datasheet.pdf		240.35 KB	Download
