IP and SIP Intercom

TCIS-6

Item Number: 1008111060

IP and SIP Intercom

  • General-purpose intercom station
  • Black thermoplastic front plate with address book scrolling
  • Superior audio quality with advanced audio processing
  • High sound pressure levels  with automatic volume adjustment
  • Dirt, dust and water resistant
  • High impact protection rating
  • ONVIF Compatible
  • Supports wide set of IP and networking standards
Door Intercom
SIP
Alcatel-Lucent Certified Alcatel-Lucent Certified
Avaya Certified Avaya Certified
Cisco Certified CISCO Certified
NEC certified NEC Certified
UL Mark UL Certified Intercom
Turbine
IC-Edge
alphacom_40x40 ICX-AlphaCom
IP66 IP66
IK07 IK08
Automatic Volume Adjustment Automatic Volume
HD Voice HD Voice
Automatic Gain Control Automatic Gain Control
Active Noise Cancelling Active Noise Cancelling
Voice Activity Detection Voice Activity Detection

This Intercom station utilizes the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Active Noise Cancellation, MEMS microphone, a 10W Class D amplifier and our unique speaker grille design. These features, in conjunction with our 70+ years of experience with acoustic technology are only a few of the many factors that contribute to our superior audio quality.

See also: additional documentation on wiki.zenitel.com

AUDIO
Internal speaker amplifier 10 W class D
Internal speaker 10 W
Microphone technology Digital MEMS, omnidirectional microphone
Audio technology Modes: Full open duplex, switched open duplex
Adaptive jitter buffer
Custom Ringing Tone
Audio Mixing – Conversation and Group Call
Automatic gain control (microphone)
Sound Level Detection / scream alarm (in AlphaCom mode)
Codecs G.711, G.722, G.729
Frequency range, G.722 Codec 200 Hz – 7000 Hz
SPL peak power at 1m in open duplex 95 dB
SPL peak power at 1m in half duplex 105 dB
SPL peak power at 1m in program distribution and announcements 105 dB
Noise cancelling Yes
Automatic Volume Control (AVC) Yes
Acustic Echo Cancellation (AEC) Yes
HARDWARE
Ethernet connector 1 x RJ 45
All other connectors Tool less, spring loaded, vibration proof terminals
General inputs and outputs 6 (configurable)
Outputs 12mA as LED drivers
Change-over relay (NO+NC+COM) SELV
Power options PoE or 24 VDC (16 – 48 V)
PoE (power over Ethernet) IEEE 802.3af standard
External power supply 24 VDC (16 – 48 V)
Power consumtion Idle 1.8W, max 12W (depending on volume)
Audio line out / induction loop signal 0 dBV
Call indication Icons/colors for hearing impaired
Door open indication Icons/colors for hearing impaired
Display technology PMOLED
Display contrast 20000:1
Viewing angle 160 deg
Display brightness 120 cd/m2
Display lifetime 50 000 hours/5 years
CONSTRUCTION
Dimensions (HxWxD) 180 x 120 x 73 mm / 7.1” x 4.7” x 2.9”
Dimensions after flush mount 180 x 120 x 24 mm / 7.1” x 4.7” x 0.9”
Dimensions with on wall box 180 x 120 x 86 mm / 7.1” x 4.7” x 3.4”
Weight 0.8 kg / 1.8 lbs
Faceplate material 3 mm / 0.12” PMMA, colour printed on back side
Base / frame material 3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted
Electronics cover material Polycarbonate (translucent)
Gasket material Silicone rubber
Fastening bracket material SECC Steel
Button material 3 mm / 0.12” Polycarbonate (transparent)
Button travel length 1.25 mm
Button activation force 350 gf
Button push-cycles before failure 300 000
Loudspeaker poke protection, large diameter object 3D cast aluminum speaker grille
Loudspeaker poke protection, small diameter objects Stainless steel mesh, acoustically transparent
NETWORKING AND PROTOCOLS
Protocols IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
LAN protocols Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x)
Management and operation HTTP/HTTPS (Web administration and configuration) DHCP and static IP. Remote automatic software upgrade. Centralized monitoring.
Advanced supervision functions E.g. network test, tone test, status reports, uptime, button status.
SIP support RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
DTMF support RFC 2833, RFC 2976 (SIP info)
ENVIRONMENT AND COMPLIANCES
IP rating IP-66 (applies when mounted in TA-1 back-box)
IK rating IK 08
Operating temperature range -40° to 70° C
Storage temperature range -40° to 70° C
Realtive humidity < 95% not condensing
Corrosion Salty mist, tested according to EN60945
Vibration Tested according to EN60945
UV-resistant YES
EMC CE and FCC Part 15 EN 50121-3-2 Railway application EN 50121-4 Railway application UN Regulation 10, revision 4 + Corr.1 + Amend.1
Compliances IEC/EN 60945 Marine Equipment IEC/EN61000-6-1 and IEC/EN61000-6-3 (light industry) IEC/EN 50155 Railway Application * IEC/EN 50486 Equipment for use in audio video door-entry systems * With additional conformal coating Requires use of EN 50155 approved PoE switch
Certifications UL 60950-1, cUL 60950-1, CB to IEC 60950-1
OTHER SPECIFICATIONS
IP adress information Speaks IP address after system boot
Country of manufacture Poland

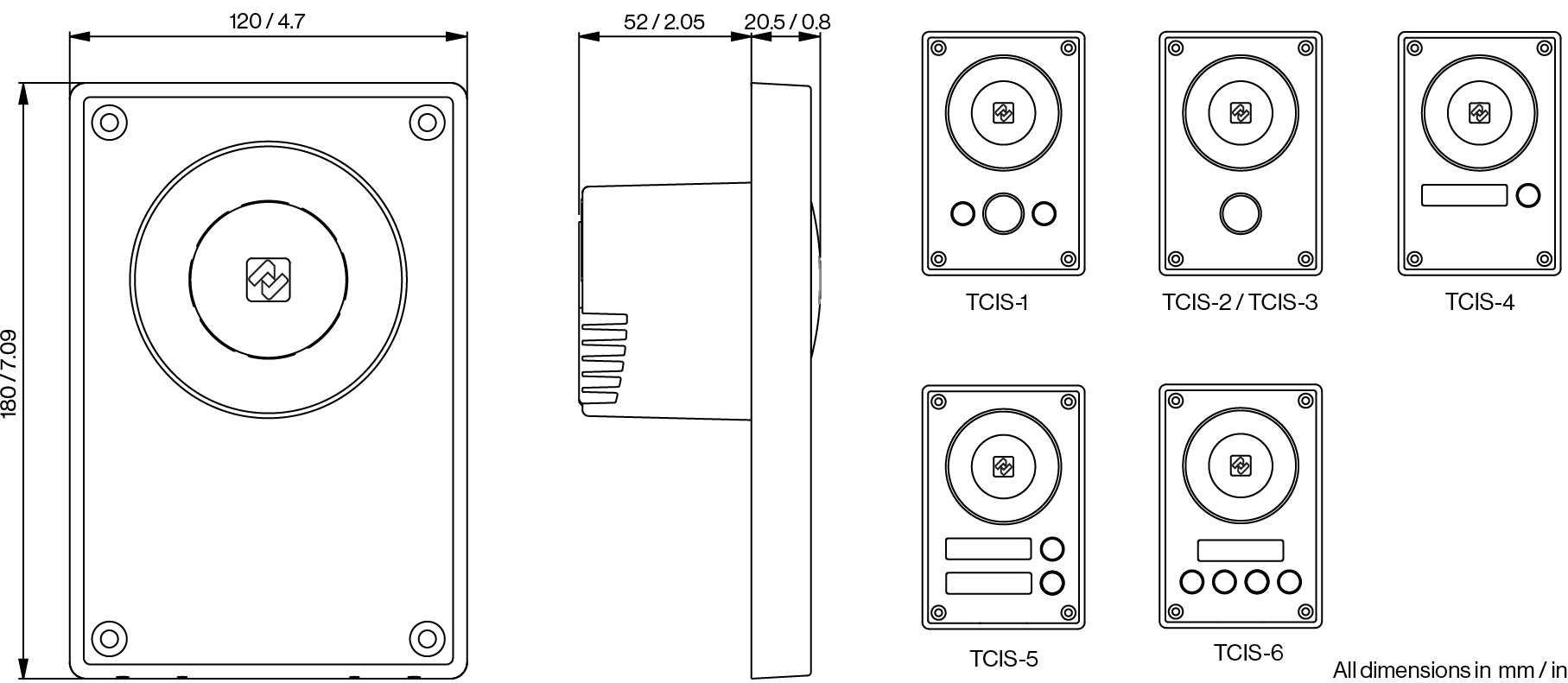

Dimensions Drawing TCIS-x

Turbine Compact Onwall Box

TA-1

Turbine Compact Onwall Back Box

TA-2

US 2-Gang 3½" Deep Backbox

TA-5, Bracket for US 2 GANG Back Box

TA-5

Bracket for US 2 GANG Double Depth Back Box

TA-18

Turbine Compact Flush-Mount Back Box

Ta-14

TA-14

Microphone windshield for TCIS / TCIV
