TCIV-3+

Item Number: 1008315030

IP and SIP Video Intercom

  • Powerful audio technology, including high sound pressure, automatic volume gain control, and noise and acoustic echo cancellation.
  • HD video up to 1080p resolution
  • Wide angle lens
  • High performance hardware platform with 4x Cortex-A53 CPU cores and 512MB LPDDR4 RAM
  • ONVIF Conformant
  • Vandal Resistant Design
  • IP66 - Dirt, dust and water resistant
  • Cybersecurity compliant
  • Can operate in SIP, IC-EDGE and ICX-AlphaCom mode

Video Intercom
Door Intercom
SIP
ONVIF Conformant
UL Mark UL Certified Intercom
IC-Edge
alphacom_40x40 ICX-AlphaCom
IP66 IP66
IK07 IK08
HD Voice HD Voice
Automatic Gain Control Automatic Gain Control
H.264

All IP stations in the Turbine series utilize the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Noise and acoustic echo cancellation, MEMS microphone, a 10W Class D amplifier and our unique speaker grille design. These features, in conjunction with the company's 70+ years of experience with acoustic technology, are just a few of the many factors that contribute to our superior audio quality. The Turbine IP Video Intercom range expands this feature set with wide FoV HD Video, Digital PTZ and support for H.264 and MJPEG.

Audio
SPL peak power at 1m in open duplex 90 dB
SPL peak power at 1m in half duplex 100 dB
SPL peak power at 1m in program distribution and announcement 100 dB
Noise cancelling Yes
Codecs G.711, G.722, G.729
Frequency range, G.722 Codec 200 Hz – 7000 Hz
Audio technology Modes: Full open duplex, switched open duplex
Adaptive jitter buffer
Custom Ringing Tone
Audio Mixing – Conversation and Group Call
Automatic gain control (microphone)
Sound Level Detection / scream alarm (in AlphaCom mode)
Internal speaker amplifier 10 W class D
Internal speaker 10 W
Microphone technology Digital MEMS, omnidirectional microphone
Automatic Volume Control (AVC) Yes
Acustic Echo Cancellation (AEC) Yes
Video
Image Sensor 1/2.5" RGB CMOS
Lens F 2.0, fixed iris
Light Sensitivity Down to 1 lux
Resolution 240 / 480p / 960x720p / 1440x1080p*
Frame Rate Up to 30 FPS in 1440x1080p**
Supported Codecs MJPEG, H.264 **
Digital PTZ Yes
Digital Zoom Up to 2x
Field of View Configurable up to 180 degrees horizontally and vertically
Parallel videostreams 6 (1x SIP H.264, 2x HTTP MJPEG, 3x RTSP sessions)
* MJPEG does not support 720p and 1080p resolution.
** 30 FPS is only supported in H.264 mode, while MJPEG is limited to 10 FPS.
*** AlphaCom mode supports only RTSP H.264 mode, while other modes support SIP H.264.
Hardware
Ethernet connector 1 x RJ-45
All other connectors Tool less, spring loaded, vibration proof terminals
General inputs and outputs 6 (configurable)
Outputs 12mA as LED drivers
Change-over relay (NO+NC+COM) SELV
Power options PoE, PoE+
PoE (Power over Ethernet) IEEE 802.3af standard, IEEE 802.3at
Power consumption Idle 3.5W, max 12W (depending on volume)
Audio Line out / Induction loop signal 0 dBV
Button backlight LED
Call indication Icons/colors for hearing impaired
Processor/Chipset
CPU cores 4 x Cortex-A53
CPU Clock Speed 1.6 GHz
RAM 512 MB LPDDR4
Flash 1 GB
Video encoder MJPEG, H.264
Dual Image Yes
Construction
Dimensions (HxWxD) 180 x 120 x 73 mm / 7.1” x 4.7” x 2.9”
Dimensions after flush mount 180 x 120 x 24 mm / 7.1” x 4.7” x 0.9”
Dimensions with on wall box 180 x 120 x 86 mm / 7.1” x 4.7” x 3.4”
Weight 1 kg / 2.2 lbs.
Faceplate material 3 mm / 0.12” PMMA, color printed on backside
Base / frame material 3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted
Electronics cover material Polycarbonate (semi translucent)
Gasket material TPV
Fastening bracket material SECC Steel
Button material 3 mm / 0.12” Polycarbonate (transparent)
Button travel length 1.25 mm
Button activation force 350 gf
Button push-cycles before failure 300 000
Loudspeaker poke protection, large diameter object 3D cast aluminum speaker grille
Loudspeaker poke protection, small diameter objects Stainless steel mesh, acoustically transparent
Anechoic Design Open flow anechoic design eliminates "standing waves"
Networking & Protocols
Protocols IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
LAN protocols Power over Ethernet (IEEE 802.3 a-f), Power over Ethernet (IEEE 802.3at), Network Access Control (IEEE 802.1x)
Management and operation HTTP/HTTPS (Web configuration) DHCP and static IP. Remote automatic software upgrade. Centralized monitoring.
Advanced supervision functions E.g. network test, tone test, status reports
SIP support RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
DTMF support RFC 2833, 2976 (SIP info)
Integration and API AlphaCom, Scripting (plugins)
Environmental
IP rating IP-66, tested according to EN 60529 (applies when mounted in TA-1 back-box)
Operating temperature range -40° to 70° C / -40° to 158 ° F
Storage temperature range -40° to 70° C / -40° to 158 ° F
Relative humidity < 95% not condensing
UV-resistant Yes
EMC CE and FCC Part 15
Certifications
ONVIF Conformant Profile S
Other Specifications
IP address information Speaks IP address after system boot
Country of manufacture Poland
Warranty 2 Years standard warranty, extendible up to total of 5 years (additional fee)

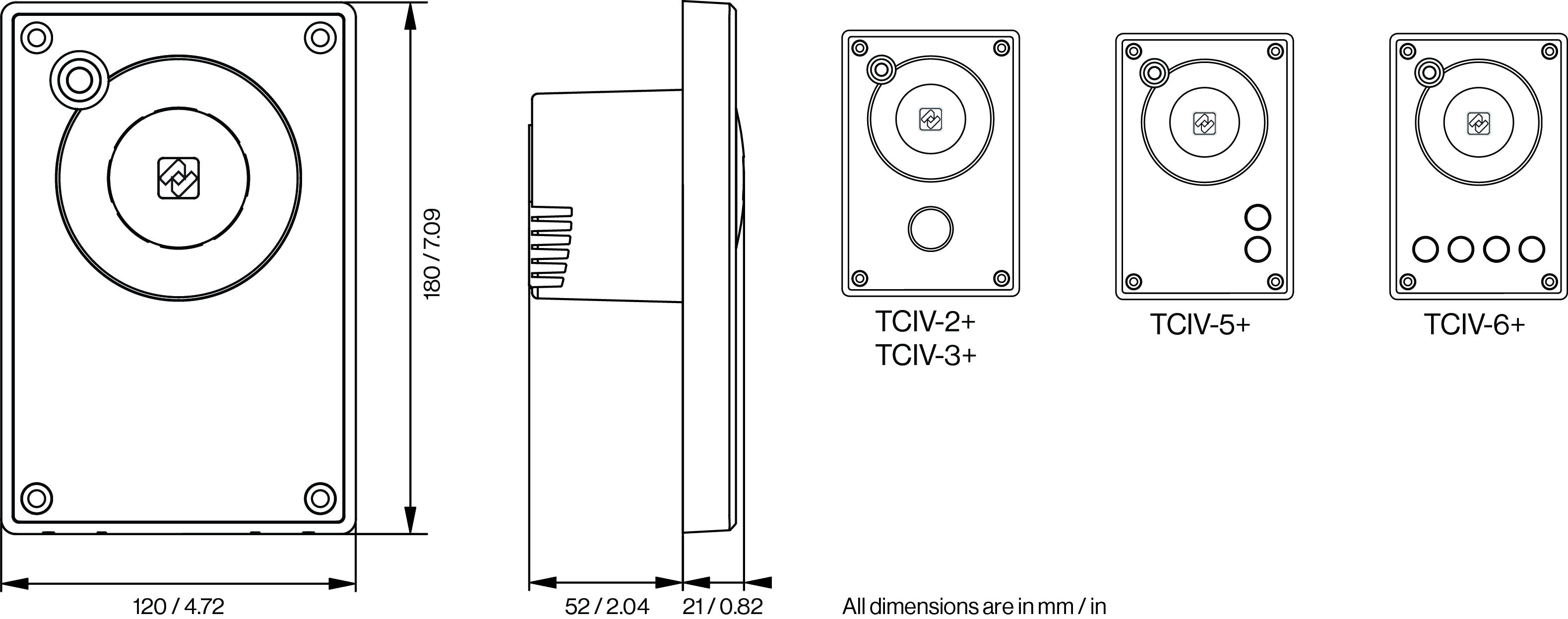

TCIV-x+ Dimensions
